Vesta CLMT-1ZW Quick Start Manual

Clamp Meter (CLMT-1ZW)
CL-Meter-ZW is a Z-Wave Clamp Meter aim to monitor and report the total amount of electricity uses in your
facility by connecting the clamp onto the power cable.
The Energy Meter is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network.
Z-Wave is a wireless communication protocol that uses a low-power RF radio. By taking advantage of the
Z-Wave mesh network, commands can be routed to their destination via intermediary "listening" Z-Wave
products.

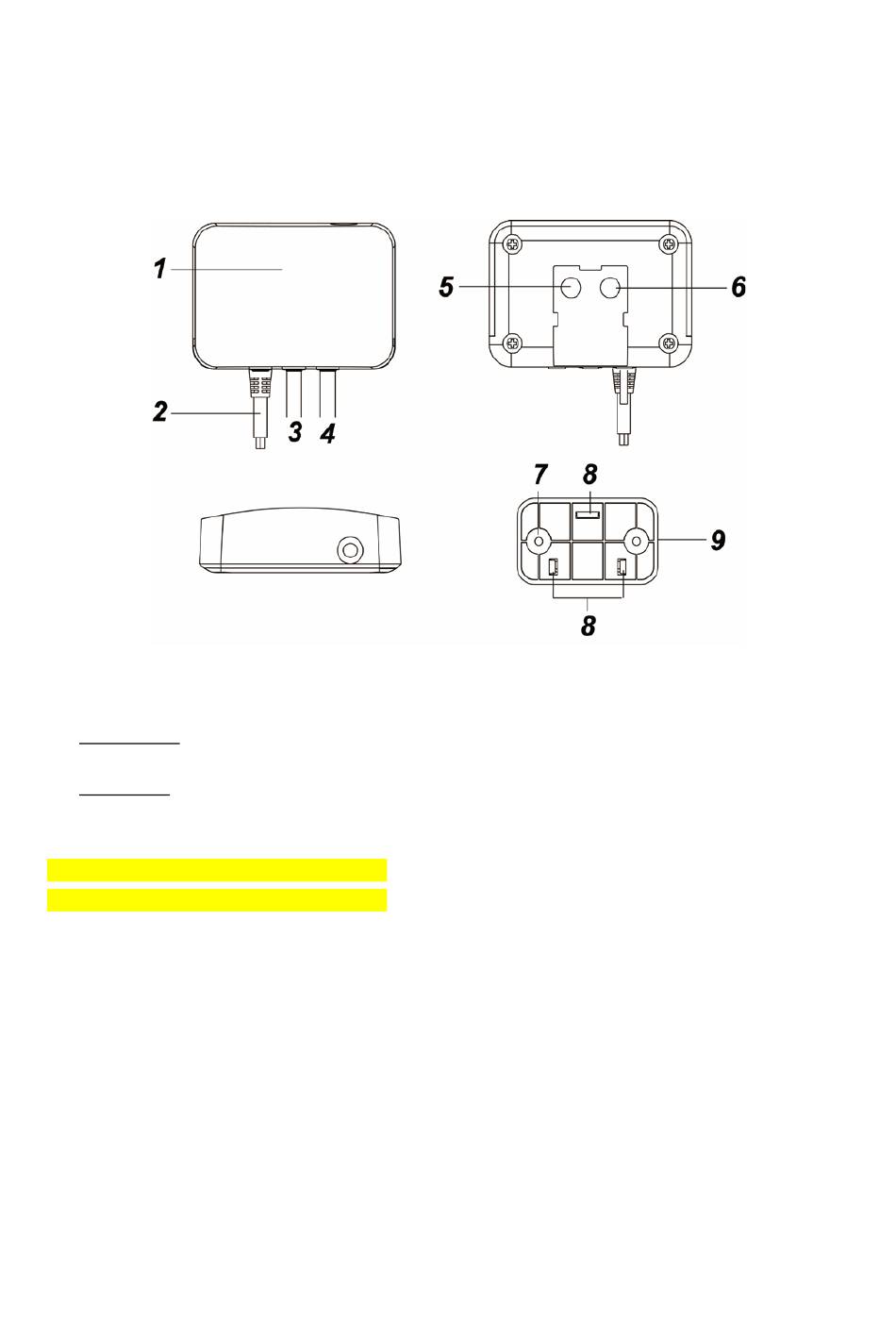

Parts Identification

1. Red LED
Flashes once:
When Clamp Meter is transmitting a signal.
Flash Twice:
The Clamp Meter has successfully joined a Z-Wave network.
2. AC Input cable
3. Current Transformer Cable (CT2)
4. Current Transformer Cable (CT1)
5. Function Button
-Press the button once to report the value of the meter to the Z-Wave network.
-Press the button 3 times within 1.5 seconds to transmit a learn code.
-Press and hold the button for 10 seconds to factory reset the Clamp Meter.
6. Reserved
7. Mounting Hole
8. Mounting Hooks
9. Mounting Bracket
