Summary of Contents for AJ 31045

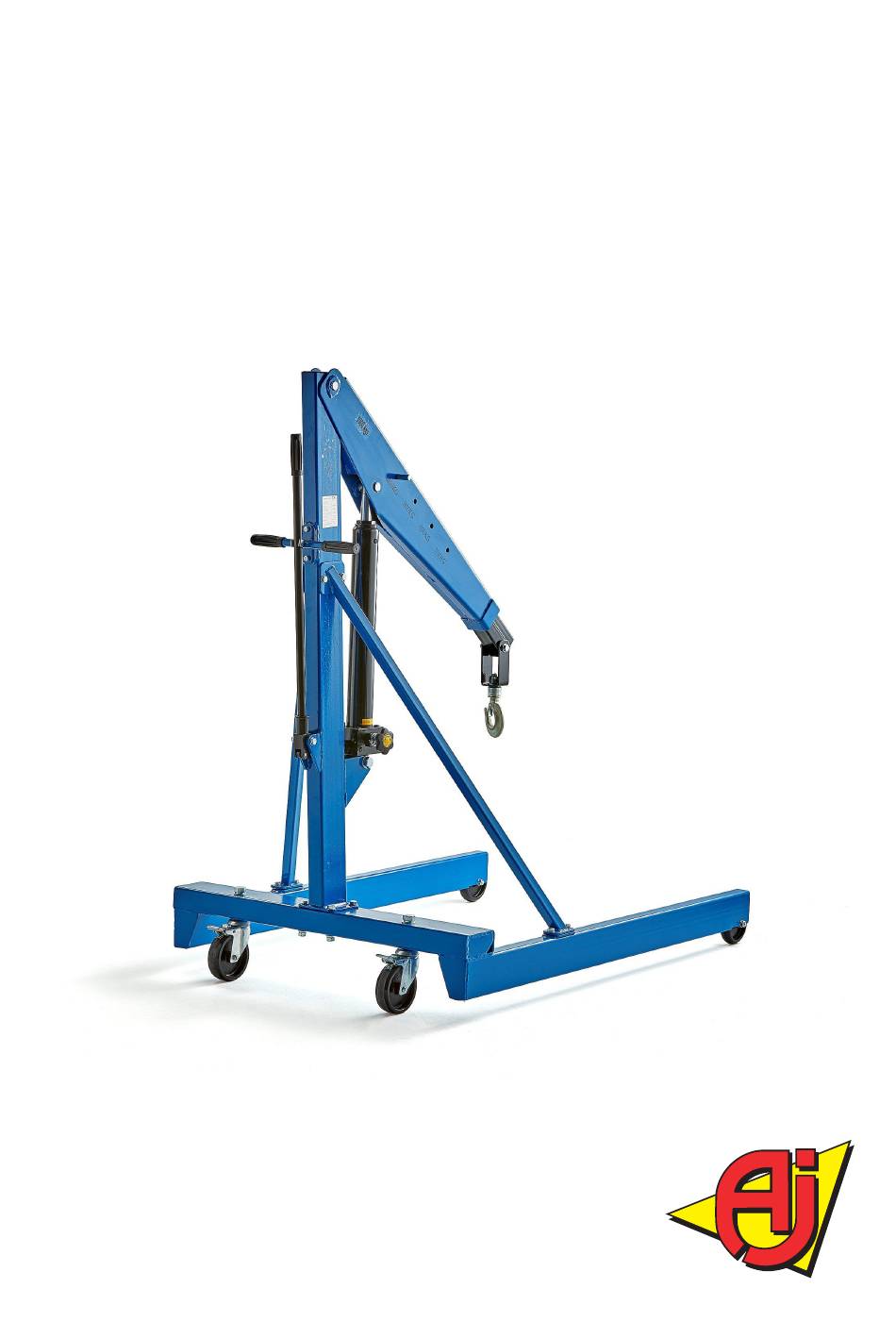

- Page 1 Assembly instructions [31045] Folding workshop crane Version 1.0...
- Page 2 Assembly instructions Step 2 Fig.2 Take out 6A# (Steering wheel) from spare parts carton N#, loose 15# (Screw), 14# (Spring Washer), 13# (Washer), align 6A# (Steering wheel) and 5# (Base) hole, assemble 13# (Washer), 14# (Spring Washer), 15# (Screw) according to Fig.
- Page 3 Step 4 Step 6 Fig.4 Fig. 6 Take out 16# (Support) from the package, take out 21# (Screw), 1# (Nut), Pull 51A# (Ram assembly) piston rod upwards to exposure the hole, 2# (Washer) from the spare parts carton N#. align 33# (Boom) and 51A # (Ram assembly) piston rod hole, then assemble Loose 8# (Screw), 2# (Washer), 21# (M10X80 Screw), 8# (M10X20 Screw) on 55# (Pin) and 52#(Spacer).
