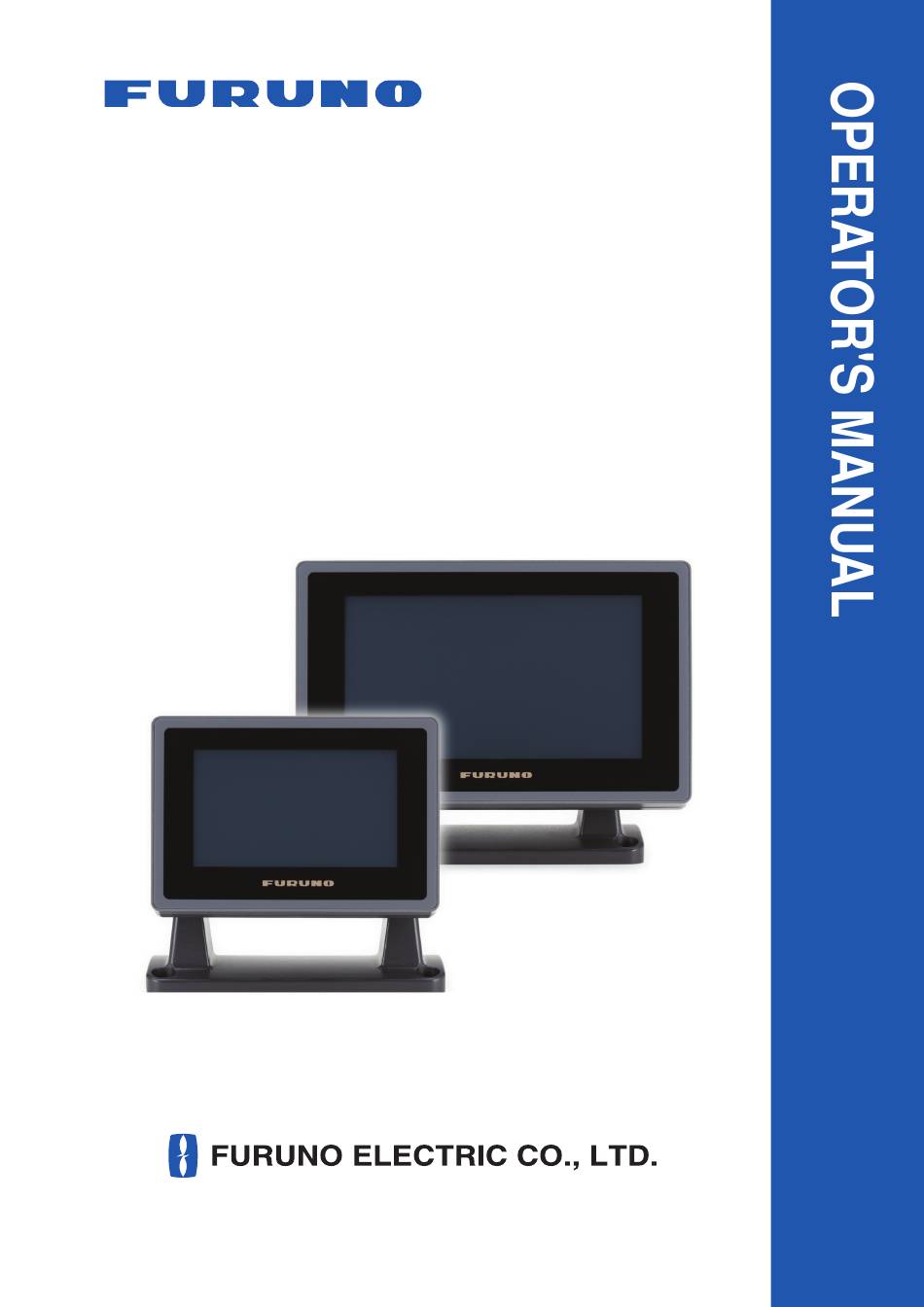

Page 1 GPS/WAAS PLOTTER GP-25 GP-27 Model www.furuno.com...
Page 2 IMPORTANT NOTICES General • This manual has been authored with simplified grammar, to meet the needs of international us- ers. • The operator of this equipment must read and follow the descriptions in this manual. Wrong op- eration or maintenance can cancel the warranty or cause injury. •...
Page 3 SAFETY INSTRUCTIONS, NOTICES The operator must read the safety instructions before attempting to operate the equipment. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, CAUTION could result in minor or moderate injury.
Page 4 Follow the compass safe distances Connecting a non-rated source voltage shown below to prevent interference to may lead to fire or equipment failure. a magnetic compass. Standard Steering compass compass GP-25 0.35 m 0.30 m GP-27 0.55 m 0.35 m...
Page 5 SAFETY INSTRUCTIONS, NOTICES NOTICE NOTICE NOTICE NOTICE When connecting the wire or after connect- When updating the program, save the ing the wire, fix the wiring to ensure no backup data containing points and other force is applied to the connector body and information to the SD card to ensure data terminal parts.
Page 6 TABLE OF CONTENTS FOREWORD ......................... viii SYSTEM CONFIGURATION ..................ix EQUIPMENT LISTS......................x OPERATIONAL OVERVIEW .................1-1 1.1 Controls ........................1-1 1.2 How to Turn the Power On or Off ................1-5 1.3 How to Adjust the Display Brilliance ................1-5 1.4 Plotter Display ......................1-6 1.5 How to Tap an Object....................1-7 1.5.1 Pop-up menus ....................1-7...
Page 7 TABLE OF CONTENTS 3.4.3 Points List pop-up menu ................3-5 3.5 How to Edit a Point..................... 3-5 3.5.1 How to edit a point from the pop-up menu ............. 3-5 3.5.2 How to edit a point from the Points List............3-6 3.6 How to Move a Point ....................
Page 8 TABLE OF CONTENTS MEMORY CARD OPERATIONS ................8-1 8.1 The Memory Card Screen ..................8-1 8.2 How to Initialize SD Cards..................8-1 8.3 How to Eject an SD Card....................8-2 8.4 How to Save Data to an SD Card................8-2 8.5 How to Rename Files on an SD Card ................8-3 8.6 How to Delete Files from an SD Card ................8-3 8.6.1 How to delete individual files from an SD card..........8-3...
Page 9 Thank you for considering and purchasing FURUNO equipment. Features The GP-25 and GP-27 provide a totally integrated GPS receiver and color video plotter. The built- in GPS receiver provides highly accurate position, course and speed information. The compact display unit and antenna unit permit installation where space is limited.
Page 10 Display unit GP-25/GP-27 Protected from the weather Antenna unit GPA-017 (option) Exposed to the weather, or protected from the weather in case of internal antenna The display unit GP-25 and GP-27 have a built-in GPS antenna. GP-25 Antenna Unit GPA-017...
Page 11 EQUIPMENT LISTS Standard supply Name Type Code No. Remarks GP-25 Display Unit GP-27 Cable Assy. MJ-A7SPF0005A-020C 000-177-297-10 Installation materials Self-tapping Screw 5x20 SUS304 000-162-608-10 Fuse FGMB 125V 2A PBF 000-157-479-10 Spare part SD Card UCVMS0V00-MW Contains chart data Optional supply...
Page 106 FURUNO GP-25 SPECIFICATIONS OF GPS/WAAS PLOTTER GP-25 GENERAL Screen 5-inch TFT color LCD, 800 x 480 dots Display mode Plotter display Projection Mercator Useable area 80 latitude or below Brilliance 500 cd/m typical Language Bahasa Malaysia, Bahasa Indonesia, Chinese, English, Thai,...
Page 107 FURUNO GP-25 POWER SUPPLY 12-24 VDC: 0.24-0.12 A ENVIRONMENTAL CONDITIONS Ambient temperature Plotter -15°C to +55°C Antenna unit -25°C to +70°C Relative humidity 93% at +40°C Degree of protection Plotter IP56 Antenna unit IPX6 Vibration IEC 60945 Ed.4 UNIT COLOR Plotter N4.0 (panel), N2.5 (chassis)
Page 108 FURUNO GP-27 SPECIFICATIONS OF GPS/WAAS PLOTTER GP-27 GENERAL Screen 7-inch TFT color LCD, 800 x 480 dots Display mode Plotter display Projection Mercator Useable area 80 latitude or below Brilliance 500 cd/m typical Language Bahasa Malaysia, Bahasa Indonesia, Chinese, English, Thai, Vietnamese GPS/WAAS RECEIVER Receiving channels...
Page 109 FURUNO GP-27 POWER SUPPLY 12-24 VDC: 0.56-0.28 A ENVIRONMENTAL CONDITIONS Ambient temperature Plotter -15°C to +55°C Antenna unit -25°C to +70°C Relative humidity 93% at +40°C Degree of protection Plotter IP56 Antenna unit IPX6 Vibration IEC 60945 Ed.4 UNIT COLOR Plotter N4.0 (panel), N2.5 (chassis) Antenna unit (option)
Page 110 ＰＡＣＫＩＮＧ　ＬＩＳＴ 14CY-X-9851 -0 GP-25-MW11/12/15/16/24 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT GPS/WAAS ﾌﾟﾛｯﾀ GP-25 GPS/WAAS PLOTTER 999-999-200-00 予備品 SPARE PARTS ﾋｭｰｽﾞ FGMB 125V 2A PBF GLASS TUBE FUSE 000-157-479-10 付属品 ACCESSORIES SDｶｰﾄﾞ(ﾁｬｰﾄ)
Page 111 ＰＡＣＫＩＮＧ　ＬＩＳＴ 14CY-X-9853 -0 GP-27-MW11/12/15/16/24 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT GPS/WAAS ﾌﾟﾛｯﾀ GP-27 GPS/WAAS PLOTTER 999-999-201-00 予備品 SPARE PARTS ﾋｭｰｽﾞ FGMB 125V 2A PBF GLASS TUBE FUSE 000-157-479-10 付属品 ACCESSORIES SDｶｰﾄﾞ(ﾁｬｰﾄ) UCVMS0V00-MW**-* SD CARD FOR CHART...
Page 115 INDEX own ship ..........1-13 point symbol ..........3-3 Brilliance ............1-5 Route Edit screen........4-6 routes list..........4-4 Controls............1-1 Power on/off ..........1-5 Course up ..........1-20 Cursor ............1-12 Quick point ..........5-1 Defaults restore........11-4 Routes Display description ........1-6 connecting..........4-7 Display range ...........1-15 creating ............4-1 DSC information.........9-1 deleting.............4-8 displaying ..........4-7 GPS status display........11-3...
