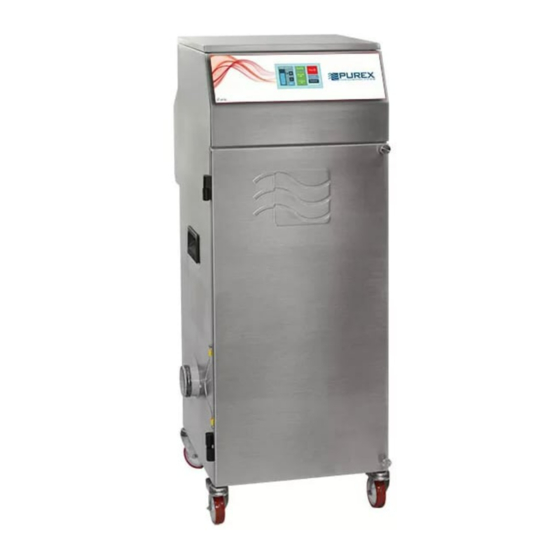

- Page 1 Operating Manual Visit www.purex.co.uk for more information. “The future of fume extraction” 822010 rev 4...
- Page 2 IMPORTANT MACHINE MUST BE SET UP BEFORE USE SEE PAGE 10...
-
Page 3: Table Of Contents
Filters Should always be ordered in advance of requirement from Purex or your authorised local agent. Replacement filter part numbers are shown on the corner of the original packaging and also on the label on the inside of the cabinet door. -
Page 4: Ec Declaration Of Conformity
2014/35/EU Low Voltage Directive 2006/42/EC Machinery Directive We certify that the Purex equipment stated above conforms with the protection requirements of the Council Directives indicated above on the approximation of the laws of the Member States relating to electromagnetic compatibility, low voltage and machinery safety. -
Page 5: Warnings
WARNINGS The use of filters other than those supplied by Purex or an authorised agent will invalidate any warranty, service contract and any LEV certification! • Always isolate the system from the mains power supply before opening any doors or lids. -
Page 6: Installing The Machine
• If a special connection kit or attachment is required please contact Purex or your local agent. Ensure all connections are properly sealed and that there are no kinks in the hose. Once secured in position, connect the hose/s to the inlet/s on the machine either by pushing the hose onto the inlet or by using the connections supplied. - Page 7 5000i 800i 5000i 400i 2000i Cube 400i Buster 2000i Cube 400i 800i 400i 800i Flow 300m Running PUREX Stop < Main Filter Local FUME EXTRACTION SYSTEMS Pre Filter Support 400i Flow 300m Running Stop PUREX < 23°c Main Filter Local...
-
Page 8: Touchscreen Control System
TOUCHSCREEN CONTROL SYSTEM Touchscreen control system The touchscreen control system gives the operator clear indication of machine and filter status at a glance, designed with ease of use in mind, making the iFume series usable by operators with minimal training. Flow 300m... - Page 9 If the interface is not controlling the extractor, the indicator will show “Local” allowing user operation of the screen. Support button (13) Button for acessing the support screen. Machine model (14) Displays the model number of the machine. www.purex.co.uk purex@purex.co.uk...
-
Page 10: Setting The Machine For The First Time
Each machine is factory set at 50% of its capacity. Check the fumes are being removed by site observation and appropriate measurement. Then increase or decrease the flow rate as appropriate. Please note that setting the flow level unnecessarily high may reduce filter life. www.purex.co.uk -10- purex@purex.co.uk... -
Page 11: Setting Special Features
+ and - buttons. The iFume will be controlled by a process controlled unit, such as a laser. Connect the iFume to the process controlled unit (e.g. laser) using a Purex interface cable. Set the required flowrate then select the “Lock On” button as above. -
Page 12: Filtration & Changing Filters
Protective eyewear should also be worn when changing filters. Opening the filter compartment door • Ensure your process is stopped • Switch off your Purex machine at the control panel (see Touchscreen control system) • Turn the door lock/s on the front of the filter compartment door •... - Page 13 Alpha KompressAIR 800i 5000i 800i 5000i 400i 2000i Cube 400i Buster 2000i Cube Buste Flow 300m Running Stop PUREX < Main Filter Local FUME EXTRACTION SYSTEMS Pre Filter Support 400i 400i 800i 400i 800i 23°c Flow 300m Running Stop PUREX <...
-
Page 14: Warning And Alarm Signals
WARNING AND ALARM SIGNALS PARTICULATE Motor Fail Hose Blocked PARTICULATE Flow 300m Running Stop Filter status < Main Filter Local Support Pre Filter 400i 75°c Order Order Main Filter Pre-filter Door 83°c Open Replace Replace Main Filter Pre-filter www.purex.co.uk -14- purex@purex.co.uk... -
Page 15: Troubleshooting
Check there is nothing blocking the Temperature Temperature alarm, the process air is cooling vents on the rear of the extractor. Check (red). too hot or the extractor is overheating. the process temperature. Turn off extractor. www.purex.co.uk -15- purex@purex.co.uk... - Page 16 Circuit breaker tripped or fuse blown May indicate a serious fault. Contact your supplier. on power supply. Useful Contacts: Press the “Support” button on your touchscreen. Purex International Limited E: support@purex.co.uk T: +44 (0)1405 746 030 www.purex.co.uk -16- purex@purex.co.uk...
-
Page 17: Terms & Conditions
Purex. 6.5 Purex does not exclude or limit its liability in negligence for death or personal injury, or for fraud or 1.2 No quotation, estimate or proposal issued by Purex is an offer that is capable of acceptance by the wilful default, or otherwise to the extent that any exclusion or limitation of its liability is void, prohibited or Purchaser. -
Page 18: Warranty Registration
12-months warranty (Registration must be within 4 weeks of receipt of machine, see terms & conditions) Purex International Limited, QWP House, Island Drive, Capitol Park, Thorne, DN8 5UE, UK T: +44 (0)1405 746 030 F: +44 (0)1405 746047 W: www.purex.co.uk... - Page 20 T: +44 (0)1405 746 030 F: +44 (0)1405 746 047 E: purex@purex.co.uk W: www.purex.co.uk Registered Office. Purex International Ltd. QWP House, Island Drive, Capitol Park, Thorne. DN8 5UE, UK Registered No. 5136616 England. VAT No. GB842 5025 49 | WEEE Producer Registration Number: WEE/CE0067TX...
