  • Page 1 C65CA-BO9072D-M Service Manual V1.0...
  • Page 2 Document Revision History Modification Page Confirmed Version Updated Instructions Reviser Date Hooke 9/19/2020 Release Version Yiqingduo...

  • Page 3: Table Of Contents

    CONTENT Safety Instructions..........................4 I. Safety warning..................... 4 II. Notice......................... 5 Product Basic Specifications........................6 I. Product Appearance....................6 Electrical Diagram..........................9 Disassembly guide..........................10 I. Exploded Views....................10 II. Shell Disassemble..................... 11 III. Circuit Boards Disassemble................11 IV. Touch Frame Disassembly................16 Internal Cables...........................18 I.

  • Page 4: Safety Instructions

    Safety Instructions Please read the safety information carefully before installing, maintaining, or disassembling this product. I. Safety warning The current of power supply, telephone and communication cable is dangerous and the on/off button, power switch on the device do not cut off the current completely.

  • Page 5: Notice

    II. Notice 1. When replacing the system battery, please use the same kind of battery. 2. Battery containing lithium, improper operation or handling will cause explode. Please DO NOT：  Put the battery into water  Heat the battery to more than 100 degrees C (212 degrees F) ...

  • Page 6: Product Basic Specifications

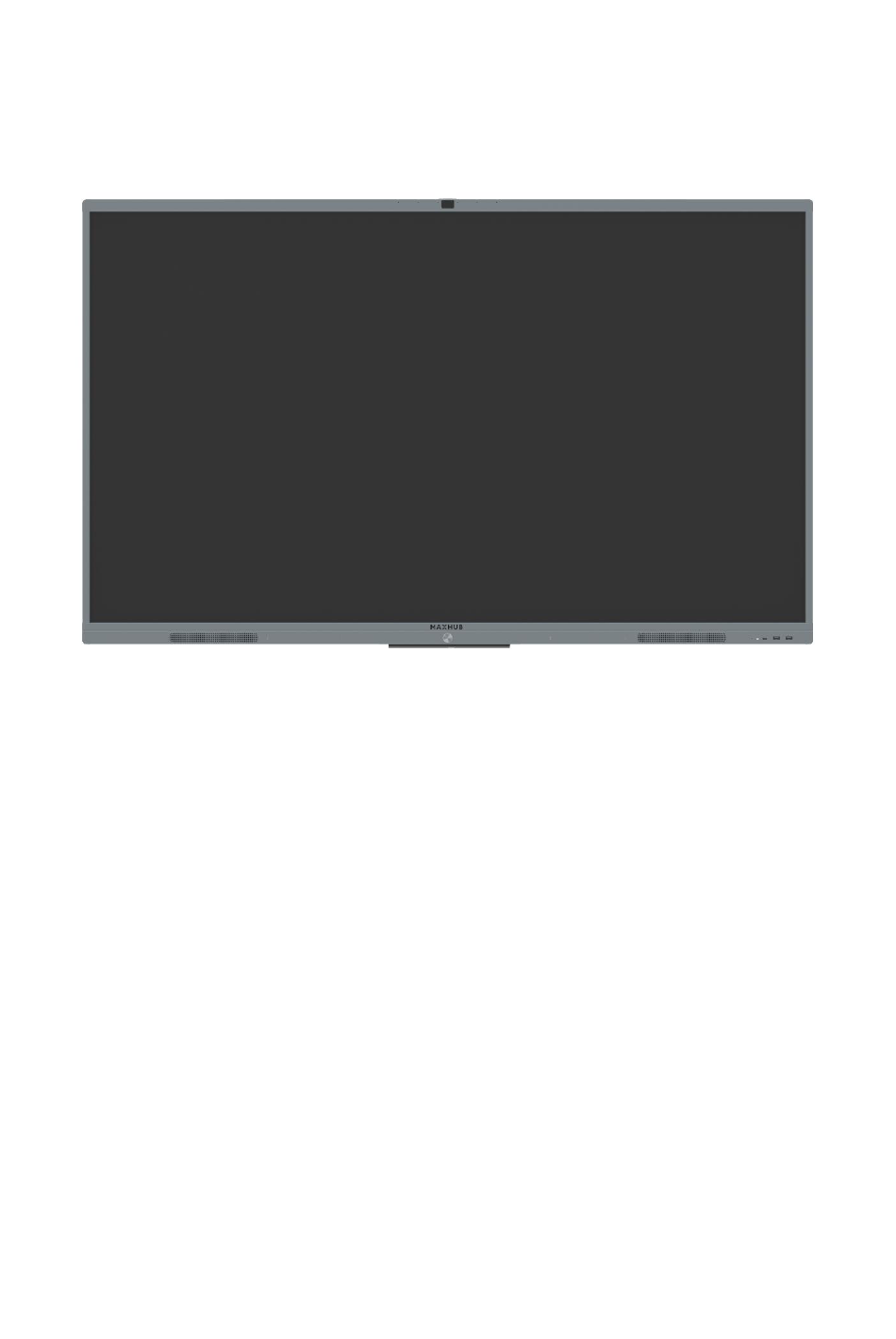

    Product Basic Specifications I. Product Appearance  Front view  Back view...
  • Page 7  Side view PC Module Right side signal input/output AC insert and switch...
  • Page 8  Back view of the screen Three-in-one main board Woofer TCON Speaker Key board WiFi board USB board Speaker...

  • Page 9: Electrical Diagram

    Electrical Diagram...

  • Page 10: Disassembly Guide

    Disassembly guide Exploded Views NAME QTY NO. NAME AG Glass bracket(Upper,Middle) 21 Side terminal bracket Upper bezel 22 Three-in-one main board Left external upper corner 23 TCON Left inside upper corner 24 WiFi board AG Glass bracket 25 Small back cover(Left) AG Glass 26 Small back cover(Middle) Touch frame...

  • Page 11: Shell Disassemble

    NAME QTY NO. NAME 16 Magnet 36 Right external bottom corner 17 PC module 37 Right inside bottom corner 18 PC module bracket(upper) 38 Right bezel 19 PC module bracket(bottom) 39 Right inside upper corner 20 Speaker 40 Right external upper corner Shell Disassemble 1.
  • Page 12  USB Board (1) Take off the screws of USB board bracket (2) Take out the plastic components and USB board...
  • Page 13  Hall device  Key Board...
  • Page 14  Camera & MIC Board Maintenance Description ▓ To replace the circuit boards you need to remove first the rear covers and wires. ▓ To replace the TV main board, you need to remove the lower terminal block, the side terminal block. ▓...
  • Page 15 Please note whether the ports of the cables are properly connected in order to prevent the component from being burnt due to inserting in the wrong ports.

  • Page 16: Touch Frame Disassembly

    Touch Frame Disassembly STEP 0: Get machine from the movable bracket and lie it down on the table( Be careful on protection) STEP 1: Remove small back board(Left/middle/right) STEP 2:Remove external corner STEP 3: Remove the touch cables between touch frame and Three-in-one main board, use tweezers to press the buckle of touch cable connector and plug out the cable by hands.
  • Page 17 FFC socket Three PCBA on the corners are connected with 150mm FFC cables FFC socket STEP 6: For top and bottom touch frame: Push the touch board from one side and pull out the board by hands from the other side For left and right touch frame: Push the touch board from bottom side and pull out the board by hands from the top side STEP 7:Completed...

  • Page 18: Internal Cables

    Internal Cables Cable Connection Guide Part Name Part No Cable Connection Guide 1.FFC Cable 1 004.050.0004743 Three-in-one main board to TCON board 2.FFC Cable 2 004.050.0050130 Three-in-one main board to WiFi board 3.FFC Cable 3 004.050.0050208 Three-in-one main board to Camera 4.FFC Cable 4 004.050.0004746...

  • Page 19: Cable Connection Diagram

    Cable Connection Diagram 1~5. FFC Cable 1~FFC cable 5 FFC cable 3 FFC cable 1 FFC cable 2 Camera & MIC board FFC cable 4 FFC cable 5 6.Speaker cable...
  • Page 20 7. USB cable 8.Touch frame FFC cable(Three PCBA on the corners are connected with 150mm FFC cables)

  • Page 22: Key Parts List (For Reference Only)

    Key Parts List (For reference only) Part No Component Name Description Quantity 004.034.0001656 65” TCON TCON-UV650QUB-N90 004.064.0050114 Touch Frame X65G03 Three-in-one Main 004.057.0050545 TP.T972.360WD Board 004.057.0001000 Key board SRC.KEYUSB.02C 004.057.0050149 WIFI board SRK.PC120P.01A 004.057.0001078 Camera board SRCM.CAM_ISP.01D 004.028.0000591 Woofer 6ohm,10W 004.057.0050171 MIC board SRV.Array_MIC.01C...

  • Page 23: Principle Of Key Components

    Principle of Key Components Three-in one Main Board (TP.T972.360W) CN18 CNW1 CNT1 CN20 CN15 CN17 CN11 CN7 1、CN7：TOUCH&IR&KEY&LED&FAN...
  • Page 24 2、CN20：KEY 3、CN15：Speaker...
  • Page 25 4、CN17：TC2 5、CN10：UART...
  • Page 26 6、CN2：INVERTER&FAN&PANEL 7、CN18: E-CAMMER 8、CNT1：C-TOUCH...

  • Page 27: Wifi Board (Srv.ap_Wifi_Iot.01)

    9、CNW1：VBYONE Wifi Board (SRV.AP_WiFi_IoT.01)

  • Page 28: Touch Frame(X65G03)

    1. CON1 (AC IN) III. Touch Frame(X65G03) 1. Top view of touch frame main board 2. Back view of touch frame main board 3. Touch Cable Connecter of Touch frame main board (just for reference) 4. Touch Frame Connector Pin Definition USB (connect Description (connect PC boards)
  • Page 29 3 D- √ 4 VCC √ 5 D- √ 6 D+ √ 7 GND √ 8 PGND √...

  • Page 30: Troubleshoot Steps

    Troubleshoot steps LED does not turn red.

  • Page 31: Led Does Not Turn Blue

    LED does not turn blue.

  • Page 32: Touch Issue

    Touch issue III.

  • Page 33: Pc Issue

    PC issue...

  • Page 34: Led Turn Blue But No Backlight

    LED turn blue but no backlight...

  • Page 35: Firmware Update Procedure

    Firmware update procedure Upgrade All (TV & MCU) 1. Debug Menu Upgrade Procedure (recommend) Tools: (1) USB disk (Format FAT32）*1PCS. (2) Remote controller *1PCS. Procedure: (1) Format the USB disk as FAT32. (2) Extract upgrade file to the U disk (FAT32) in the root directory. You will get "upgrade_972"...

  • Page 36: Touch Frame Update

    (4) The power LED will keep twinkle in red and green during upgrade process. After finished, the panel will reboot and enter Android channel. It will take 4 minutes to complete the upgrade procedure. Note: If MCU upgrade is failure with tips “Do not power off, please re-upgrade MCU”, press “Back”...
  • Page 37 (3) Turn on the panel. Press “INPUT 1379” with remote controller, and then the debug menu will pop up. Select Upgrade-> TouchPanelTools, press “Enter”, long press the “App version” (4) Select “Touch upgrade” and get into the upgrade interface, choose the touch file(bin file) from the USB disk, press “START UPGRADE”...
  • Page 38 Note: When running the “TouchPanelTools” application, the Touch Service should be showing “Device connected”. If not, please reboot and upgrade again.
