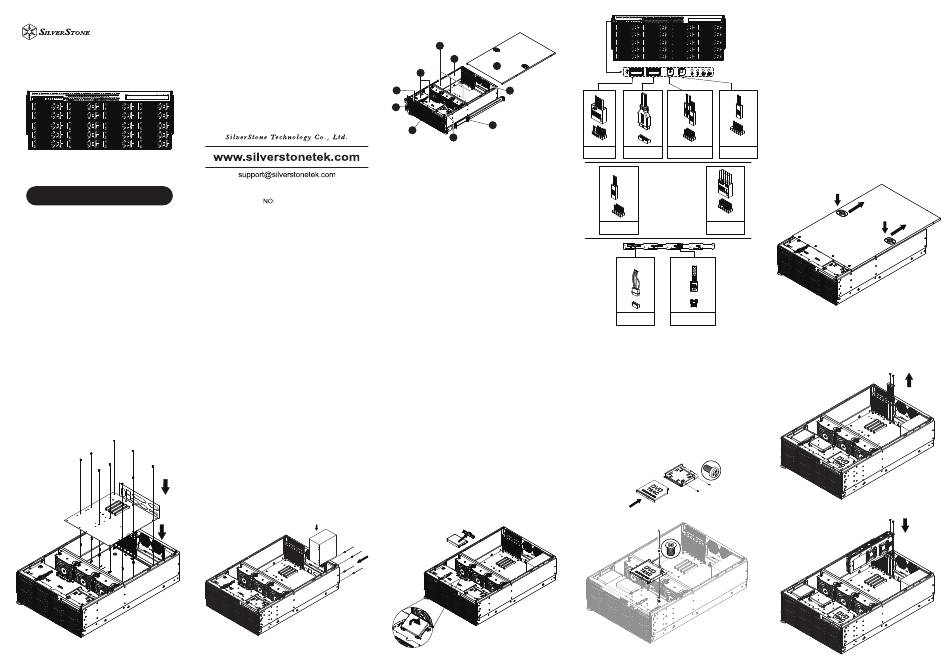

SilverStone RM43-320-RS Quick Start Manual

RM43-320-RS
4U 20-bay 2.5"/3.5" HDD rackmount storage chassis with
Mini-SAS HD SFF-8643 12 Gb/s interface
2.Install the motherboard stand-
off, then install motherboard and
secure with screws
G11244060
3.Install PSU into chassis then
secure with screws
4
2
1
6
8 3
9
10
7
5
1 TOP COVER
2 BOTTOM CHASSIS
3 OPTIONAL POWER SUPPLY
4 Hot-swap 120x38mm FANS
5 ODD DRIVE CAGE
6 2.5" DRIVE CAGE
7 2.5"/3.5" HDD TRAY
8 FRONT PANEL IO AND INDICATORS
9 RACK HANDLES
10 RAIL SLIDE
4.Install 2.5" drive onto plastic clip
POWER SW
RESET SW
USB 2.0 USB 3.0
POWER LED
HDD LED
HD Audio
4PIN -12v Mini-SAS HD
5.Remove the optical drive
bracket, secure optical drive onto
the bracket then install back into
the chassis
1.Press and hold the top cover's
two buttons while pushing the
cover towards the rear of the
chassis to remove it
6-1 Install graphics / expansion cards
Remove PCI slot covers

6-2 Install graphics / expansion cards
