中龙集团 Dragon Group China Limited

BIRD®

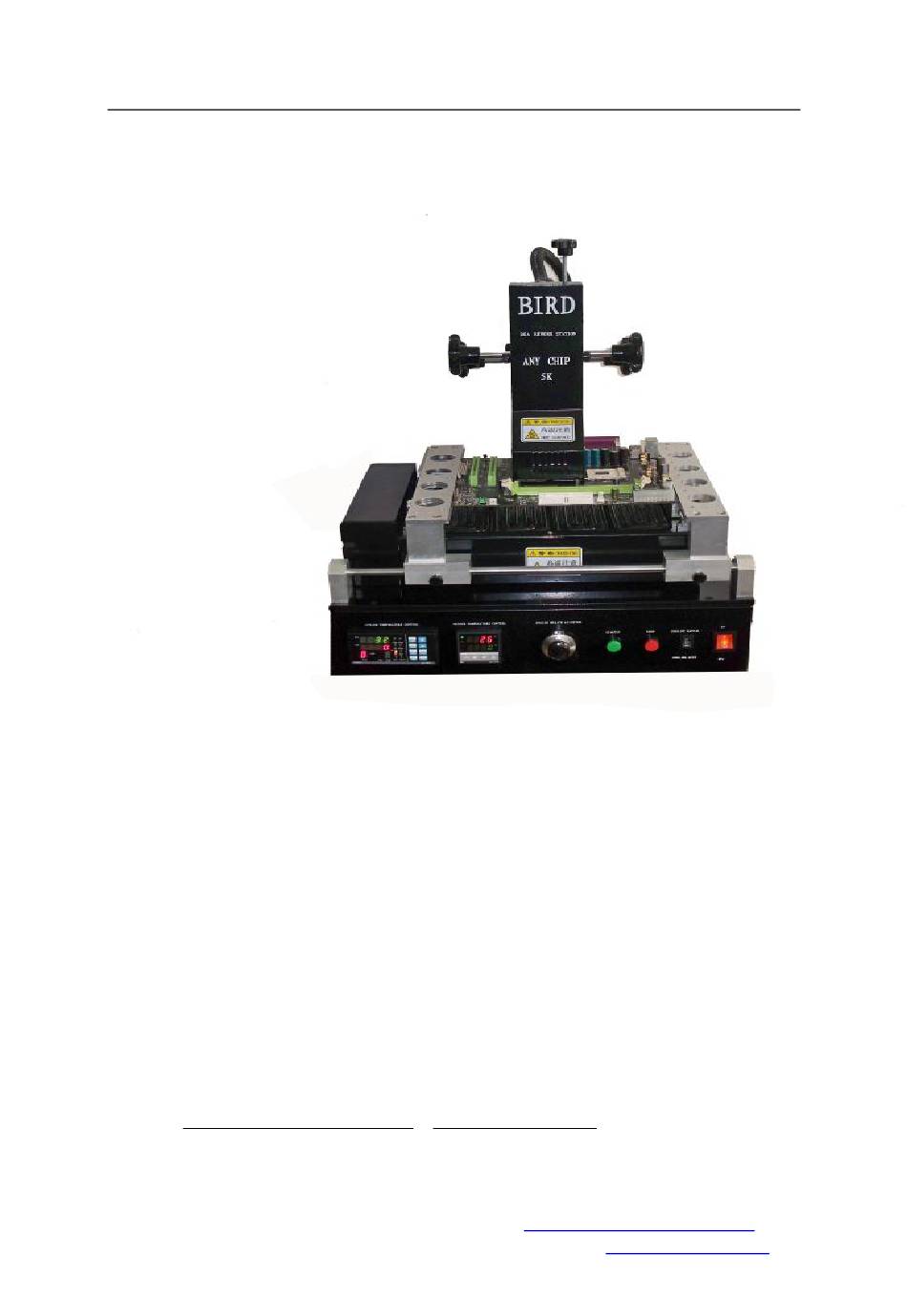

BGA Rework Station AC-5K

Dragon Group China Limited

Address: Fuxin Building Office 12D No.318 Fuhua Road Shenzhen,

China. 518000

：

Telephone:

Fax

(86) 1 379 836 8284 (86) 755 83292149

(86) 755 83292149

Http ://

www.dragongroupchina.com www.chinaemall.biz

www.dragongroupchina.com

www.chinaemall.biz

Table of Contents

Need help?

Do you have a question about the Bird AC-5K and is the answer not in the manual?

Questions and answers

Summary of Contents for Dragon Group China Bird AC-5K

Page 1 中龙集团 Dragon Group China Limited BIRD® BGA Rework Station AC-5K Dragon Group China Limited Address: Fuxin Building Office 12D No.318 Fuhua Road Shenzhen, China. 518000 ： Telephone: (86) 1 379 836 8284 (86) 755 83292149 (86) 755 83292149 Http :// www.dragongroupchina.com www.chinaemall.biz...
Page 2: Table Of Contents
中龙集团 Dragon Group China Limited BIRD® Contents A. BGA Rework Station B. Installation C. Safety Cautions D. Introduction of Structure E. Operation Steps F. PLC (Programmable logic Controller） G. Curve Program Controller H. Related information I. Tips for operation www.dragongroupchina.com...
Page 3: Bga Rework Station
中龙集团 Dragon Group China Limited BIRD® A. BGA Rework Station 1. Knowledge about BGA BGA is short for Ball Grid Array. It is a kind of package method which use organic carrier in IC. It has the following features: ① Small package area.
Page 4 中龙集团 Dragon Group China Limited BIRD® (5)Good electrical property. The pins are small, the selfinductance and mutualinductance of the conductivity is low, and the frequency characteristic is good. (6)The tension between solder points produces good self-centration effect in solder-reflow, allowing 5% error of patch precision.
Page 5 中龙集团 Dragon Group China Limited BIRD® 3. Inspection standards of BGA For BGA assembled on PCB, inspection standard is a very important issue. Before BGA is applied to the PCB, most BGA manufacturers don't use X-ray in process of inspection. Instead, they employ some traditional methods to test PCB, such as automatic optical inspection, man-eye inspection or on-line function test.
Page 6 中龙集团 Dragon Group China Limited BIRD® No desoldering spots. (3)Bridging and short-circuit. When there is extra solder or the solder is not put on the right place, bridging and short-circuit may happen. So no bridging or short-circuit. (4)None paraposition. The X-ray image will show very clearly whether the BGA solder ball is aimed at the welding pad on PCB.
Page 7: Installation
中龙集团 Dragon Group China Limited BIRD® (1) Mounting: The main purpose of mounting to make every BGA solder align to the PCB pad with special equipment. (2)Hot air reflow: Hot air reflow soldering is the key to the whole BGA Rework.
Page 8: Safety Cautions
中龙集团 Dragon Group China Limited BIRD® b. Away from water and other liquids; c. Ventilated, dry place; d. Stable and flat, free from tremor. e. Less dust; f. No heavy objects on the controlling box; g. Not affected by airflow of air conditioner, heater or ventilator.
Page 9: Introduction Of Structure
中龙集团 Dragon Group China Limited BIRD® 10. Turn off the power when stop using it. 11. Don't put the rework station on the wires, or there may be a failure, a fire, or an electric shock. 12. Before you use the machine, you must read the instructions attentively.
Page 10: Operation Steps
中龙集团 Dragon Group China Limited BIRD® 11. Heater Specification: 1．Total power：2.5 KW 2．Top heater：0.5 KW 3．Bottom heater：2.0KW 4．Power supply ：220V±10 50Hz±3 5．Dimension ： 450×400×580mm 6．Temperature control ： K sensor 7．Positioning: V-groove for PCB positioning Max PCB size: 280×320mm mm 8．Weight ： 20kg Features: 1.
Page 11 中龙集团 Dragon Group China Limited BIRD® 2.Desoldering Put PCB on the positioning bracket, choose the appropriate hot-air reflow nozzle, set the right soldering temperature curve, and press the START button. After the procedure is over, move the hot-air nozzle away by hand, and use the vacuum suction pen to remove BGA.
Page 12: Plc
中龙集团 Dragon Group China Limited BIRD® F. PLC (Programmable Logic Controller） 1.Top/bottom PLC a. Panel introduction Model: PC410 sectional type temperature controller www.dragongroupchina.com www.chinaemall.biz...
Page 13 中龙集团 Dragon Group China Limited BIRD® b. Panel display When we turn on the meter, the upper screen displays the basic model, the lower shows the version of the software (for the customized meter, the customer should pay special attention to the software version, to facilitate future order).
Page 14 中龙集团 Dragon Group China Limited BIRD® The meter has two rows of LED, the upper one is used to display the measurements (PV) and various codes of parameters ;the lower one is mainly used to display setting value (SV), the output value (MV) or the remained time of running(TIME) and various parameters.
Page 15 中龙集团 Dragon Group China Limited BIRD® AUTO / HAND is the automatic / manual switch button. When switch to manual output, MAN is on PAR is parameters setting button. ▲means value increase. ▼ means value decrease. (1) settings modifying When the meter is in a state of display, the upper screen shows actual measured value.
Page 16 中龙集团 Dragon Group China Limited BIRD® stop. At the same time, the top heater's position is being adjusted, so the measured value is not vibrating. After 1.5 periods of vibration, the PID self-setting is completed. Then the AT lamp is off. The meter can calculate the best PID parameter and save it in the meter according to the vibration period and amplitude.
Page 17 中龙集团 Dragon Group China Limited BIRD® D-value 1～2000 ℃ ProP Heating proposition area Intt Integral time OFF， 1～8000 No display when Ctrl is set at ON/OFF dErと Differential time OFF，1～999 No display when Ctrl is set at ON/OFF rElc Cooling coefi 0.1～10.0...
Page 18 中龙集团 Dragon Group China Limited BIRD® www.dragongroupchina.com www.chinaemall.biz...
Page 19 中龙集团 Dragon Group China Limited BIRD® www.dragongroupchina.com www.chinaemall.biz...
Page 20 中龙集团 Dragon Group China Limited BIRD® h. Program configuration notes Basic parameters: Sn, Ctrl, OP1, OP2 Sn, Ctrl, OP1, OP2 are the basic four parameters. They have great impact on other parameters. Therefore, we should set these four basic parameters first, according to the specific requirements.
Page 21 中龙集团 Dragon Group China Limited BIRD® 2. Lower Thermostat a. panel introduction model: REX-C10 Segmental Temperature Controller (1). PV:The actual temperature (2). SV: setting temperature Switching positions time rannge 1M～99H99M 1S～99M99S 0.01S～99.99S (3). Setting figures increase (4). Setting figures decrease (5).
Page 22 中龙集团 Dragon Group China Limited BIRD® differential time (I), and integration time (D) parameters. For traditional PID meters, the identification of these parameters mentioned above is operated by experienced process control experts. Otherwise, it's likely that the entire system is out of control for the mismatch of the parameters which bring trouble to most users.
Page 23: Curve Program Controller
中龙集团 Dragon Group China Limited BIRD® G. Curve Program Controller 1. Parameter set of curve program. a. Pn0：saved curve program（0～4groups）； r1:the slope of Curve 1；End;StEP;0.01～99.9°C/min; Set the slope at End：When the curve program goes to this section, it stops. Set the slope at StEP：when the curve program goes to this section，the program skip this www.dragongroupchina.com...
Page 24 中龙集团 Dragon Group China Limited BIRD® section and goes to next flat section. L1: the aim of the flat section. Range: the entire measuring range of input signals, limited by SPH and SPL. The procedure will skip this section. One curve has several slops and flat sections.
Page 25 中龙集团 Dragon Group China Limited BIRD® running setting instead of the basic setting. The basic setting displays under the SP parameter code. When the meter is in the state of ldIE, the lower screen displays the basic setting. 2. Modification of parameters when the curve procedure runs.
Page 26 中龙集团 Dragon Group China Limited BIRD® www.dragongroupchina.com www.chinaemall.biz...
Page 27: Related Information
中龙集团 Dragon Group China Limited BIRD® H. Related information 1. How to deal with the Voids produced by the lead BGA in lead-free soldering? As the development of the lead-free technology, more and more SMT processing enterprises come across the problem of Voids in production.
Page 28 中龙集团 Dragon Group China Limited BIRD® ceramic heater can't cool down very quickly, thus it is difficult to control the time of higher reflow temperature. However, the convection can control strictly, and it is conductive to a better & repeatable temperature curve, and the components will not be over-heated, and the time of higher reflow temperature will not prolong too much.
Page 29 中龙集团 Dragon Group China Limited BIRD® physical effect is limited, infrared ray has lost some market. When the heat radiation distribute evenly, objects in different colors absorb and reflect heat radiation unevenly. The purchase decision of Array Package Rework Station should start from the reliable technology.
Page 30 中龙集团 Dragon Group China Limited BIRD® Generally, before mounting a new BGA, the paste should be laid on the pad with a special micro mesh. But for those common devices such as PBGA or MBGA, the paste can be laid on the pad directly, and the soldering can be finished by the melting of soldering balls.
Page 31 中龙集团 Dragon Group China Limited BIRD® www.dragongroupchina.com www.chinaemall.biz...
Page 32: Tips For Operation
中龙集团 Dragon Group China Limited BIRD® I. Tips for operation 1. After turn on the head power switch, check whether the upper hot-air nozzle gives out cool breeze. If not, never start the machine, or the upper heater may be burnt.
