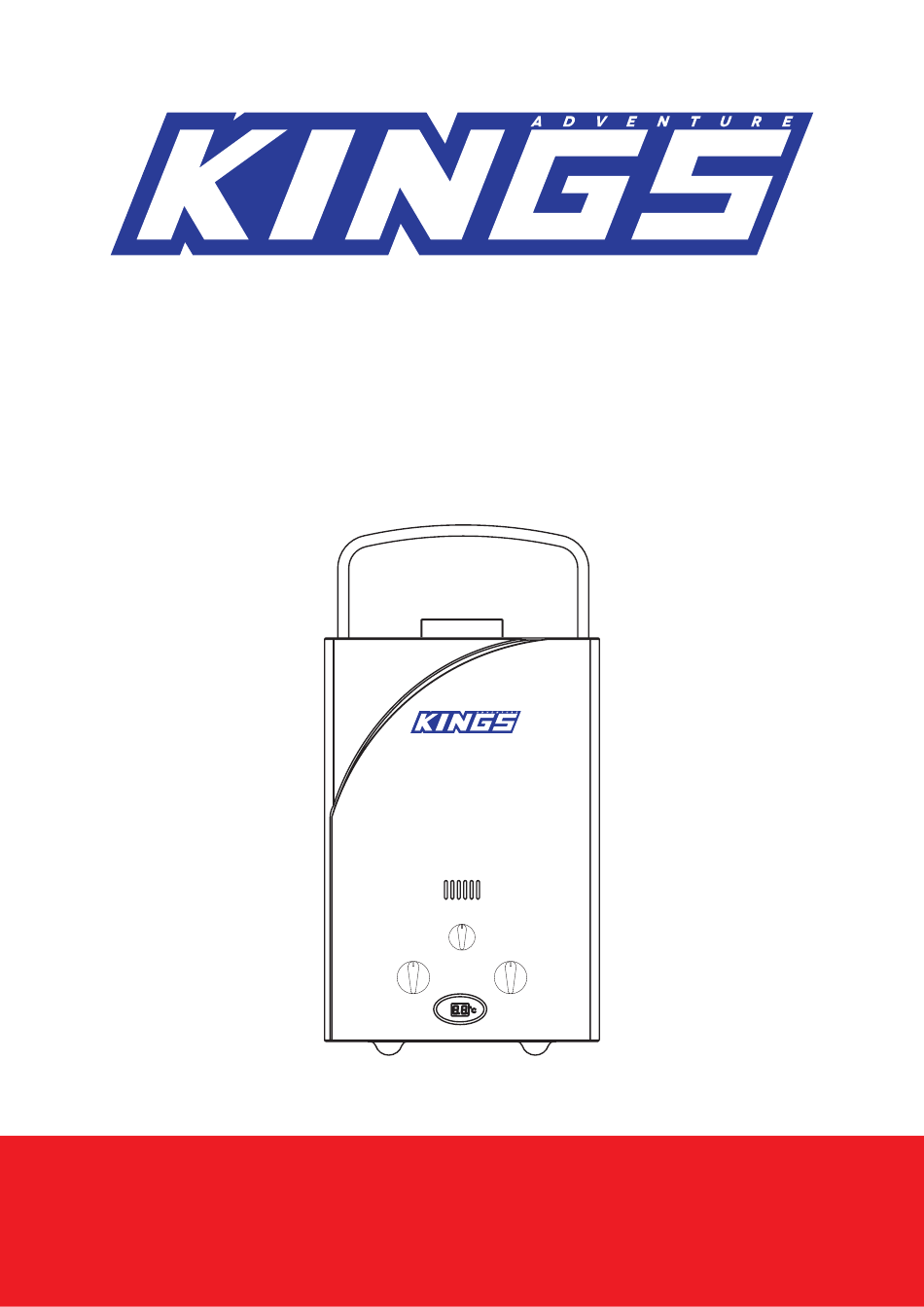

GAS HOT WATER SYSTEM
USER MANUAL
AKGS-GHWS_01
V2.2
PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE USING THIS PRODUCT.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKHWS01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Adventure Kings AKHWS01

  • Page 1 GAS HOT WATER SYSTEM USER MANUAL AKGS-GHWS_01 V2.2 PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
  • Page 2: Safety Warning

    INTRODUCTION Thank you for purchasing the Adventure Kings Portable Gas Hot Water System. This manual contains information to help you get years of safe and enjoyable service from your Portable Gas Hot Water System. Please take the time to fully read this manual before operating any part of the Portable Gas Hot Water System.
  • Page 3: General Warnings

    GENERAL WARNINGS This appliance shall only be used with a ULPG gas refillable container certified to AS 2469 or AS 2030. IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CONTAINERS. This appliance shall only be used with the approved 1200mm ULPG gas hose and regulator assembly that have been supplied.
  • Page 4: Checking For Gas Leaks

    IMPORTANT • Avoid twisting or kinking the flexible gas hose. • If there is a leak in your appliance (smell of gas), immediately attempt to turn off the cylinder valve. Remove the appliance to a well-ventilated location away from any ignition source. Check for leaks using soapy water.
  • Page 5: Appliance Performance

    HANGING THE APPLIANCE OUTDOOR USE ONLY – The appliance must be used outdoors only. Combustible surfaces, fabrics, and flammable materials must be kept at least 1000mm (1 metre) away from the sides and top of the appliance while it is operating. The appliance is designed to be hung upright against a non-combustible vertical surface.
  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS This appliance must only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage is rapidly dispersed by wind and natural convection. The following figures show outdoor areas suitable for use with this appliance. Rectangular areas have been used in these figures –...
  • Page 7 c. Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: 1. At least 25% of the total wall area is completely open 2. 30% or more in total of the remaining wall side, back and front wall areas is open and unrestricted.
  • Page 8 DESCRIPTION QUANTITY IDENTIFICATION REMARKS Portable gas water 1 piece heater Shower head with 1 set shower hose Gas regulator with gas 1 set hose Water hose 1 set Water hose with 1 set appliance connector Portable 12V water 1 piece pump Hose washers 4 pieces...
  • Page 9: Preparing The Appliance

    PREPARING THE APPLIANCE Before use, it is important to prepare the appliance by installing the proper adaptors to suit its intended use. Please follow the following steps. 1. Remove the heater and all components from the box and place them on a table in front of you.
  • Page 10: Operating The Appliance

    OPERATING THE APPLIANCE 1. Find a suitable sturdy, non-combustible vertical surface to hang the appliance. The surface should be at least 1000mm clear from the sides and 1000mm from the top of all combustible surfaces, fabrics, flammable materials, and people. Hang the appliance on a suitable vertical surface by the handle attached to the back cover of the heater.
  • Page 11: Storing The Appliance

    14. Adjust the temperature of the water flowing from the shower head by turning the ‘gas’ and ‘water’ knobs. a. Turning the gas knob towards the symbol will increase gas flow. Turning the gas knob towards the symbol will decrease gas flow. b.
  • Page 12: Care Instructions

    DISCONNECTING FROM THE CYLINDER 1. Check that the appliance is fully extinguished, the gas cylinder control valve is in the fully ‘off’ position and all surfaces are cool. 2. Loosen the connection to the gas cylinder in a clockwise direction. DRAINING THE HEATER WHEN STORING BELOW 0°C When the ambient temperature is below freezing, it is essential to drain the water after using the...
  • Page 13: Troubleshooting

    TROUBLESHOOTING This guide should be followed in case of failure of the appliance to operate correctly. If problems persist contact us. DO NOT MODIFY THIS APPLIANCE. DO NOT ATTEMPT TO REPAIR THE APPLIANCE. PROBLEM CAUSE The appliance will not light Make sure you have new batteries installed in the correct position.
  • Page 14: Specifications

    SPECIFICATIONS Model number AKHWS01 Injector size 0.61 mm Total nominal gas consumption 28MJ/h Gas pressure 2.8 kPa Min water pressure 0.3 MPa Max water pressure 1.0 MPa Size 440 x 300 x 130 mm Weight 5.3 kg Gas input connection G½...
  • Page 15: Warranty Information

    Any service, inspection, repair or replacement activities associated with Adventure Kings products must only be carried out by an approved Adventure Kings agent. To claim this warranty, the customer will need to provide proof of purchase in the form of a receipt or financial transaction statement in the name of the purchaser.
  • Page 16: Warranty

    12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
