EMT STX 5/10 User Manual

Specifications
Wire: 99,99% Silver
Core: Very low loss alloy
Recommended specs. Gain: 35...45 dB
of MM-input: Load: 47 kOhm
Size: 200x160x80mm
Output Gain: +14 dB
Transformer Ratio: 1:5
Effective load at Input
250 Ohm
Option = EMT:
Effective load at input
Load MM-input : 25
Option = Open:
Warranty
This unit is covered by EMT's two-year warranty from the day of purchase (dealer's invoice). It covers all
factory materials and processing errors. However this warranty does not cover the following: malfunction
caused by neglecting the instructions in user manual; normal wear. Unauthorized disassembly or modifi-
cations whatsoever of the cartridge will also avoid the warranty. In any case of warranty claims please
contact your dealer.
EMT and its Logo are registered trademarks.
Specifications, options, features and models subject to change without notice.
EMT Tontechnik
HiFiction AG
Tösstalstrasse 14
CH-8488 Turbenthal
+20 dB
1:10
Always use Option = Open
Load MM-input : 100
EMT STX 5/10 User Manual
Dear Client

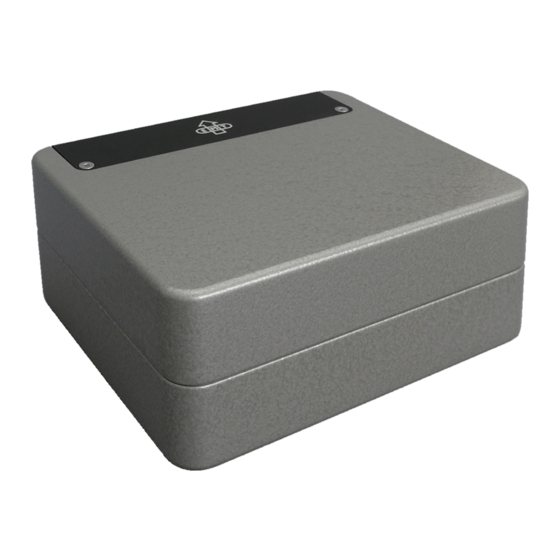

Congratulations to your EMT MC step-up transformer. This unit has been carefully
designed and manufactured in Switzerland to satisfy highest demands for musicali-
ty. It is perfectly matched to EMT cartridges as a reference and offers a second out-
put for cartridges with lower output level.
The toroidal winding technology with purest silver wire and advanced magnetic ma-
terials bring this very traditional technology to a new level of ultra-low noise and high
resolution.
