Summary of Contents for Climax VESTA-156

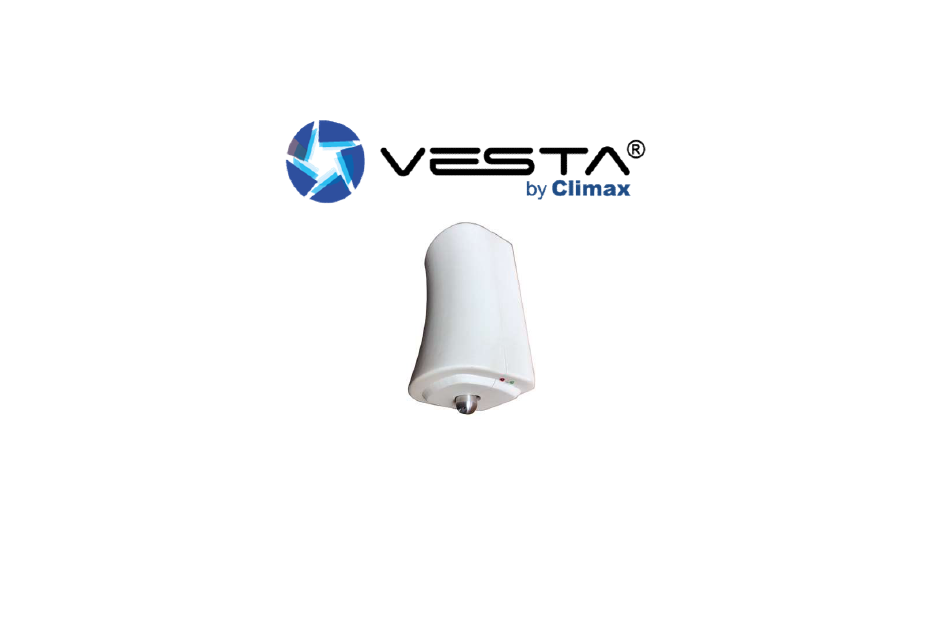

- Page 1 Configuration manual of the VESTA-156 1. Learning I/O module on the panel 2. Module settings 3. Configuration activation rule 4. Double coincidence configuration...
-
Page 2: First Of All
FIRST OF ALL: • Connect the battery of the I/O module • Connect the smoke generator in the terminals “smoke” only AFTER made the tests of working. - Page 3 1. Learning I/O module on the panel 1) Activate the learning function on the panel (for further info refer to the panel manual) 2) Press the button on the I/O module installed inside the VESTA-156 3) Select the detected device and press OK...
- Page 4 1. Learning I/O module on the panel 4) Assign the appropriate area to the input device (DI), and choose the zone number and the name of the device SMOKE TAMPER 5) Assign the same area to the output device (DO) and choose the zone number and the device name SMOKE ACTIVATION NB) The device needs 2 zones...
-
Page 5: Module Settings
2. Module settings 1) The output module (DO) must be set as. "Separate devices" 2) Set the input module as a tamper of the smoke generator... - Page 6 3. Configuration activation rule In the menu "automationrule" create a new rule as indicated below:...
- Page 7 4. Double coincidence configuration In the device settings, set at least 2 devices with the "Cross zone" attribute to activate the smoke generator ONLY in the event of the activation of both devices in a programmable time and thus avoid improper activations.
- Page 8 4. Double coincidence configuration In the menu "panelsecurity“ set the timer for the cross zones to 1 minute or more (time within which the 2 zones must be activated to trigger the smoke generator)
