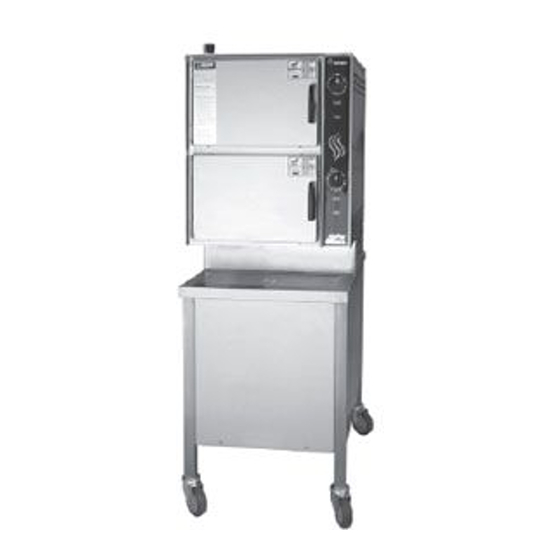

Atmospheric convection steamer

Advertisement

Quick Links

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
HY-6E
HYPERSTEAM™
ATMOSPHERIC CONVECTION
STEAMER
· Self Contained
· Electric Heated
· Capacity:
6 Steamer Pans
(12" x 20" x 2 1/2")
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
WARNING / FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this
equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of
same and to determine the possibility of any damage, including concealed dam-
age. Unified Brands suggests that if you are suspicious of damage to make a
notation on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
PART NUMBER 148668, REV H (01/22)
888-994-7636, fax 888-864-7636
unifiedbrands.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GROEN HYPERSTEAM HY-6E and is the answer not in the manual?

Questions and answers

Summary of Contents for Unified Brands GROEN HYPERSTEAM HY-6E

  • Page 1 Unified Brands suggests that if you are suspicious of damage to make a notation on the delivery receipt. It will be the responsibility of the consignee to file a claim with the carrier.
  • Page 2: Important Operator Warnings

    IMPORTANT - READ FIRST - IMPORTANT WARNING: THE UNIT MUST BE INSTALLED BY PERSONNEL QUALIFIED TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO THE EQUIPMENT. THE UNIT MUST BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES. CAUTION: SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
  • Page 3 Anyone claiming that there has been a breach of warranty by UNIFIED BRANDS must give us written notice within THIRTY (30) days after discovery of the relevant defect or the right to assert such claim will have been waived conclusively and provided further that any such claim must also be asserted within the general warranty period for such equipment and/or parts.
  • Page 4: Table Of Contents

    Table of Contents Important Operator Warnings ............page 2-3 References..................page 4 Equipment Description..............page 5 Inspection and Unpacking ............page 5 Water Quality & Treatment.............. page 6 Installation & Start-Up ..............page 7-8 Operation ................page 9-10 Cleaning.................. page 11-12 Maintenance.................
  • Page 5: Equipment Description

    Equipment Description Your Groen HY-6E HyPerSteam Convection Steamer is designed to give years of service. It has two stainless steel cavities (cooking chambers) which are served by twin, independent atmospheric steam generators which are electrically heated. A powerful blower circulates the steam in each cavity to increase heating efficiency. Each cavity holds up to three steam table pans (12”...
  • Page 6: Water Quality & Treatment

    In order to accurately choose the correct water treatment solution, a water quality test has to be performed. If a “Free Start-up” is requested, the ASA will perform a water quality test and Unified Brands (UB) will be able to suggest the best solution for your water quality.
  • Page 7: Installation & Start-Up

    Installation & Start-Up WARNING ELECTRICAL SUPPLY CONNECTION THE UNIT MUST BE INSTALLED BY PERSONNEL WHO ARE QUALIFIED TO Panel Removal WORK WITH ELECTRICITY AND PLUMBING. Open the wiring and control panel by removing the screws on the right side panel. IMPROPER INSTALLATION CAN CAUSE Slide the panel forward, and set it aside.
  • Page 8 Installation & Start-Up Branch Circuit Protection WARNING Each conductor must have over-current protection. Refer to the label on the back DO NOT CONNECT THE DRAIN DIRECTLY TO A of the unit for the proper wire type and size. Connections to the unit must be BUILDING DRAIN.
  • Page 9: Operation

    Operation CONTROLS WARNING Operator controls are on the front right of the unit. The control panel has the following ANY POTENTIAL USER OF THE EQUIPMENT touch pads and indicator lights: SHOULD BE TRAINED IN SAFE AND CORRECT OPERATING PROCEDURES. The timer is used in three ways: The ON/OFF touch pad gets the HyPerSteam ready for use, or shuts it off.
  • Page 10 Operation OPERATING PROCEDURE WARNING Press the ON/OFF touch pad for the steamer. The steam generator will fill, and heat WHEN YOU OPEN THE DOOR, STAY AWAY until the READY light comes on. (About 10 minutes.) FROM THE STEAM COMING OUT OF THE UNIT.
  • Page 11: Cleaning

    Cleaning WARNING To keep your HY-6E Steamer in proper working condition, use the following procedure DISCONNECT THE POWER SUPPLY BEFORE to clean the unit. This regular cleaning will reduce the effort required to clean the CLEANING THE OUTSIDE OF THE STEAMER. steam generator and cavity.
  • Page 12 Cleaning CAUTION DELIMING STEPS (Use Touch Pad) NEVER LEAVE A CHLORINE SANITIZER IN CONTACT WITH STAINLESS STEEL STEP 1 SURFACES FOR LONGER THAN 30 Press ON/OFF to turn steamer off. Open door. MINUTES. LONGER CONTACT CAN CAUSE CORROSION. STEP 2 Let cavity cool for 5 minutes or longer.
  • Page 13: Maintenance

    Maintenance HY-6E Steamers are designed for minimum maintenance, and no user adjustments NOTE should be necessary. Certain parts may need replacement after prolonged use. If THE UNIT CONTAINS NO FUSES THAT SHOULD there is a need for service, only Groen personnel or authorized Groen representatives BE REPLACED BY THE OPERATOR.
  • Page 14 Parts List FRONT PANEL & DOOR ASSEMBLY Description Part # PANEL ASSEMBLY, FRONT 119803 AND RIGHT, HY-6 INSULATION, FRONT, LEFT Z096845 AND RIGHT, HY-6 INSULATION, TOP, HY-6 Z096846 PANEL, FRONT, LEFT SIDE Z094139 SCREW, TRUSS HEAD, 1/4- Z012700 20, 1/2" LONG DOOR ASSEMBLY, HY-6 130858 SCREW, HEX HEAD CAP, 1/4-...
  • Page 15 Parts List DOOR ASSEMBLY Description Part # WELDMENT, FRONT PANEL, 130859 DOOR, 3-PAN WELDMENT, INSIDE PANEL, 130861 DOOR, 3-PAN PANEL, GASKET RETENTION 130863 GASKET, DOOR, 3-PAN 124849 HANDLE, DOOR 129723 CAM, DOOR UNLATCH LIFT Z074252 SCREW, PHILLIPS HEAD, 129732 8-32, 3/8" LONG SPACER, DOOR LATCH 130865 SPRING...
  • Page 16 Parts List LOWER ELECTRICAL ASSEMBLY Description Part # CHASSIS ASSEMBLY, ELEC- 148577 TRICAL, HY-6E CONTACTOR, 3 POLE, 148102 24VAC, 30FLA BRACKET, CONTACTOR, 148578 HY-6E SCREW, SLOTTED, WASHER Z074242 HEAD HEX CAP, 8-32, 1/4" LONG SCREW, SLOTTED, WASHER Z069773 HEAD HEX CAP, 10-32, 3/8" LONG BRACKET 119894...
  • Page 17 Parts List ELECTRICAL CHASSIS ASSEMBLY Description Part # HOUSING, ELECTRONIC, 148576 HY-6E CONTACTOR, 3 POLE, 148102 24VAC, 30FLA TERMINAL BLOCK, 3-POLE, Z002577 175A FUSE, 20AMP, BUSS KTKR20 Z071489 FUSE BLOCK, 2 POLE, Z096809 CLASS CC SCREW, MACHINE, ROUND Z009696 HEAD, 8-32, 1/2" LONG LUG, GROUND, 2 TO 8 AWG 106412 SCREW, SLOTTED, WASHER...
  • Page 18 Parts List UPPER ELECTRICAL ASSEMBLY Description Part # ASSEMBLY, TRANSFORMER/ 141479 CAPACITOR KNOB, TIMER 123100 ASSEMBLY, STEAMER CON- 141082 TROL BOARD ASSEMBLY, LIGHT & TIMER 137233 PC BOARD STANDOFF, 6-32, 3/4" LONG 119826 STANDOFF, 6-32, 1-1/4" 119827 LONG HARNESS, TIMER MOTOR 123120 HARNESS, JUMPER CON- 123122...
  • Page 19 Parts List BLOWER MOTOR & COVER ASSEMBLY Description Part # INSULATOR, MOTOR Z094135 ASSEMBLY, MOTOR, 146880 BLOWER ASSEMBLY, WHEEL, BLOWER Z096790 SEAL, MOTOR Z096868 LUBRICANT, SHAFT SEAL WIREFORM NT1869 ASSEMBLY, BLOWER COVER 162905 OM-HY/6E...
  • Page 20 Parts List LOWER CABINET & STEAM GENERATOR ASSEMBLY Description Part # WELDMENT, CABINET, HY-6 125727 ASSEMBLY, STEAM 141481 GENERATOR TOP, CABINET Z094198 RAIL, LOWER CENTER Z094171 RAIL, LOWER REAR Z094172 SCREW, HEX HEAD CAP, 1/4- Z005608 20, 1/2" LONG OM-HY/6E...
  • Page 21 Parts List UPPER PLATFORM ASSEMBLY Description Part # BASE, STEAMER Z094187 BRACKET, CAVITY SPACER, 126091 HY-6 NUT, HEX SERRATED, 1/4-20 NT1101 WELDMENT, CAVITY ASSEM- Z096832 BLY, HY-6 SCREW, HEX HEAD CAP, 1/4- Z005608 20, 1/2" LONG ADAPTER, DELIME 142431 CAP, DELIME 142432 ADAPTER, 1/2"...
  • Page 22 Parts List PLUMBING ASSEMBLY Description Part # CLAMP, HOSE, WORM DRIVE Z093482 CLAMP, CONSTANT TENSION,CTB-17 127523 CLAMP, CONSTANT TENSION, CTB-19 126095 CLAMP, CONSTANT TENSION, CTB-35 127525 CLAMP, CONSTANT TENSION, CTB-47 127526 CLAMP, HOSE, DOUBLE WIRE, DW-9.5 127527 ASSEMBLY, DRAIN FITTING Z099943 HOSE, DRAIN, CLEAR PVC, 1/2 ID, 14"...
  • Page 23 Parts List SHEET METAL ASSEMBLY Description Part # WELDMENT, RIGHT SIDE 139941 COVER WELDMENT, LEFT SIDE 139942 COVER ASSEMBLY, COVER, TOP, 143116 HY-6 SCREW, TRUSS HEAD, 10- Z004173 32, 3/8" LONG BRKT, TOP RETAINER 123156 SCREW, SLOTTED, WASHER Z069789 HEAD HEX CAP, 8-32, 3/8" LONG WELDMENT, LOWER FRONT 139944...
  • Page 24 Parts List HEATER ASSEMBLIES Description Part # ASSEMBLY, HEATER ELE- 141496 MENT, 208V ASSEMBLY, HEATER ELE- 141606 MENT, 408V ASSEMBLY, HEATER ELE- 141607 MENT, 480V GASKET, HEATER ELEMENT Z042366 NUT, HEX, 5/16-18 Z005602 WASHER, LOCK, 5/16 Z005656 SCREW, SELF TAPPING, Z072108 PHILLIPS, 4-24, 1/4"...
  • Page 25 Parts List LABEL ASSEMBLY Description Part # NAMEPLATE HY-6E Z094175 STEAMER LABEL, NSF Z066735 LABEL, HIGH VOLTAGE Z072141 WARNING LABEL, WARNING, HIGH Z072140 VOLTAGE LABEL, WARNING, IMPROPER Z099961 INSTALLATION LABEL, WARRANTIES VOID Z074816 LABEL, PLUMBING CODE Z072118 ADVISORY LABEL, LOCATION, WATER 100985 VALVES LABLE, DELIME HOSE,...
  • Page 26 Parts List DUAL WATER ASSEMBLY Description Part # VALVE, WATER, 3/4 INLET, Z071235 3/8 HOSE DUAL OUTLET, 24V VALVE, WATER, 3/4 INLET, 100934 3/8 HOSE SINGLE OUTLET, SCREW, SLOTTED, WASHER Z069789 HEAD HEX CAP, 8-32, 3/8" LONG LABEL, UN-TREATED WATER Z095652 SUPPLY LABEL TREATED WATER...
  • Page 27 Parts List FOOT & CASTER COMPONENTS Description Part # INSERT, FOOT, BULLET Z042505 INCERT, FOOT, FLANGED Z097615 INSERT, CASTER, 4" WHEEL, 140116 NON-LOCKING INSERT, CASTER, 4" WHEEL, 140115 LOCKING KIT, CASTER RESTRAINING, 150518 72" CABLE OM-HY/6E...
  • Page 28: Electrical Schematic

    Electrical Schematic OM-HY/6E...
  • Page 29: Service Log

    Service Log Model No: Purchased From: Serial No: Location: Date Purchased: Date Installed: Purchase Order No: For Service Call: Date Maintenance Performed Performed By OM-HY/6E...
