{ServiceManual}{Production}{Health Group}{Internal}

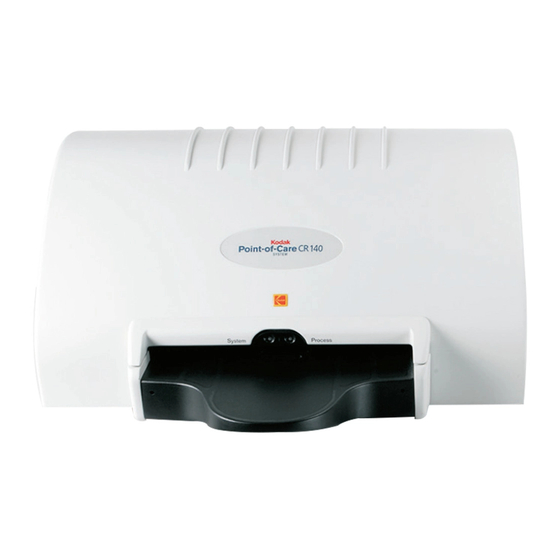

CARESTREAM Point-of-Care CR 120/140 Systems
Important
• Qualified service personnel must install this modification.
• See the Service Portal for possible updates before doing this modification.
• When doing the procedures in this document, you must use safe work practices and wear the correct personal
protective equipment (for example, safety eyewear) according to your company's standard operating
procedures.
Service Manual
for the
Publication No. 6H4866
Supersedes 6H4866
© CARESTREAM HEALTH, INC. 2011
03MAR11
07AUG09
Internal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Point-of-Care CR 120 and is the answer not in the manual?

Questions and answers

Related Manuals for Carestream HEALTH Point-of-Care CR 120

Summary of Contents for Carestream HEALTH Point-of-Care CR 120

  • Page 1 Supersedes 6H4866 07AUG09 Service Manual for the CARESTREAM Point-of-Care CR 120/140 Systems Important • Qualified service personnel must install this modification. • See the Service Portal for possible updates before doing this modification. • When doing the procedures in this document, you must use safe work practices and wear the correct personal protective equipment (for example, safety eyewear) according to your company’s standard operating...
  • Page 2 Do not operate the system before reading this manual and gaining a clear understanding of the operation of the system. If any part of this manual is not clear, please contact your Carestream Health representative for clarification. Authorized Representatives...

  • Page 3: Table Of Contents

    Table of Contents Description Page Safety and Regulatory Information ......... . . Introduction .
  • Page 4 SERVICE MANUAL Auto-Loop Adjustment Verification ........Screen Guide Adjustment (Non-Auto-Loop) .

  • Page 5: Safety And Regulatory Information

    Carestream Health reserves the right to change this information without notice, and makes no warranty, express or implied, with respect to this information. Carestream Health shall not be liable for any loss or damage, including consequential or special damages, resulting from any use of this information, even if loss or damage is caused by Carestream Health's negligence or other fault.

  • Page 6: Electrical Hazards

    SERVICE MANUAL Electrical Hazards Caution • Do not remove or open system covers or plugs. Internal circuits use high voltage capable of causing serious injury. • Fuses blown within 36 hours of being replaced by a qualified technician may indicate malfunctioning electrical circuits within the system.

  • Page 7: Recycling The Unit

    Safety and Regulatory Information Recycling the Unit In the European Union, this symbol indicates that when the last user wishes to discard this product, it must be sent to appropriate facilities for recovery and recycling. In the European Union, this symbol indicates that when the last user wishes to discard this product, it must be sent to appropriate facilities for recovery and recycling.

  • Page 8: Device-Specific Safety Information

    Tests, IEC 60825-1 Safety of Laser Products. This device complies with 21CFR 1040.10. CE Conformity This product conforms to the requirements of council directive 93/42/EEC. The Point-of-Care CR 120/140 is a Class I medical device. The Point-of-Care CR 120/140 bears the following mark of conformity. 0086 The name and address of the CE representative appears on the back of the front page of this manual.

  • Page 9: System Description

    The luminescence signal is digitized. The data is then subjected to digital image processing. The Point-of-Care CR 120/140 enables the user to read a screen quickly, and then erase it to be ready for the next scan. The unit is compact and easy to use.
  • Page 10 SERVICE MANUAL Component Names and Descriptions Part Name Description USB Board The USB board receives operational commands from the host PC workstation via the USB port, and sends the commands to the appropriate scanner component. It also transmits image data from the scanner to the PC. Motion Board The motion board controls the loader and roller motors and erase lamps.
  • Page 11 J501 Sensor J502 Sensor Sensor USB Board Board J515 Sensor J300 J305 J304 J516 Sensor J500 CB090064 LED Panel Power Supply +12V Power Supply (Rotation Motor) +5V / +12V Power Supply +15V Lamps CB090064 (Motors+Lamps) J208 J205 Group No. 1 U211 J200 J211...
  • Page 12 SERVICE MANUAL Views of the Point-of-Care CR 120/140 Scanner Front View Motor Driver Linear Slide Assembly Laser Board Inverters LED Panel Scanner Rear View Sensor Board Erase Lamp Fuses Loader Stepper Motor On/Off Switch Motion Board USB Board Power Cord...
  • Page 13 System Description Scanner Left View Linear Motor Erase Lamp Roller Sensor Roller Motor Inverters Scanner Right View Laser Unit Power Supply Unit 6H4866...

  • Page 14: Component Description

    SERVICE MANUAL Component Description USB Board The USB board receives operational commands from the host PC workstation via the USB port, and sends the commands to the appropriate unit component. It also transmits image data from the unit to the PC. USB Board Connections Connector Destination...
  • Page 15 System Description Motion Board The motion board has the following functions: • Controls the loader and roller motors • Controls the erase lamps • Reads the unit sensors and passes the information to the USB board Motion Board Connectors Connector Destination Connector 1 J206 Connectors Panel (Rollers Motor)
  • Page 16 SERVICE MANUAL Sensor Board Sensor Board Connections The sensor board is a through board used to connect the sensors to the motion board. J513 J514 J515 J516 Cassette Presence Cassette Lock Right Limit Sensor Left Limit Sensor Sensor Sensor J509 J510 J511 J512 15 x 30...
  • Page 17 System Description Sensor Wiring Colors Sensor Wire No. Wire Color Signal Sensor On Brown 5 V always (Flag in Sensor) White Blue GND always Not in use Sensor Off Brown 5 V always (Flag not in sensor) White Blue GND always Not in use Measuring voltage: 1.
  • Page 18 SERVICE MANUAL Optical Head Assembly The optical head assembly includes the laser module and the rotational motor that rotates the laser tube and a mirror during scanning. The laser module’s beam illuminates the phosphor screen and the mirror collects the light reflected from the phosphor screen and directs it to the photo multiplier.
  • Page 19 System Description Roller Motor Assembly The roller motor assembly pulls the phosphor screen from the cassette into the drum. Roller Motor Connector Note Measure the voltage when the rollers are turning at full speed. Connector Panel to the Roller Motor Pin 1 Orange Rollers forward +15V...
  • Page 20 SERVICE MANUAL Linear Slide Assembly The linear slide assembly moves the PM and the laser within the drum to read the phosphor screen. Linear Slide Stepper Motor Connector Connector Panel to the Slide Stepper Motor CB 090077 Pin 1 White Phase A Pin 2 Orange...
