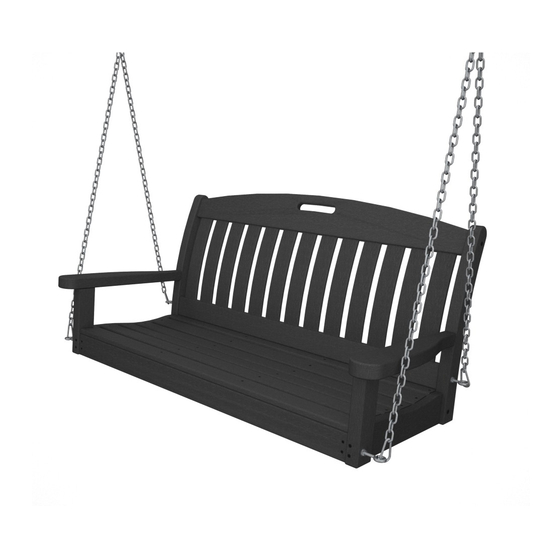

Polywood NS48 Assembly Instructions

Layout Parts

(1) Seat

(1) Back

(2) Sideframes

2 1/4" Chair bolt Qty 4

5/16 x 4 1/4" Eyebolt Qty 4

5/16 x 5" Eyebolt Qty 4

5/16 Washer Qty 4

5/16 nut Qty 4

5/16 Pin Qty 2

2 1/2" S - Hook Qty 2

Snap Hook Qty 4

5ft Chain Qty 4

Assembly Instructions

Model: NS48

10/20/09

4mm Hex Key -

included

Screwdriver

pg 1 of 3

Table of Contents

Do you have a question about the NS48 and is the answer not in the manual?

Page 1 Layout Parts (1) Seat Assembly Instructions (1) Back Model: NS48 (2) Sideframes Layout Hardware 2 1/4" Chair bolt Qty 4 5/16 x 4 1/4" Eyebolt Qty 4 5/16 x 5" Eyebolt Qty 4 5/16 Washer Qty 4 Tools Needed 5/16 nut Qty 4...
Page 2 *Note: Prep eyebolt with nut and washer Swing Assembly Take nut to end of thread. Attach the side frames using (2) 2¼" bolts and (2) 4¼" eyebolts with nuts and washers Insert pins into back assembly Attach the seat using (2) 5"...
Page 3 Hang the swing Tip: hanging mounts should be about 55" apart Adjust this chain for height (9ft porch max) Adjust this chain for comfort S-hook Note: once comfort is set, S-hook can be closed with tool Tip: Seat should measure about 18" from floor Snap hooks pg 3 of 3...
Page 4 Cleaning/Maintenance Poly-Wood furniture is made of HDPE plastic resin that has been purified and UV protected. It is generally cared for and cleaned with soap and warm water. For certain stains and additional cleaning power, a 1/3 bleach and 2/3 water solution can be used without affecting the color. Also, a popular method of cleaning is a high-pressure power wash.
