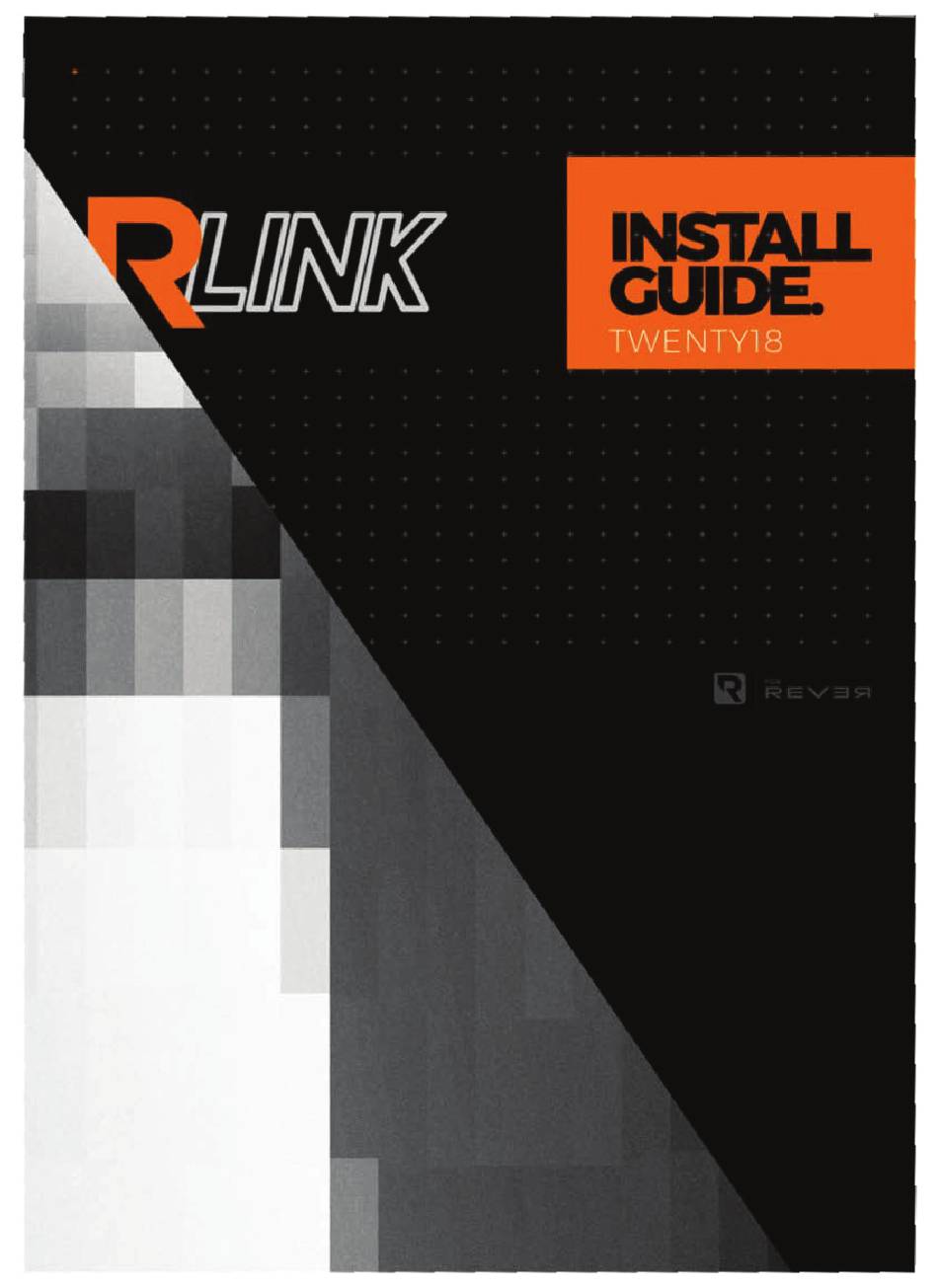

REVER RLINK Install Manual

Motorcycle gps tracker and anti-theft device

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the RLINK and is the answer not in the manual?

Questions and answers

Summary of Contents for REVER RLINK

Page 2 To get started with RLINK, install the RLINK Smart Device on your bike using this guide. For more info, visit RLINK.com/help...
Page 3 Download the REVER app and sign up for an account. Then, enter your IMEI and activate your subscription account.
Page 4: Table Of Contents
Components Plan an install Mounting Switched power Attach GPS Plug in main module 10-11 Testing the installation RLINK Modes 13-15 RLINK Indicator Lights Alert States 17-18 Backup Battery Sensitivity Level Firmware Updates RLINK Features 20-21 RLINK User Interface 22-23 RLINK Icon Key...
Page 5: Components
Components RLINK Module Harness Hook & Loop / Cable-ties...
Page 6: Plan An Install
Do not route wires near sharp edges which could cut wires and create a short. Do not mount components near high heat sources such as the exhaust pipes. Do not install the RLINK Module under any metal. The internal antenna can transmit through ﬁberglass, leather, foam, or plastic.
Page 7: Mounting
Select a suitable location under the seat or side cover that the module can lay as ﬂat as possible. Electrical Connections The RLINK harness has three wires. You’ll need to connect these to your bike. Red: Install the terminal ring of this wire directly to the battery positive post.
Page 8: Switched Power
Yellow Ducati TECH TIP RLINK requires proper installation of the switched power wire to function correctly. Switched power is hot (12 volts) when the ignition is on, zero volts when off. Common switched power sources are the tail light, (NOT the brake light), the license plate light, and some accessory plugs.
Page 9 (not the brake light) or the license plate light power wire. If attaching the RLINK white wire to any LED light sources, Please ensure that you are connecting to the positive side.
Page 10 Plug in RLINK Plug the installation harness into the RLINK module. Secure the module with the included hook & loop/cable ties.
Page 11 TECH TIP RLINK includes a back-up battery to protect your motorcycle in case of theft. The back-up battery will power the device when disconnected from power. To disconnect the device without triggering the back-up battery, unplug the main harness within 5 seconds of turning on the motorcycle’s ignition.
Page 12: Testing The Installation
Testing the installation Once the harness is plugged in conﬁrm that there are lights illuminated on the RLINK module to conﬁrm you have good power and ground. Turn the ignition switch of the motorcycle to the “on” position. Conﬁrm that a red light is now illuminated solid on the RLINK module.
Page 13: Rlink Modes
RLINK Modes Tracking By default, your RLINK system is always armed and prepared to track movement and can be seen on the track screen of the app. All rides are reported in the import ride section. Theft Geofence In addition, when your motorcycle’s ignition is turned to off, RLINK automatically creates a 500 foot safe zone around your motorcycle, in which RLINK will notify you via push notiﬁcation...
Page 14 Online Mode When your RLINK is online, it has actively communicated with the RLINK server within the last 60 seconds. RLINK will enter the online mode if your motorcycle’s ignition is on or upon being woken up by detecting events, such as shock, tilt, ignition on or battery disconnect.
Page 15 WARNING: Your motorcycle is not protected when in Transport Mode. Transport mode cannot be disabled remotely from the REVER Mobile App. To turn off transport mode, Quickly turn the ignition On/Off, which will turn on RLINK so that it can attempt to secure a cellular connection.
Page 16: Rlink Indicator Lights
RLINK Indicator Lights RLINK SYSTEM STATUS BY LED LIGHTS SYSTEM STATUS LED LIGHT BEHAVIOR Solid red light. Note: if ignition on, LED will start solid, then within a few seconds ﬂash the below patterns (if Ignition On applicable) then default back to solid and repeats this cycle.
Page 17: Alert States
Disable Alerts with Ignition On Event Alerts are disabled when the motorcycles ignition is turned on and will revert back to the alert state set by the RLINK Owner via the REVER app once motorcycle ignition is returned to off. The...
Page 18: Backup Battery
RLINK detects your motorcycle’s ignition state being turned on. Back-up Battery RLINK has a built in back-up battery to power the device if a thief attempts to disconnect the battery. The following steps are required to properly disconnect the RLINK smart device without triggering the back up battery: Turn on the ignition switch.
Page 19: Sensitivity Level
Sensitivity Level The sensitivity level of your RLINK device can be adjusted in the RLINK Settings section of the REVER app. Please note, to adjust the sensitivity level, your motorcycle must have its ignition on. Firmware Updates RLINK can receive over-the-air (OTA) ﬁrmware updates when new features are released.
Page 20: Rlink Features
RLINK automatically tracks all your rides and rides stats upon ignition on, therefore making it easy for you to search and view the past history of your rides directly from the REVER app. To access your past rides and to publish them to the REVER app,...
Page 21 Last Communication RLINK provides a timestamp of its last communication with the RLINK Server. You can review your RLINK’s last communication in the RLINK extended dashboard in the REVER app.
Page 22: Rlink User Interface
RLINK User Interface in the REVER App RLINK Mapview Alerts On/Off RLINK Battery Status Overlay Motorcycle Location...
Page 23 RLINK Additional Features Swipe from right to left for: Import Ride Data Alert Settings Transport Mode Share Location...
Page 24: Rlink Icon Key
RLINK Icon Key ICON DESCRIPTION IGNITION ON IGNITION OFF ALERTS ON ALERTS OFF BATTERY STATUS & VOLTAGE...
Page 25: Rlink Trouble Shooting
RLINK Trouble shooting On the track screen, tap the layers icon. Tap “RLINK” box for IOS, or Tap “MY BIKE” box for RLINK overlay not showing on Track Screen android. The icon should switch to an Orange outline and the RLINK overlay should now appear on the track screen.
