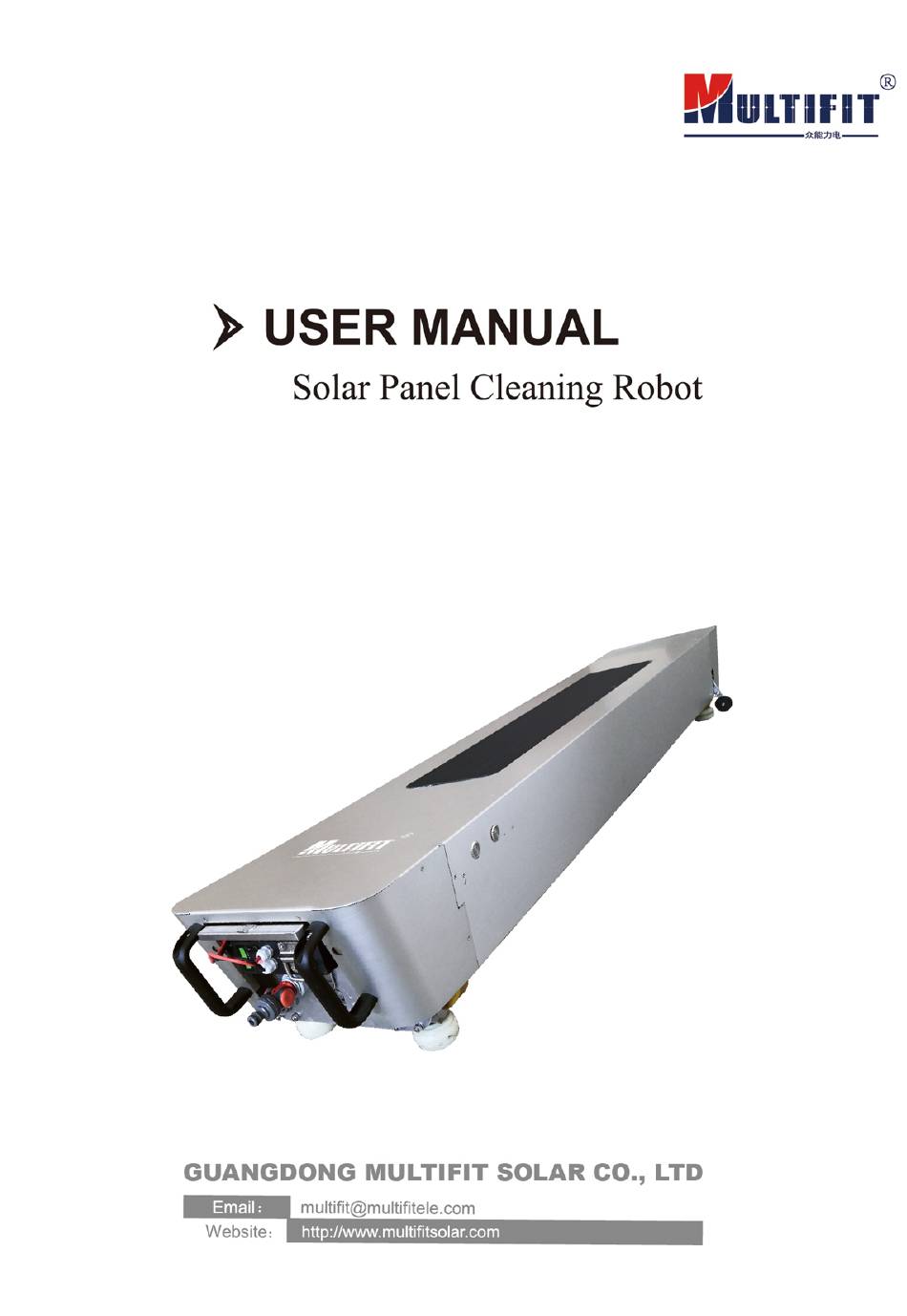

MULTIFIT MULR Series User Manual

Solar panel cleaning robot
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MULR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTIFIT MULR Series

  • Page 2: Table Of Contents

    Table of Contents Safety Manual..........................1 Robot Function...........................2 Robot Parts Function........................4 Work Preparation........................8 Robot Operation........................12 Alarming...........................14...
  • Page 3 Thank you for choosing Multifit Solar Panel Cleaning Robot (refer to as: G1 Robot Model No.MULR-***) Please read the product manual and safety manual carefully before using this product. The person in charge of the robots should ensure that all users read and follow this manual.

  • Page 4: Safety Manual

    Guangdong Multifit Solar Co., Ltd. Forbidden • Use to clean other products beyond solar panels. Use Restrictions Multifit Solar Panel Cleaning Robot is designed to be used in an environment suitable for human survival, and cannot be used in a corrosive or explosive environment.
  • Page 5 • Must understand the product safety instructions and instructions in the user manual. • Must be familiar with local safe working rules. • Once the robot has a safety problem, immediately contact Guangdong Multifit solar Co., Ltd. Guangdong Multifit Solar Co., Ltd.

  • Page 6: Robot Function

    Robot Function The functions of the robot are introduced here. Slow Start Robot protection mechanism. When the robot starts, it runs slowly for the first 3 seconds, about 5 meters per minute, to protect the equipment from falling off the solar panel. Manual Cleaning Mode The specified position of the solar panel can be manually cleaned, and the direction and speed of manual cleaning can be adjusted.

  • Page 7: Robot Parts Function

    Robot Parts Function Check the accessories,the quantity of each part is shown on ( ). Robot ( ×1 ) User Manual ( ×1 ) Power Adapter ( ×1 ) The power adapter varies depending on the country/region. Battery Charger ( ×1 ) Lithium Battery 24V-10AH/20AH ( ×1 ) Remote Control ( ×1 ) Micro USB Cable ( ×1 )
  • Page 8 Product Inspection 1. Robot Internal View 1. Self-charging Solar Panel 2. Raindrop Sensor 3. Outer Top Shell 4. Power Control Box (1) (Including circuit boards, batteries,integrated circuits and solar controller) 5. Side Shell 6. Carrying Handles 7. Walking wheel 8. Side Shell 9.
  • Page 9 2. Robot External View Power Switch Start Switch Press the start switch to start the robot Power Control Box Lock Power Control Box Cover Water Connector Rotating Shaft Self-Charging Solar Panel Raindrop Sensor...
  • Page 10 Remote Control & Charger [Pause] Button [Start] Button [Stop] Button [Scrubbing] Button ] Button [Speed Up] Button [Right] Button [Left] Button [Slow Down] Button [Mode] Button [Settings] Button Battery & Charger Battery details Battery Charger 1.Charger Cover 2.Charger Port 3.Battery Cable 4.Battery Switch/Battery Power Button 5.Battery Power Indicator 6.Handle...

  • Page 11: Work Preparation

    Work Preparation Install/Replace SIM Card SIM card installation method： 1. Take off the lock of Power Control Box; 2. Unplug the battery cable and take out the battery from box; 3. Press the bottom holder switch to the middle, then take out the 4G Module. Do not unplug power cable! 4.
  • Page 12 Install/Replace Battery The battery of robot should be charging at the first use. Battery can be charging even there is still electricity left. Battery can be used in condition of unfinished charging. The full-powered battery would be consumed even if it is not working. figure 1 figure 2 1.
  • Page 13 Battery Power Display 1. Press the switch button and the battery power percentage will be showed on the screen. 2. Suggest to charging the battery once power is less than 20%. Note: Battery power may deviate when in different condition and environment. Battery Charging 1.
  • Page 14 3. Remote control is connected with the robot automatically. Robot & Phone Apps 1. Start Robot 2. Scan the QR code or search the mini program “Multifit Robot”. 3. Register and login on the mini program. 4. Click the [Add Device] button to add Robot.

  • Page 15: Robot Operation

    Robot Operation Please check the following precautions before starting the robot 1.Put on the corresponding solar panel array refer to the robot model and so lar panel size. The walking wheel should be fitted to the solar panel frame. 2.Check the position of robot,whether it is placed in the right position. Check the position of robot,the support wheel should be close to the solar （Figure 1）...
  • Page 16 Phone Apps Control 1. Press the [ON] Button, the robot starts cleaning at an initial speed of 18 m/min. 2. Press the [OFF] Button, the robot will stop. 3. During the cleaning,press the [Scrubbing] button, robot repeatedly cleans within 30cm of the current position to the left/right.

  • Page 17: Alarming

    Automatic Cleaning Mode Phone Apps Control 1. Press the [ON] Button and [Automatic] button to see the automatic operation diagram. 2. You can select [mode 1], [mode 2], [mode 3], [mode 4] and [customized mode]. 3. Select the required automatic mode and click the [Save] button to save. 4.
