INSTALLATION MANUAL

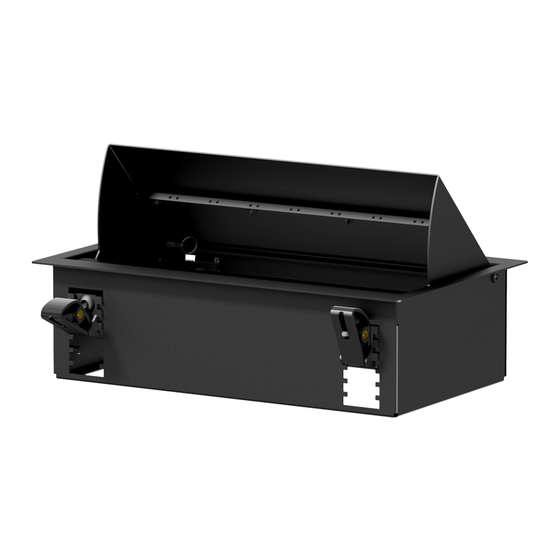

CASY024 AND CASY028 IN-TABLE MOUNT BOXES

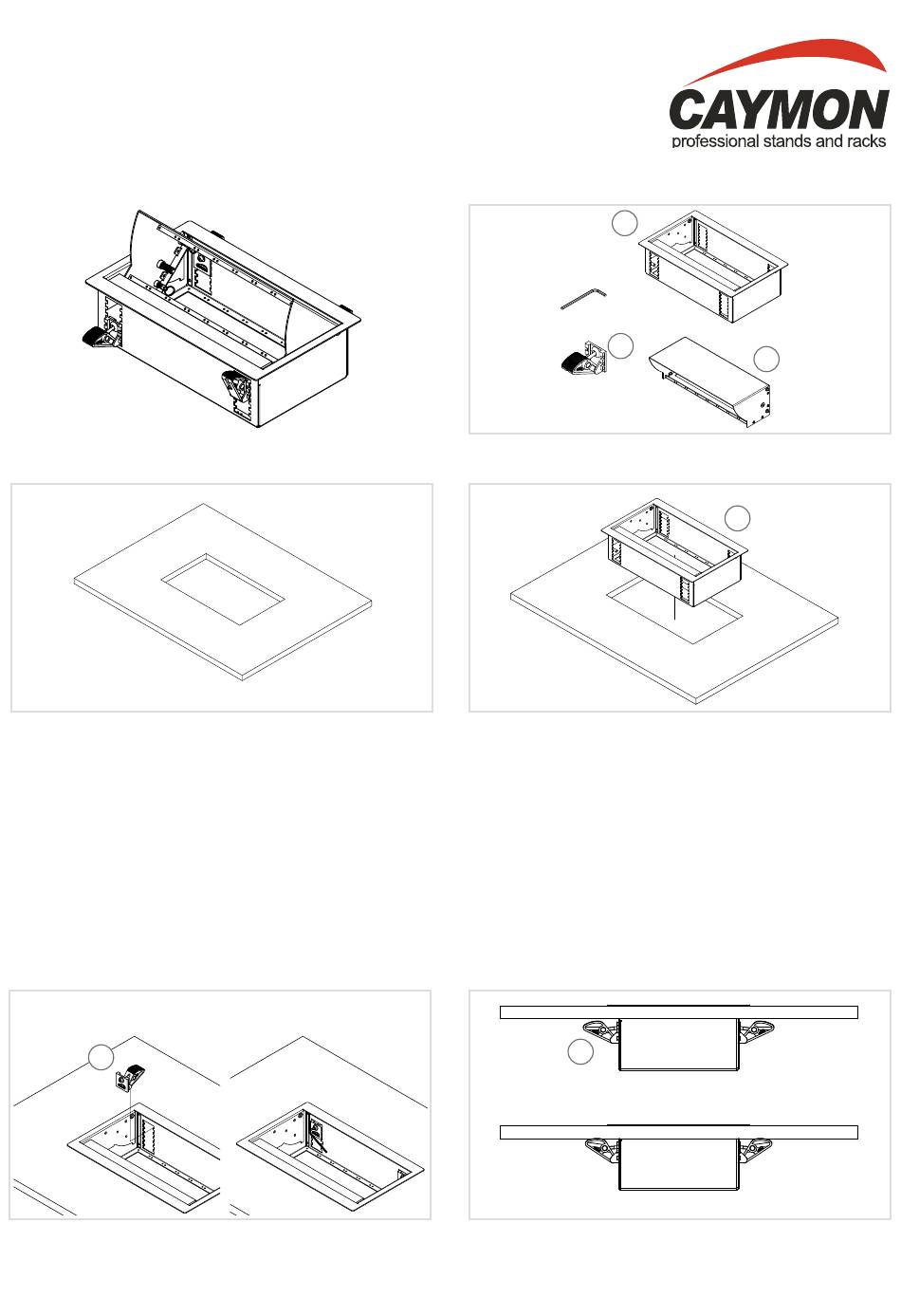

STEP 1
Cut a hole on the desired mounting location. Make sure
the dimensions are matching the cut-out measurement
for the installing in-table mount box.
•
CASY024 = 161 x 175 mm (W x H)
•
CASY028 = 305 x 175 mm (W x H)
Double check if there are no cables or other
obstructions behind the mounting surface before
making the cut-out.
STEP 3
C
Secure the in-table mounting box in place by installing
the BlindSnap™ clamp and tightening the bolt using
the included Allen key.
PARTS AND ACCESSORIES
A
C
x4
STEP 2
Place the in-table mount box in the cut-out, making
sure it is facing the right direction. It can be mounted
in surfaces with a thickness ranging from 6 to 50 mm.
STEP 4
C
Tightening the bolt will press the clamps against the
mounting surface and secure the in-table mounting
box in place.
B
A
Advertisement
Summary of Contents for CAYMON CASY024
- Page 1 6 to 50 mm. • CASY024 = 161 x 175 mm (W x H) • CASY028 = 305 x 175 mm (W x H) Double check if there are no cables or other obstructions behind the mounting surface before making the cut-out.
- Page 2 INSTALLATION MANUAL CASY024 AND CASY028 IN-TABLE MOUNT BOXES STEP 5 STEP 6 After installing your desired CASY modules, the Another set of spring loaded pins keeps the lid from module insert can be mounted in the box. closing, push in these pins and close the lid until the next set of pins touches the box.
- Page 3 INSTALLATION MANUAL CASY024 AND CASY028 IN-TABLE MOUNT BOXES PRECAUTIONS • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS • THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY.
