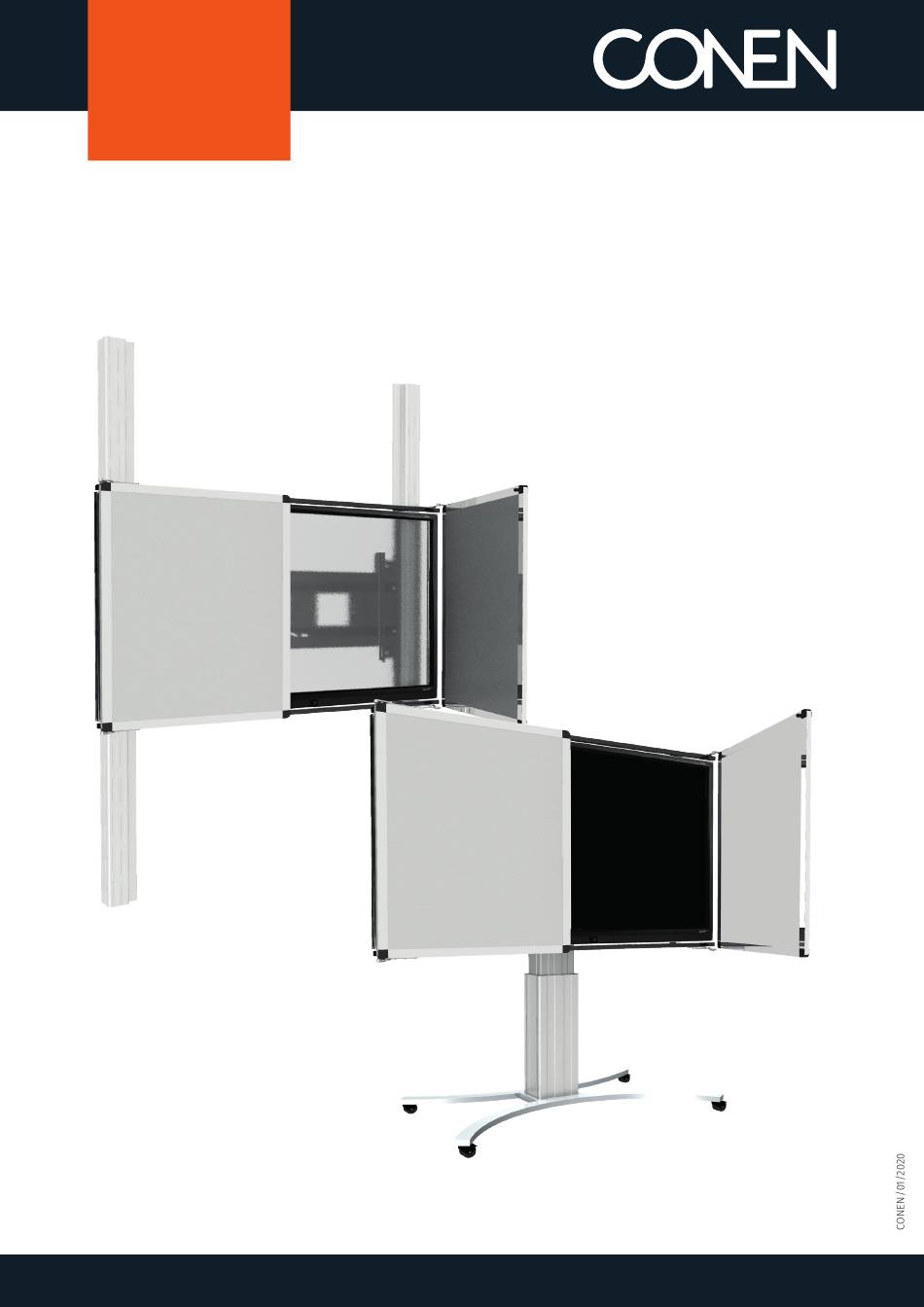

- Page 1 S(L)WBW-... ASSEMBLY INSTRUCTION Whiteboard wings for display moutns Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com...
- Page 2 2 x Side wings 4 x M8 x 16 12 x 4,2 x 25 Lenshead Allen Self-tapping screw Buffer screw with flange Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com...
- Page 3 MOUNTING INSTRUCTIONS Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com...
- Page 4 Please check the sliding path on an manually height-adjustable pylon Hinge systems. If necessary, move the upper limit stoppers up or down. & Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com...
