Summary of Contents for MAGMATIC PRISMA DRIVER 8IP

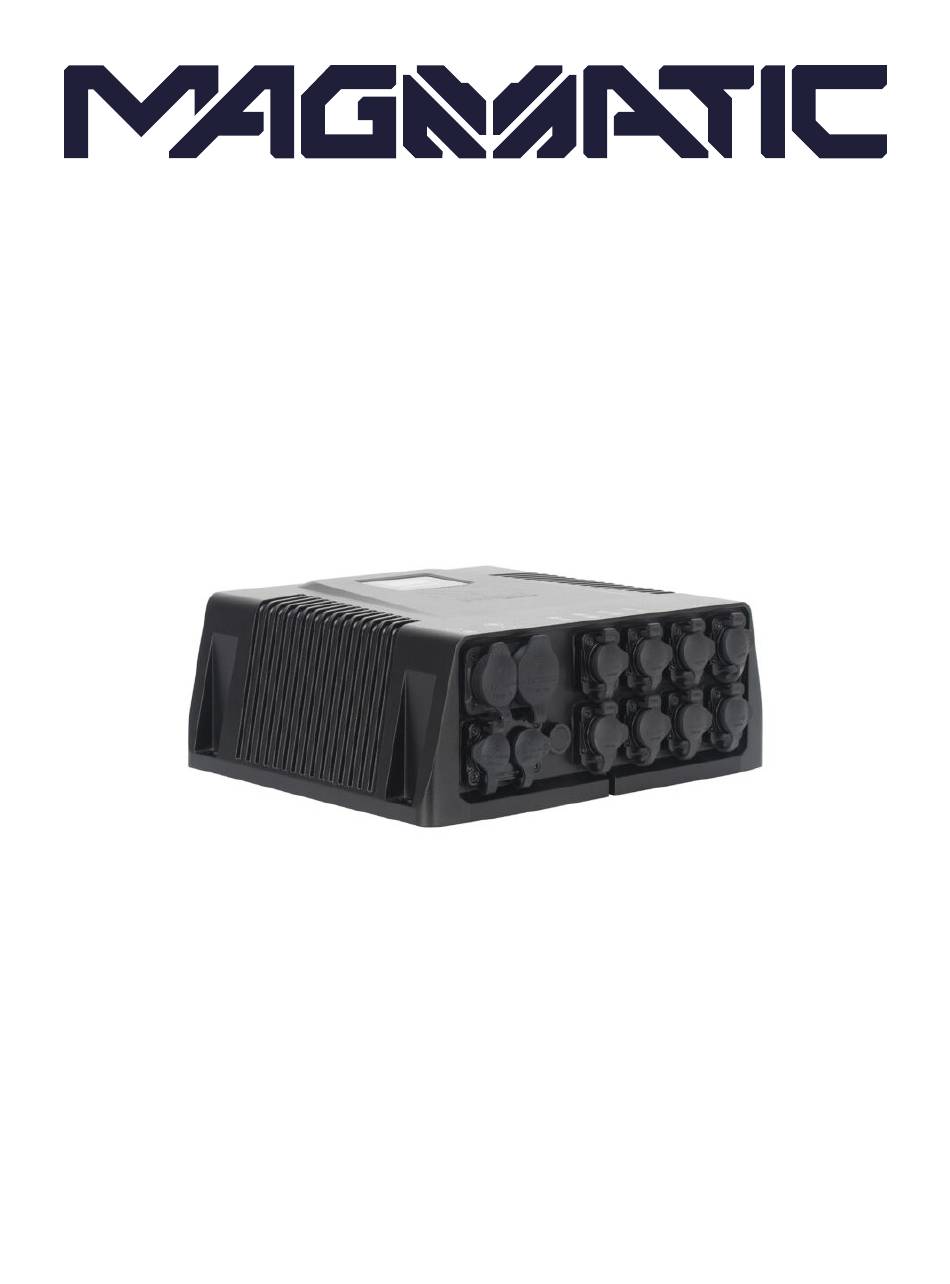

Page 1 PRISMA DRIVER 8IP User Manual...
Page 2 MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Instructions System Menu DMX Channel Functions and Values Dimmer Modes Specifications Dimensional Drawings...
Page 4: General Information
Please recycle whenever possible. BOX CONTENTS Twist-locking power cable (x1) CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com...
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the prod- uct, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such acces- sories, nor for the safe return thereof.
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box.
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the informa- tion printed in this manual.
Page 8 SAFETY GUIDELINES • DO NOT TOUCH the driver housing during operation. Turn OFF the power and allow approximately 15 minutes for the driver to cool down before servicing. • DO NOT shake driver, and avoid brute force when installing and/or operating. •...
Page 9: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this driver, please refer all other service issues to an authorized MAGMATIC service technician. Should you need any spare parts, please order genuine parts from your local MAGMATIC dealer.
Page 10: Overview
OVERVIEW...
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS FLAMMABLE MATERIAL WARNING Keep driver a minimum of 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THE DRIVER IF YOU ARE NOT QUALIFIED TO DO SO! Driver MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations.
Page 12 This driver features eight (8) 4-pin locking output sockets, each of which can accommodate a connec- tion to a single Magmatic Prisma Mini series lighting fixture. This driver is suitable for use with the following Magmatic lighting fixtures: • Prisma Mini BAR 20 •...
Page 13: System Menu
SYSTEM MENU The fixture includes an easy to navigate system menu. The control panel (see image below) located on the fixture provides access to the main system menu, where all necessary system adjustments can be made. During normal operation, pressing MODE button once will access the fixture’s main menu. Once in the main menu you can navigate through the different functions and access the sub-menus with the UP and DOWN buttons.
Page 14 SYSTEM MENU Magmatic Prisma Driver 8IP System Menu Default settings shown in bold Supports Software Versions: 1.01 ADDRESS Address XXX 001 - 504 Basic USER MODE Standard Extended Black Status Lost DMX Hold 30-second screen Display On / Off time-out...
Page 15 SYSTEM MENU Magmatic Prisma Driver 8IP System Menu Default settings shown in bold Supports Software Versions: 1.01 2.0s 3.0s 4.0s 5.0s Dim Mode 6.0s (continued) 7.0s 8.0s 9.0s 10.0s ADDR Disp Set Disp CH Secondry Secondary mode Linear Square Dim Curve Inv.
Page 16 SYSTEM MENU Magmatic Prisma Driver 8IP System Menu Default settings shown in bold Supports Software Versions: 1.01 Set device as Pri- Primary On / Off mary FUNCTION (continued) Restory factory DFSE On / Off default settings Current fixture run Current...
Page 17: Dmx Channel Functions And Values
DMX CHANNEL FUNCTIONS & VALUES Magmatic Prisma Driver 8IP: DMX Channels / Functions Supports Software Versions: 1.01 CHANNEL DMX VALUE FUNCTION 8-CH 9-CH 12-CH Ext 000 - 255 LED Signal Output 1 000 - 255 LED Signal Output 2 000 - 255...
Page 18 DMX CHANNEL FUNCTIONS & VALUES Magmatic Prisma Driver 8IP: DMX Channels / Functions Supports Software Versions: 1.01 CHANNEL DMX VALUE FUNCTION 8-CH 9-CH 12-CH Ext Dimmer Delay Time (continued) 0.3 s 0.4 s 0.5 s 0.6 s 0.7 s 0.8 s 0.9 s...
Page 19: Dimmer Modes
DIMMER MODES Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre, Stage2).
Page 20: Specifications
SPECIFICATIONS CONSTRUCTION Rugged IP65 Housing Easy Keyhole Slots for Wall/Surface Mounting CONTROL Multiple DMX Channel Modes Onboard 4 Button Touch Control Panel DMX-512 and RDM Protocol Support CONNECTIONS 8x 4pin locking output sockets (8 PRISMA MINI fixtures max) Locking 5pin XLR Connector In/Out IP65 Locking Power Connector In/Out With Wired Digital Communication Network SIZE / WEIGHT...
Page 21: Dimensional Drawings
DIMENSIONAL DRAWINGS...
