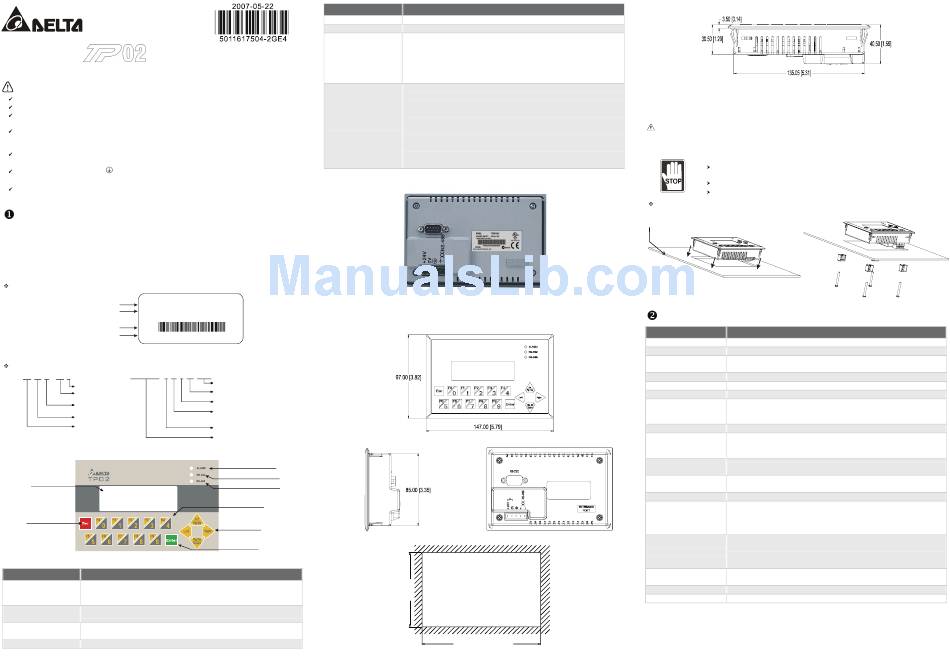

Delta Electronics Terminal Panels Series TP02G-AS1 Instruction Sheet

http://www.delta.com.tw/industrialautomation/
Terminal Panels Series
Instruction Sheet
Warning
Please read this instruction carefully before use.
Switch off the power before wiring.
The display panel of TP02 series is waterproof. But please prevent grease, corrosive liquids and sharp objects from
contacting the TP02 series.
DO NOT connect input AC power supply to any of the RS-485
The TP02 series require 24VDC input power.
communication port; otherwise serious damage may occur. Check all the wiring again before switching
on the power.
DO NOT touch any terminal when the power is switched on. DO NOT touch any internal circuit in 1
minute after the power is switched off.
Make sure the groud terminal is correctly grounded in order to prevent electromagnetic
interference.
Please use the fixed support accessory which is packed together with the product provided by Delta. DO
NOT tighten the screws out of the normal torque specifications; otherwise serious damage may occur.

Introduction

1.1 Model Explanation

Thank you for choosing Delta TP Series. TP02G-AS1 has the features of high resolution 160×32 dots. It provides
multilingual display and two built-in communication ports, one is for RS-232 and the other is for RS-485. RS-232
and RS-485 can be used simultaneously. Besides, it also supports communication and alarm LED indicators. The
user can purchase program copy card (optional) to copy settings and programs quickly and save download time.

Nameplate Explanation

Production model
MODEL :
Power input spec.
POWER INPUT :
Barcode and
serial number
Version VX.XX TP02GAS1W6050004
DELTA ELECTRONICS, INC
NOTE: The words of "MADE IN XXXXX" will be different due to the manufacturing location. Please refer to the actual product
for exact description.

Model / Serial No. Explanation

TP02GAS 1 W 6 05 0004
TP 02 G - AS 1
Reserved
Reserved
T: Text mode
G: Graphic mode
LCD Spec.
Series name

1.2 Product Outline

Displaying Area
Escape / Exit Key

1.3 Panel Function Explanation

PANEL COMPONENT EXPLANATION
Status 1: When power is on, LED will blink slowly for three times.
Alarm LED Indicator
Status 2: When there is an abnormal situation, LED will blink quickly along with
(RED)
an alarm sound.
RS-232 LED Indicator
LED will blink when transmits program and communicates via RS-232.
(Yellow)
RS-485 LED Indicator
LED will blink when communicates via RS-485.
(Green)
Displaying Area Liquid Crystal Module display area. It is used to display current program status.
PANEL COMPONENT
Escape / Exit Key
Enter Key
Arrow Keys
Function Keys

1.4 Back Panel

TP02G-AS1
24Vdc 3W

1.5 Dimension

Front panel (unit: mm [inch])
MADE IN XXXXXXX
Production serial number
Production weeks
Production year (2006)
Production plant
(W: Wuijang; T: Taoyuan)
Version
Production model
Right side diagram (unit: mm [inch])
Alarm LED Indicator
RS-232 LED Indicator
RS-485 LED Indicator
Function Keys
Arrow Keys
Mounting dimension (unit: mm [inch])
Enter Key
EXPLANATION
It is used to cancel an incorrect input, or to exit a programming step.
It is used to input a value or accept a programming command.
UP / Pg Up: It is used to increase the value or move up one page.
Pg Dn / DOWN: It is used to decrease the value or move down one page.
Left: This key is left direction key and it can be used to select the position of the
value.
Right: This key is right direction key and it can be used to select the position of
the value.
F0 / 0: It is used as a constant 0, or the user can define it as function F0.
F1 / 1: It is used as a constant 1, or the user can define it as function F1.
F2 / 2: It is used as a constant 2, or the user can define it as function F2.
F3 / 3: It is used as a constant 3, or the user can define it as function F3.
F4 / 4: It is used as a constant 4, or the user can define it as function F4.
F5 / 5: It is used as a constant 5, or the user can define it as function F5.
F6 / 6: It is used as a constant 6, or the user can define it as function F6.
F7 / 7: It is used as a constant 7, or the user can define it as function F7.
F8 / 8: It is used as a constant 8, or the user can define it as function F8.
F9 / 9: It is used as a constant 9, or the user can define it as function F9.
RS-232
Extension port
5 PIN terminal / Wire gauge: 12-24 AWG / Torque: 4.5 lb.-inch
Back panel
85
[3.35]
135~136.5[5.31~5.37]
Thickness Range 0.5~9mm
Vertical view (Unit: mm)

1.6 Installation

Please insert TP02 series to the opening hole of panel and tighten the screws. However, if a firm mounting TP02
series to the panel is needed, please use the mounting fixed support accessory which is packed together with TP02
series, then insert the fixed support in the back and tighten the screws.
If the fixed support is not installed well, Delta will not guarantee the waterproof function. The screw torque
should be 4-5(kg-cm). DO NOT exceed this specification when tightening the screws; otherwise TP02 series may be
damaged. Please leave sufficient space (more than 50mm) around the unit for heat dissipation.
Do not install and mount TP02 series in the following environment.
A location subjected to Airborne dust, metallic particles, oil and smoke, corrosive or
flammable gases and liquids.
A location where temperature and humidity will exceed specifications.
A location where vibration and shock will exceed specifications.
The flat surface should be a UL Type 4 "Indoor Use Only" enclosure or equivalent (IP65 / NEMA4). Please
refer to the figures below.
Thickness: 0.5~9.0mm

Function Specifications

ITEM TP02G-AS1
Screen Type STN-LCD
Display Color Monochromatic
The back-light automatic turn off time is 1 ~ 99 minutes (0 = do not turn off)
Backlight
(The back-light life is about 50 thousand hours at 25°C)
Resolution 160 x 32 dots
Display Range (W) x (H) = 72 x 22 (unit: mm)
Contrast Adjustment 15 levels of adjustment
ASCII: Alphanumeric (including European characters)
Language / Font Taiwan: (Big 5 codes) Traditional Chinese Fonts
China: (GB2324-80 codes) Simplified Chinese Fonts
Font Size ASCII: 5 × 8, 8 × 8, 8 × 12, 8 × 16
1. Power on indication (Blink for three times)
Alarm LED Indicator (RED) 2. Communication error alarm
3. Special indication by user programming
RS-232 LED Indicator
It will blink when transmitting program and communicating by using RS-232.
(Yellow)
RS-485 LED Indicator
It will blink when communicating by using RS-485.
(Green)
Program Memory 256KB flash memory
Unsynchronized transmission method: RS-232
Serial Communication Port Data length: 7 or 8 bits, Stop bits: 1 or 2 bits
RS-232 (COM1) Parity: None/Odd/Even, Transmission speed: 4,800bps ~115,200bps
RS-232: 9 PIN D-SUB male
Unsynchronized transmission method: RS-485
Extension Communication
Data length: 7 or 8 bits, Stop bits: 1 or 2 bits
Port
Parity: None/Odd/Even, Transmission speed: 4,800bps ~115,200bps
RS-485 (COM2)
RS-485: 5 PIN removal terminal
Extension Interface 1. Update firmware version
2. The slot for program copy card
Battery Cover DC 3V battery for HMI
5 PIN Removal Terminal Include DC 24V input and RS-485 communication input
