Vicon Valerus Shadow Elite Client Workstation Small Form Factor Quick Start Manual

This sheet covers the installation of the Valerus Elite Client Workstation small form factor. This system should
only be installed by a qualified technician using common hand tools and approved materials in accordance
with the National Electrical Code ANSI/NFPA 70, state and local wiring codes.
Front Panel Connections & Controls (i3)
Rear Panel Connections & Controls (i3)

Unpacking and Installation

Unpack the unit and place it in the mounting location. Hard drives are preinstalled from the factory.
•
Keyboard and mouse are included with the unit.
•
Connect monitor(s) using the DP or HDMI ports (refer to figures above). DP to HDMI adapters are included as
needed.
Note: If the system includes the Quad Monitor Support option, connect the monitors using the four mini-DP
ports on the add-on card (see picture above). Do not connect monitors to the onboard video connectors.
Use the mini-DP to HDMI adapters provided in the box.
•
Connect unit to the network using the WAN (Internet) port. Refer to figure above. The port is setup to
procure an IP address automatically using DHCP.
• Attach the power cord and power the unit on. It is recommended to use an Uninterrupted Power Supply
(UPS) to prevent data loss/corruption and/or drive failures due to sudden power loss.
Product specifications subject to change without notice. Copyright ©2021. All rights reserved.
Vicon and its logo are registered trademarks and Valerus and its logo are trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC. TEL: 631-952-2288 FAX: 631-951-2288 TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: +44 (0) 1489 566300 WEB: vicon-security.com
Quick Start Guide: Shadow Elite Client Workstation
Front Panel Connections & Controls (i7)
Rear Panel Connections & Controls (i7)

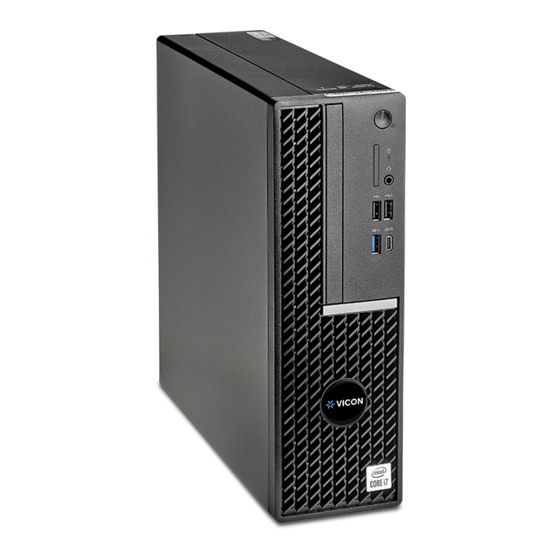

Small Form Factor
Vicon part number
8009-8323-70-00
