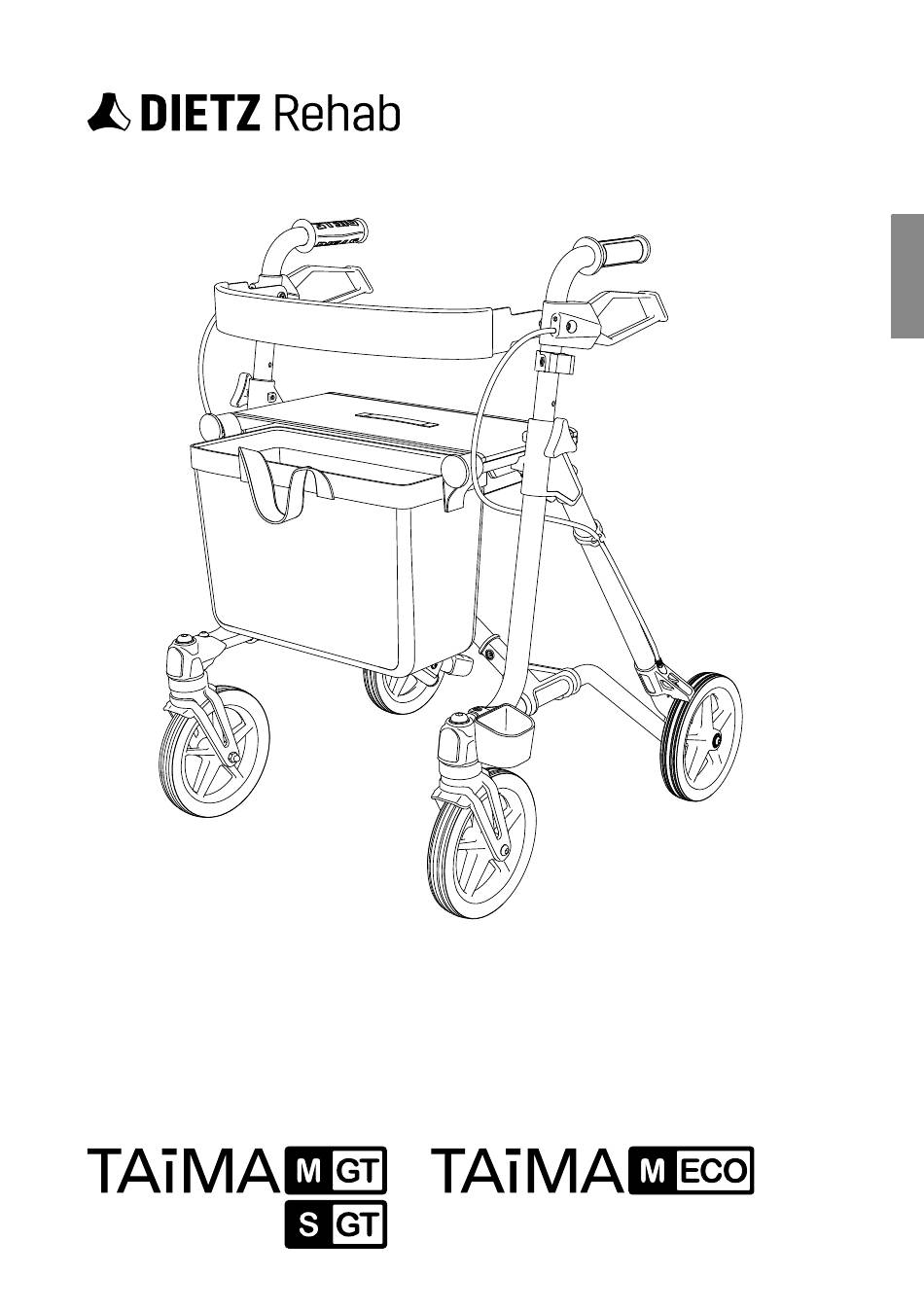

- Page 1 User manual Version 3.2.0 EN Lightweight rollator...
- Page 2 USER MANUAL Thank you for purchasing a TAiMA rollator from DIETZ. The TAiMA rollator is exceptionally light, If you have any questions or require additional strong and can easily be folde to stow information, please contact the specialist away. It provides ideal support during all retailer which supplied the wheelchair to you.
-
Page 3: Table Of Contents
CONTENT 01 Important information Umbrella (optional) ....12 Accessories/add-ons from external suppliers .12 Intended use ......4 Indication . -
Page 4: 01 Important Information
01 IMPORTANT INFORMATION 02 PRODUCT DESCRIPTION INTENDED USE SIGNS AND SYMBOLS The TAiMA rollator is designed for persons These symbols indicate passages of text that with restricted mobility with a maximum body are helpful for using and operating the product weight of 150 kg for use as a walking aid and, in every day life. -
Page 5: Accessories (Optional)
02 PRODUCT DESCRIPTION ACCESSORIES (OPTIONAL) The following optional accessories are available for your TAiMA rollator: Shopping bag for rollator Extended push handles Art. 290101 for M_GT & M_ECO only for M_GT & M_ECO Art. 290102 for S_GT Art. 290106 Backrest „Comfort“ soft, extra wide Umbrella to protect from sun or rain Art. -
Page 6: 03 Build Up The Rollator
03 BUILD UP THE ROLLATOR SETTING UP THE ROLLATOR WARNING The TAiMA rollator is fully assembled at Risk of trapping! Take care not to trap your the factory. The following chapters describe hands, fingers or clothing when operating the how to set up the rollator, adjust it to suit folding lock and when unfolding/folding the your requirements and enable you to use it rollator! -
Page 7: Using The Rollator
04 USING THE ROLLATOR USING THE ROLLATOR both brakes evenly. Walk upright and look forwards to be Familiarise yourself thoroughly with your TAiMA able to avoid any upcoming obstacles rollator before using it for the first time so early. Walking backwards with your that you feel safe and confident handling the rollator is difficult, and not rollator. -
Page 8: Braking
04 USING THE ROLLATOR BRAKING BRAKE ADJUSTMENT To reduce speed while walking just pull both Check that the brakes are correctly adjusted as levers evenly and gently upwards. Always apply follows: the same amount of power on both brake The brake lever and the Bowden cable levers A. -
Page 9: Folding Up Your Rollator
05 ACCESSORIES FOLDING UP YOUR ROLLATOR ATTACHING AND USING ACCESSORIES It is easy to fold up the TAiMA rollator. It can Your TAiMA rollator is equipped with a shopping stand freely when folded, which has the great bag, backrest and cane holder as standard. advantage of saving storage space. -
Page 10: Shopping Bag (Optional)
05 ACCESSORIES SHOPPING BAG (OPTIONAL) WARNING Your TAiMA rollator can optionally be equipped Tipping danger! Before you sit down, make with a shopping bag that is approved for sure that the backrest is not turned upwards or carrying up to 12 kg (TAiMA S-GT) or 15 kg downwards. -
Page 11: Tray (Optional)
05 ACCESSORIES ONE HAND BRAKE SYSTEM (OPTIONAL) If having the cane holder positioned on the left- hand side would be more practical for you, the If one of your hands is not sufficiently strong upper and lower sections of the cane holder to operate the brake safely, the TAiMA M-GT can be released and attached to the left-hand and M-ECO can be equipped with a one-hand... -
Page 12: Umbrella (Optional)
05 ACCESSORIES UMBRELLA (OPTIONAL) ACCESSORIES AND ADD-ONS FROM EXTERNAL SUPPLIERS Your TAiMA rollator can be equipped with an umbrella, which can also be used as a sunshade. As a general principle, only original accessories The installation of this optional accessory is from DIETZ GmbH are to be used. -
Page 13: 06 Safety Instructions
06 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Take care not to trap your hands, fingers or clothing when operating the folding By observing the intended use and following lock and when unfolding/folding the the safety instructions, there is no danger of rollator! Risk of crushing! using the TAiMA rollator. - Page 14 06 SAFETY INSTRUCTIONS vehicle or on public transport. This poses an increased risk of falling! Never use escalators. The risk of falling and injury is very high! Stairs must only be negotiated with the help of accompanying persons if no elevators or ramps are present.
-
Page 15: Instructions For General Use
07 INSTRUCTIONS FOR GENERAL USE SERVICING/MAINTENANCE We recommend performing the inspections listed in the maintenance schedule at regular intervals to ensure that the rollator is always safe to use. Defective or neglected care and maintenance of the rollator limits liability. The maintenance schedule does not give any information concerning the amount of work actually required on the rollator. -
Page 16: Maintainance Schedule
07 INSTRUCTIONS FOR GENERAL USE monthly What Description before use 1. It must be possible to firmly lock the star screws Push handles: on the push handles. stability 2. The push handles must not wobble. 1. It must be easy to pull out the folding lock (red button) and Folding lock and engage it again. -
Page 17: Fault-Finding And Rectification
07 INSTRUCTIONS FOR GENERAL USE FAULT-FINDING AND RECTIFICATION What Possible causes Measures The wheel bearings are defective or Consult an authorised specialist The front wheels do not the wheel suspension is no longer run in a straight line. retailer. correctly attached. The wheel axles/wheel hubs are dirty. -
Page 18: Cleaning
07 INSTRUCTIONS FOR GENERAL USE CLEANING DESINFECTION Clean the rollator by regularly wiping the When manually reconditioning a used aid for frame parts with a damp cloth. If the reuse, all of the aid’s components must be rollator is very dirty, you can use a mild thoroughly treated/wiped with a disinfectant. -
Page 19: Storage
07 INSTRUCTIONS FOR GENERAL USE STORAGE To store the rollator, ensure that it is stored in a dry place protected against direct, strong sunlight and at a temperature of 0°C to +45°C. Secure the rollator against unintentional rolling away. Do not use the parking brakes for this, as these can damage the tires over a long period of time when they are activated. -
Page 20: Product Labelling
07 INSTRUCTIONS FOR GENERAL USE PRODUCT LABELLING Maximum load capacity/load incl. payload The type plate must always remain legible. On the TAiMA model it is located on the left cross Date of manufacture strut. Please have any illegible or missing signs/ Total width of rollator stickers replaced by your specialist retailer immediately. -
Page 21: Manufacturer Declarations
08 MANUFACTURER DECLARATIONS WARRANTY Warranty services refer to all product defects which are verifiably attributable to material or manufacturing flaws. The warranty period is 24 months as of receipt of notification of readiness for shipping, but following delivery at the latest. Damage which has occurred due to natural wear, intent, and negligent or improper operation or usage is excluded from the warranty obligation. -
Page 22: 09 Technical Documentation
09 TECHNICAL DOCUMENTATION SPECIFICATIONS Description TAiMA M-GT TAiMA S-GT TAiMA M-ECO Unit Item number 200160 200153 200061 Frame: Alu / reseda Alu / Steel, alu / material / color green metallic sepia metallic anthrazit metallic Wheels: rubber (EVA) / black / 20 × 3,5 PU / grey / 20 ×... -
Page 23: Product Tests
09 TECHNICAL DOCUMENTATION PRODUCT TESTS Complete test according rollator norm EN ISO 11199-2 Biocompatibility of plastic parts ISO 10993 Flammability textile parts EN 1021-2 ENVIRONMENTAL CONDITIONS Ambient operation temperature -10°C to +50°C Ambient storage conditions 0°C to 45°C | 20% to 75% relative humidity CAPTURE IDENTIFICATION DATA We recommend to write down your product identification data below, so that you have these on hand, when you require any further information about your product. - Page 24 Product group: rollators Products: TAiMA M-GT, TAiMA S-GT, TAiMA M-ECO User manual version 3.2.0 EN (MSC) Stand 10-2021 DIETZ GmbH Reutäckerstraße 12 76307 Karlsbad (Germany) Tel.: +49 7248.9186-0 Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-rehab.de Misprint, falsities, price and product changes reserved. ©...
