– Custom Made Case with High Density Foam
DXE-UT-CASE
– Basic Coaxial Cable Tool Kit
DXE-UT-KIT1
1 - DXE-UT-CASE Custom Tool Case
1 - CNL-911 Cable Cutter
1 - DXE-UT-8213 Cable Prep Tool
1 - DXE-UT-80P PL-259 Tool
– Complete Coaxial Cable Tool Kit
DXE-UT-KIT2
1 - DXE-UT-CASE Custom Tool Case
1 - CNL-911 Cable Cutter
1 - DXE-UT-8213 Cable Prep Tool
1 - DXE-UT-80P PL-259 Tool
1 - DXE-UT-808X Cable Prep Tool
1 - DXE-UT-80N Type N Tool
1 - DXE-170M Precision Shear Cutter
1- DXE-UT-RB-HD Replacement Blade Set
Coaxial Cable
Preparation Tool Kits
DXE-UT-CASE / KIT1 / KIT2
DXE-UT-COMPLETE-KIT-INS-Revision 0b
Advertisement
Table of Contents
Related Manuals for DX Engineering DXE-UT-CASE KIT1
Summary of Contents for DX Engineering DXE-UT-CASE KIT1

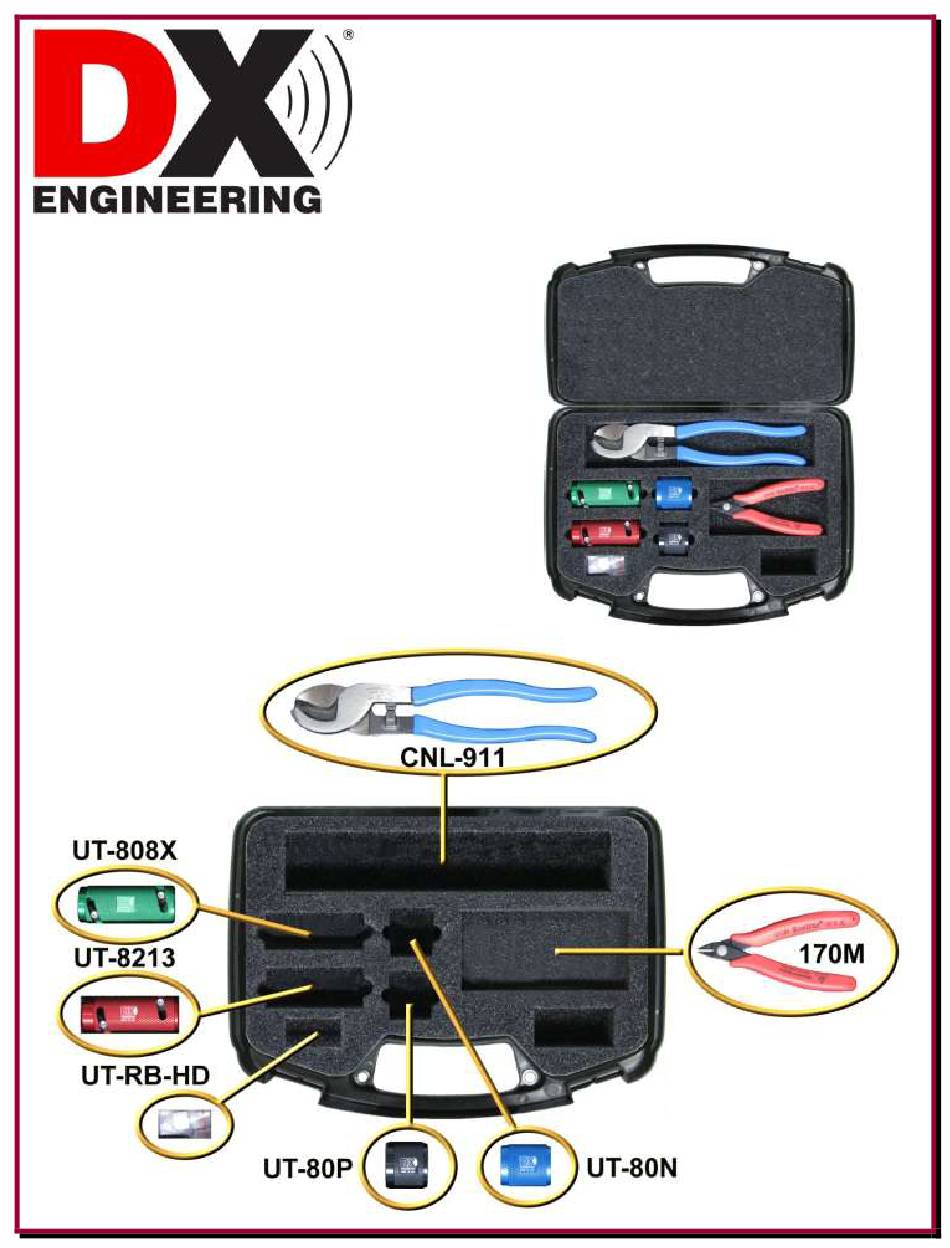

- Page 1 Coaxial Cable Preparation Tool Kits DXE-UT-CASE / KIT1 / KIT2 DXE-UT-COMPLETE-KIT-INS-Revision 0b – Custom Made Case with High Density Foam DXE-UT-CASE – Basic Coaxial Cable Tool Kit DXE-UT-KIT1 1 - DXE-UT-CASE Custom Tool Case 1 - CNL-911 Cable Cutter 1 - DXE-UT-8213 Cable Prep Tool 1 - DXE-UT-80P PL-259 Tool –...
- Page 2 Trimming for 2-Piece N Connector If you are using the DXE-N1001-S DX Engineering 2-piece N Connectors, you will need to trim the center conductor to a length of approximately 0.441”. This will allow...
- Page 3 Using the DXE-UT-808X A. Cut the end of the coaxial cable with the CNL- 911 Coax Cable Cutter to get a good flush cut. B. Install the PL-259 shell and the Reducer on the coaxial cable and slide them out of the way.
- Page 4 Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
