- Page 1 ACE PLUS CORP. EX-G043 EDID Reader/Writer User Manual Page 1 of 8 Headquarters : 9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian, Taipei, Taiwan 231 TEL: +886-2-2912-4201 FAX: +886-2-2912-3164 Website: www.ace-plus.com...
-
Page 2: Safety And Notice
However, like all electronic equipments, the EX-G043 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Specifications & Package Contents
ACE PLUS CORP. Features Keeps computers from deactivating inactive DVI port Reads and remembers the EDID of displays Writes EDIDs into the EDID reader/writer or the displays Default EDID built-in No power required after initial programming Maintain DVI video resolution Specifications &... -
Page 4: Panel Descriptions

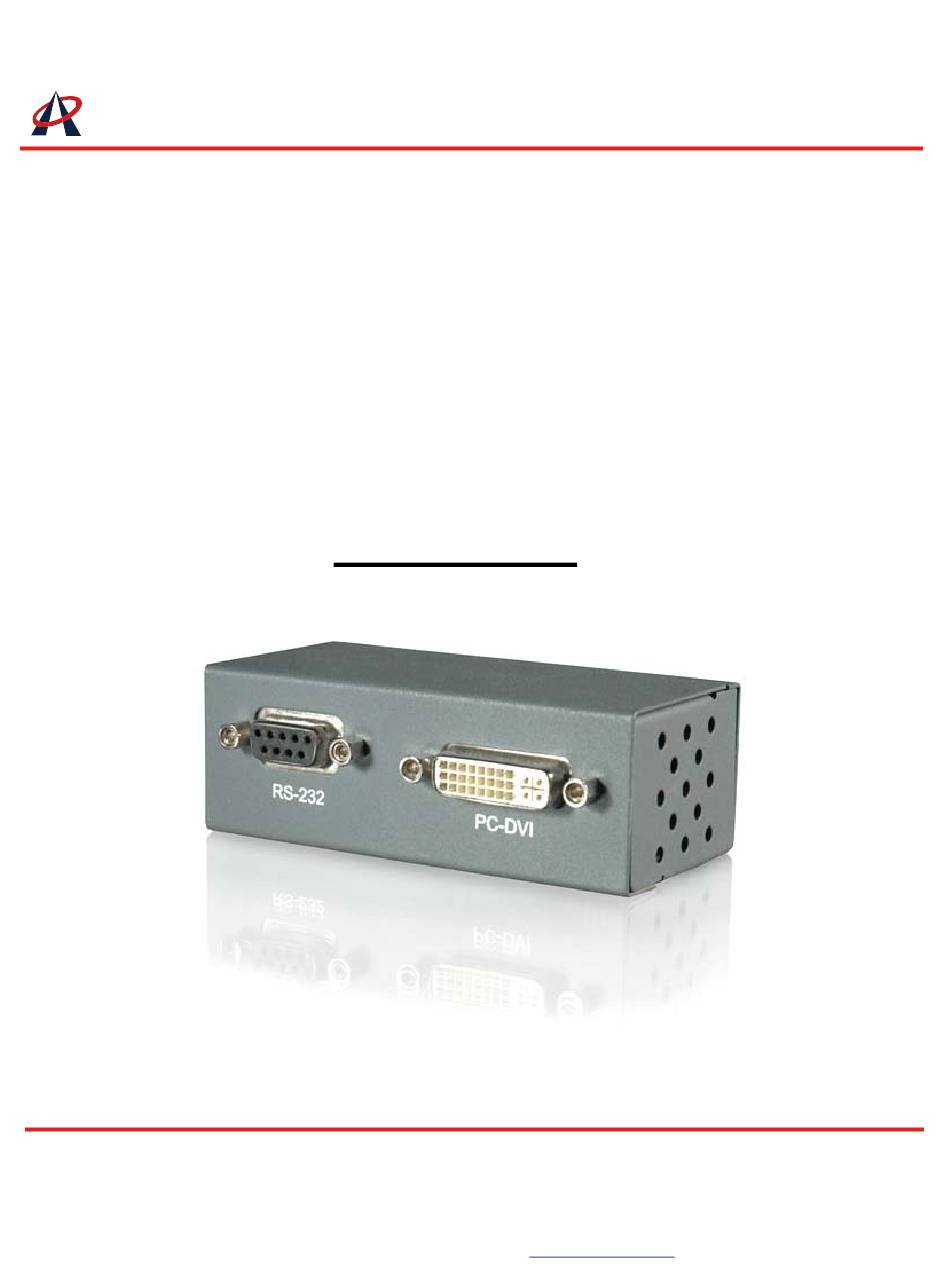

4. Green LED: Bright means in process of reading or writing EDIDs Rear Panel RS-232 PC-DVI 5. RS-232: Link your computer with the EX-G043 here in order to read/write EDIDs from/ to displays. 6. PC-DVI: Connect your PC and EX-G043 here. Bottom Panel – DIP Switch Caution! Please don’t plug DVI... -
Page 5: Hardware Installation
Recording mode to Connection mode might overwrite the EDID of the display in the EX-G043 by the default EDID), please unplug the power cord before you change one of the above modes to another. Plug in the power cord after you have changed the position of the DIP switches. -
Page 6: Software Operation
ACE PLUS CORP. 5. Please refer to the Software Operation. Software Operation Before executing the software, please make sure the DIP switch at the bottom: 1. The power supply is well connected. 2. DIP switches are at the right position as shown below. - Page 7 ACE PLUS CORP. 2. Read EDID 1. If users would like to read EDID information from the connected monitor, simply click on the button “Read EDID” [5]. You can see the following message to inform you the correct read of EDID has been finished.
-
Page 8: Limited Warranty
ACE PLUS CORP. Limited Warranty The SELLER warrants the EX-G043 EDID Reader/Writer to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
