Summary of Contents for ITS Telecom Ekselans CPE 1200-O

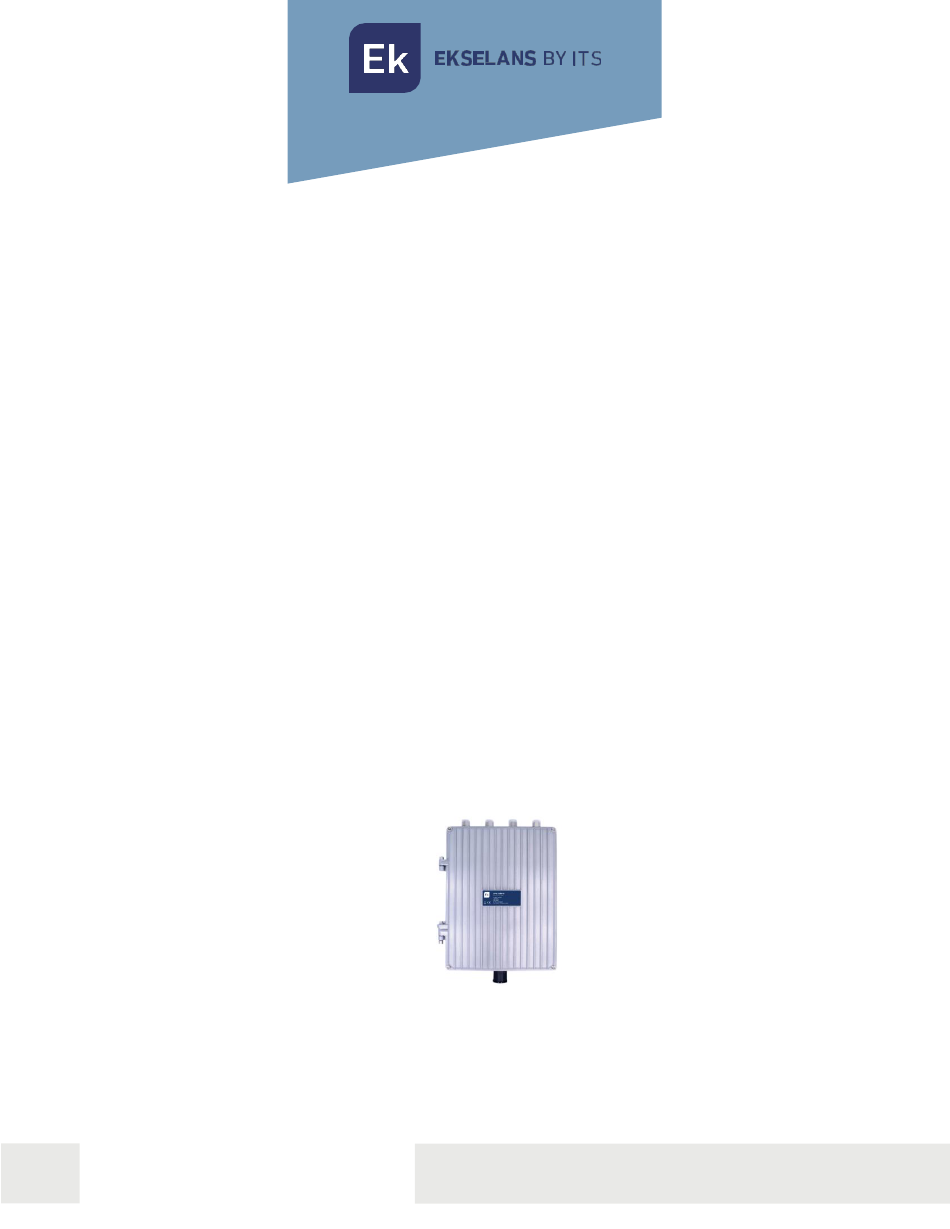

- Page 1 USER MANUAL CPE 1200-O 333002 Wireless Outdoor CPE ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL CPE 1200-O INDICE Hardware............................................... 3 Installation diagram..........................................3 Conexión................................................ 4 Web interface............................................5 Wireless setting (Main Window 10 and 11)..............................6 LAN setting (Main Window 12)....................................7 Location Information (Main Window 13)................................ 8 Assistant.. -
Page 3: Hardware
USER MANUAL CPE 1200-O Hardware. • RESET: Reset Button, it make AP revert to default data after press it 15 seconds. • WAN: WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and Wireless Repeater operation mode. •... -
Page 4: Conexión
USER MANUAL CPE 1200-O Conexión. Note: The default SSID is Ek_2.4G with password 12345678. To connect to CPE 1200-O please follow these steps: 1- Connect to AP 300 with Ethernet cable or wireless. 2- Configure the PC's network adapter with a static IP as shown in the image. To facilitate the configuration in EK we have the Ek NET Adapter application, with which we can easily configure the network adapter. -
Page 5: Web Interface
USER MANUAL CPE 1200-O Web interface. After entering, the password will appear the main interface. 1- Displays the Menu. 2- Language Selector can be English / Spanish. 3- Displays the Operational mode (AP Mode, Gateway Mode, and Repeater). 4- Displays the channel that the wireless is broadcasting. 5- To reboot the device 6- Shows the number of users connected to the device. -
Page 6: Wireless Setting (Main Window 10 And 11)
USER MANUAL CPE 1200-O Wireless setting (Main Window 10 and 11). Clicking in the Wireless section will open the fast configuration menu for Wireless. • Wireless Status: ON / OFF. • SSID: Name of the wireless. • Broadcast SSID: Enable - Show SSID, Disable – Hide SSID, •... -
Page 7: Lan Setting (Main Window 12)
USER MANUAL CPE 1200-O LAN setting (Main Window 12). Clicking in the Wireless section will open the fast configuration menu for Wireless. • IP: Set the IP for this device. • Subnet Mask: Set the Subnet Mask for this device. •... -
Page 8: Location Information (Main Window 13)
USER MANUAL CPE 1200-O Location Information (Main Window 13). Clicking in the Location section will open the fast configuration menu for Location Information. • AP Location: Set the AP Location, this is just information for the user to know. • AP Name: Set the identification name for our AP. -
Page 9: Assistant
USER MANUAL CPE 1200-O Wizard. There are four-operation mode available. Putting the mouse over each mode will display a tip explaining the use of each mode. • Gateway Mode: Connect to the network through LAN cable and operate CPE 1200-O as router. •... -
Page 10: Wizard: Gateway Mode
USER MANUAL CPE 1200-O Wizard: Gateway Mode. The Gateway Mode wizard will guide you through few step and few options to properly configuring the device. 1- First Step. Select the WAN connection mode: • DHCP: The WAN connection will get the IP value from a DHCP server. •... - Page 11 USER MANUAL CPE 1200-O 2- Second Step. Configure both Wireless settings for 2.4G and 5.8G. • Wireless Status: ON / OFF. • SSID: Name of the wireless. • Channel: The channel that. • Encryption: Select the encryption wanted for the wireless SSID. •...
-
Page 12: Wizard: Repeater Mode
USER MANUAL CPE 1200-O Wizard: Repeater Mode. The Gateway Mode wizard will guide you through few step and few options to properly configuring the device. First Step. Select which band we will be using as repeater 2.4G or 5.8G: Select the SSID that we want to connect to by pressing Scan AP button. It will load a list of all the SSID in ranges. - Page 13 USER MANUAL CPE 1200-O Second step. Select the WAN connection mode: • DHCP: The WAN connection will get the IP value from a DHCP server. • Static IP: You can set the WAN IP manually; you will need to fill IP Address, Subnet Mask, Default Gateway and Primary DNS.
-
Page 14: Wizard: Wisp Mode
USER MANUAL CPE 1200-O Wizard: WISP Mode. The WISP Mode wizard will guide you through few step and few options to properly configuring the device. First step. Select the SSID that we want to connect to by pressing Scan AP button. It will load a list of all the SSID in range. -
Page 15: Wizard: Ap Mode
USER MANUAL CPE 1200-O Second step. Once the first step is completed on this mode the SSID is disabled thus the window screen will not appear if we are connected through Wi-Fi. Wizard: AP Mode . The AP Mode wizard will guide you through few step and few options to properly configuring the device. First step Set the values for the wanted SSID for 2.4G and 5.8G: •... - Page 16 USER MANUAL CPE 1200-O Second step Specify how the CPE 1200-O is connected to your network red. You can select either DHCP or Static IPestática. • IP: Set the IP for this device. • Subnet Mask: Set the Subnet Mask for this device. •...
-
Page 17: Advanced Settings
USER MANUAL CPE 1200-O Advanced settings. Status: This tab displays the information regarding Software Version, Hardware Version and the time that the device is online. 2.4G Wireless Status: Shows the current configuration for the Wireless, it also displays the connected users. It is the same for 5.8G. -
Page 18: Wireless 2.4G And 5.8G
USER MANUAL CPE 1200-O Wireless 2.4G and 5.8G. NOTE: The pictures below are for 2.4G Wireless. The options for 5.8G are the same as for 2.4G. Basic Settings. This tab is used to configure all the Wireless basic settings. • Wireless status: ON / OFF. -
Page 19: Virtual Ap
USER MANUAL CPE 1200-O Virtual AP. In this tab we can create up to 3 more SSID, each Virtual AP 1 is a new SSID. Press apply to save the changes. Access Control. The access control limits the devices that can connect to CPE 1200-O. We can set the access control •... -
Page 20: Advanced Settings
USER MANUAL CPE 1200-O How to add MAC to the list: Pick Allow Listed or Deny Listed. Input the MAC Press Add The added MAC will go to the Access Control List. Press Apply Advanced Settings. • Regional: Select the region. •... -
Page 21: Network
USER MANUAL CPE 1200-O Network. LAN Settings. • Access Type: Use DHCP to get automatically IP, Subnet Mask and Manage server IP or use Static IP to manually set the values. • IP: Set the IP for this device. • Subnet Mask: Set the Subnet Mask for this device. -
Page 22: Management
USER MANUAL CPE 1200-O Management. System Time. Manage the device timezone Auto restart function enables the device to be rebooted at the setup time. Logs This tab will display all the logs related to the device. • Remote Log Server: Enable to register the logs to a remote server. •... -
Page 23: System
USER MANUAL CPE 1200-O Upgrade firmware Select the new firmware version file and press “Upgrade” to upgrade the device firmware. If selected restore factory setting the device will upgrade the firmware and also put the device back to factory default. System •... -
Page 24: User
USER MANUAL CPE 1200-O User Change the default admin password for the device. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
