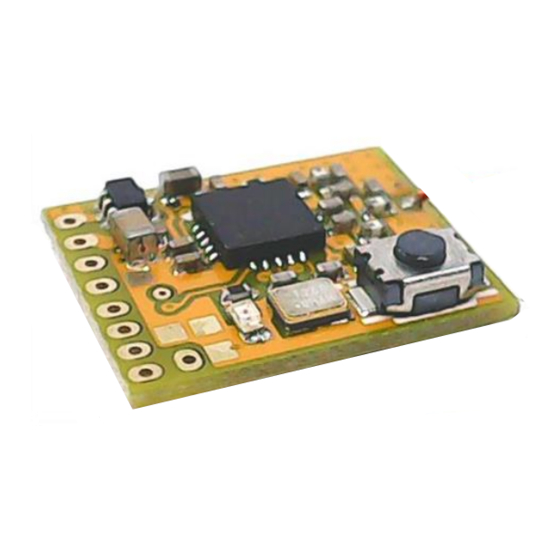

MXA-82 FrSky 7Ch Bare Board
www.micronwings.com
The MXA-82 for FRSky radios combines light-weight
with a full array of 7 channels. The board also has an
incorporated bind button for ease of use.
Solder pads are supplied for the signal wire of each of
the 7 channels. Pos and Neg are common for all servos
so the Positive and Negative of each servo need to be
combined and soldered to the board at the same
locations as where the power is supplied.

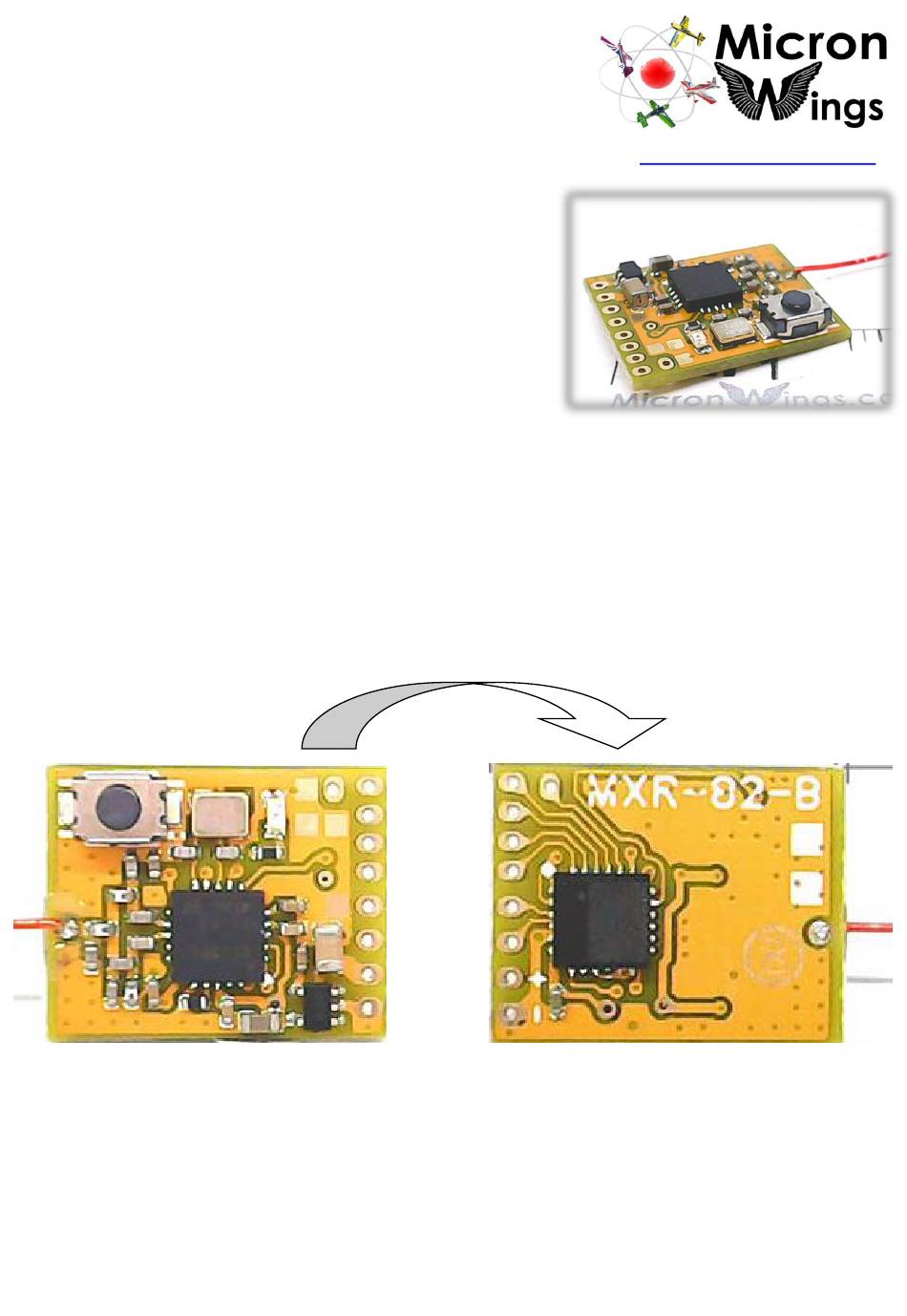

Top
Bottom
Advertisement
Table of Contents
Summary of Contents for Micron Wings MXA-82
- Page 1 MXA-82 FrSky 7Ch Bare Board www.micronwings.com The MXA-82 for FRSky radios combines light-weight with a full array of 7 channels. The board also has an incorporated bind button for ease of use. Solder pads are supplied for the signal wire of each of the 7 channels.
- Page 2 Example Wiring Configuration (for brushless motor setup with 4 channels) Ch1 – Throttle BATTERY Ch2 – Aileron Ch3 – Elevator Ch4 – Rudder Servo Servo Servo Channel Order CH1---AIL CH2---ELE CH3---THR CH4---RUD CH5---AUX1 CH6---AUX2 CH7---AUX3...
- Page 3 Binding Process 1. Press the BIND button for 2 seconds on the receiver after the unit has been powered on. The receiver will enter bind mode (the slow blinking LED turns to a fast blinking LED) 2. Turn your transmitter on and put it into bind mode (refer to your transmitter manual). When binding is successful, the fast blinking LED on the receiver will turn to a slow blinking LED and then to a solid light as soon as a verified connection has been formed with the transmitter.
