  • Page 1 INSTRUCTIONS MANUAL...
  • Page 2 INTRODUCTION KEY DESCRIPTIONS DISPLAY FUNCTIONS PARAMETERS FUNCTION MENU SETTINGS BATTERYFUNCTION RS-232 OUTPUT CALIBRATION ERROR CODES FORM ONE FORM TWO Scandinavian Scale Company AB Järnvägsgatan 23 SE-360 51 HOVMANTORP Tel : +46-478-41485 Fax : +46-478-41487 Mail : info@scandscale.com WWW : www.scandscale.com...

  • Page 3: Key Description

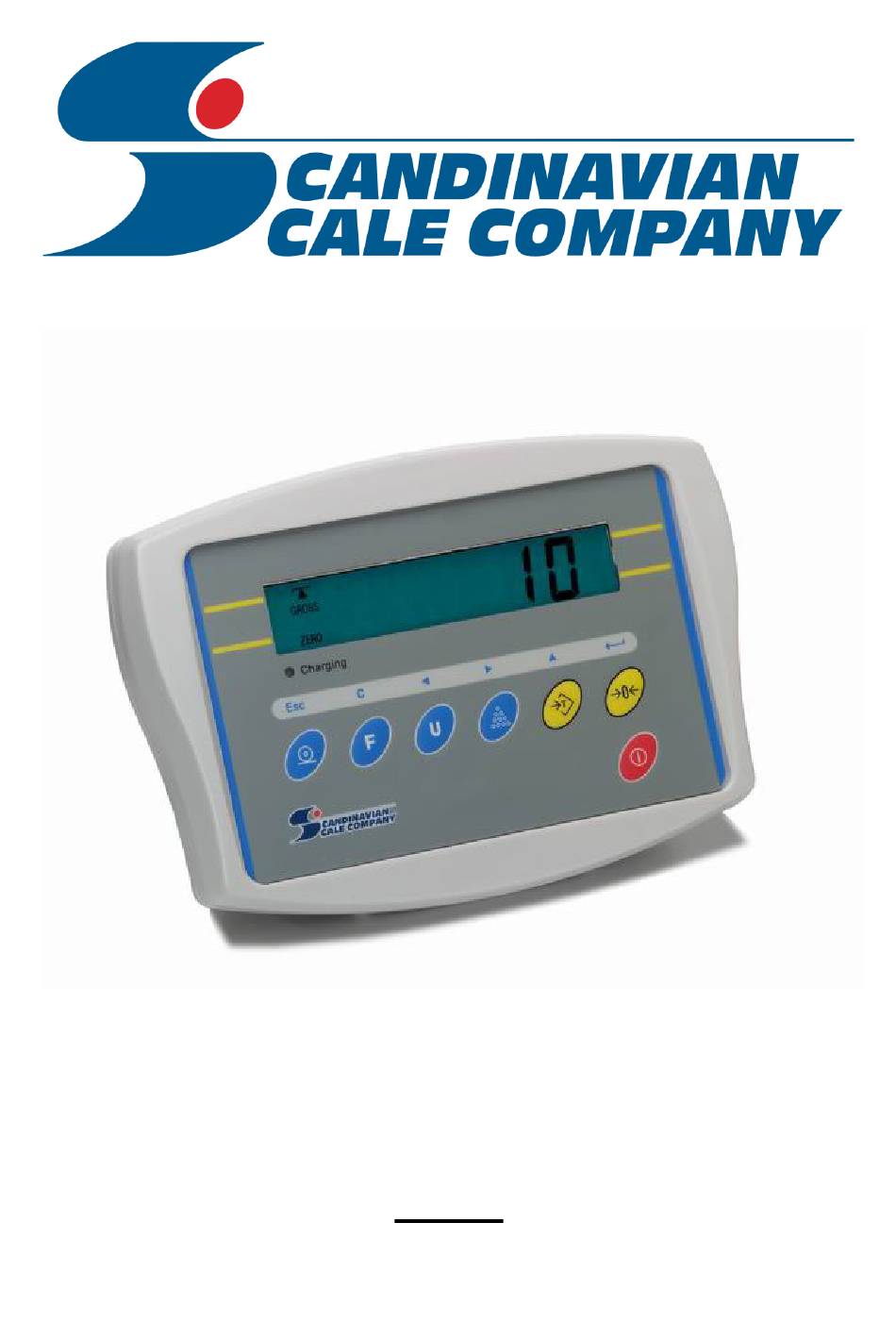

    1. INTRODUCTION The KW series of bench scale provides an accurate, fast and versatile series of general purpose weighing scale with counting and check-weighing functions. All the keypads are sealed, color coded membrane switches and the displays are large easy to read liquid crystal type displays (LCD). The LCD’s are supplied with a backlight.
  • Page 4 3. DISPLAY The LCD display will show a value and a unit to the right of the digits. In addition there are labels for TARE, GROSS weight, Zero and for Low battery Low Battery Symbol Parts Counting Units Stability Symbol g/pcs oz % 8 8 8 8 8 8...

  • Page 5: Zeroing The Display

    4. FUNCTIONS 4.1 Zeroing The Display You can press the ZERO/ENTER key at any time to set the zero point from which all other weighing and counting is measured, within 4% of power up zero. This will usually only be necessary when the platform is empty. When the zero point is obtained the display will show the indicator for zero.

  • Page 6: About Check-Weighing

    Before beginning, tare the weight of any container that will be used, leaving the empty container on the scale. Place the number of samples on the scale. The number should match the options for parts counting, 10, 20, 50, 100 or 200 pieces. Press the SMPL key to begin.

  • Page 7: Accumulated Total

    KW will do automatic accumulation operation, if you have connect with mini printer, KW will print automatically.
  • Page 8 5. PARAMETERS The scale has 6 parameters that can be set by the user plus a method of entering the calibration section. To set parameters press the FUNC key. The display will show the first function, "F0 H-L". Pressing the TARE/+ will cycle through the other functions. Pressing ZERO/ENTER will allow you to set the function.

  • Page 9: Function Menu Settings

    F4 off C loC K Set clock off or on, CLK off CLK of CLK on: KW will turn to clock display after KW wait for 5 minutes Set the backlight to be on, automatic EL Au or off, EL on...
  • Page 10 7. BATTERYFUNCTIONS The weighing indicator can be operated from the battery if desired. The battery life is approximately 100 hours. When the battery needs charging a symbol on the weight display will turn on. The battery should be charged when the symbol is on. The scale will still operate for about 10 hours after which it will automatically switch off to protect the battery.
  • Page 11 8. RS-232 OUTPUT The KW Series of scales can be ordered with an optional RS-232 output. Specifications: RS-232 output of weighing data ASCII code 8 data bits No Parity Connector: 25 pin d-subminiature socket Pin 2: Output Pin 3: Input, not used at this time...
  • Page 12 9. CALIBRATION Turn the power off. Turn the power back on, during the counting from 9 to 0 press the FUNC/C key. The display will show "CAL " for a few seconds. While it is showing "CAL " press unit , PRINT and TARE keys in sequence to enter the Calibration section.

  • Page 13: Error Codes

    10. ERROR CODES ERROR DESCRIPTION RESOLUTION CODES - - - - - Over range Remove weight from the scale. If the problem persist contact your dealer or Taiwan scale for assistance. Err 1 Date Setting Error Enter date using correct format and reasonable values.
  • Page 14 Form one (TO PC) PC (TY TP) PC (TY TP) PC (TY TP) PC (TY TP) TYPE NT: 0.666kg 0.222kg 0.222kg GS: 0.888kg TW: 0.222kg TOTAL: 0.222kg 0.666kg GW: 0.888kg 0.888kg TOTAL: 0.222kg DATE: 04/06/06 DATE: 04/06/06 DATE: 04/06/06 DATE: 04/06/06 NT: 0.666kg 0.222kg 0.222kg...
  • Page 15 Form two (TO LP-50) PRT TYPE LP-50 LP-50 LP-50 LP-50 2000/00/00 00:00 As left As left As left 0.888kg DATE: 2000/00/00 As left As left As left TIME: 00:00 GW: 0.888kg DATE: As left As left As left TIME: 00:00 S./NO.: GROSS WT: 0.888kg...
