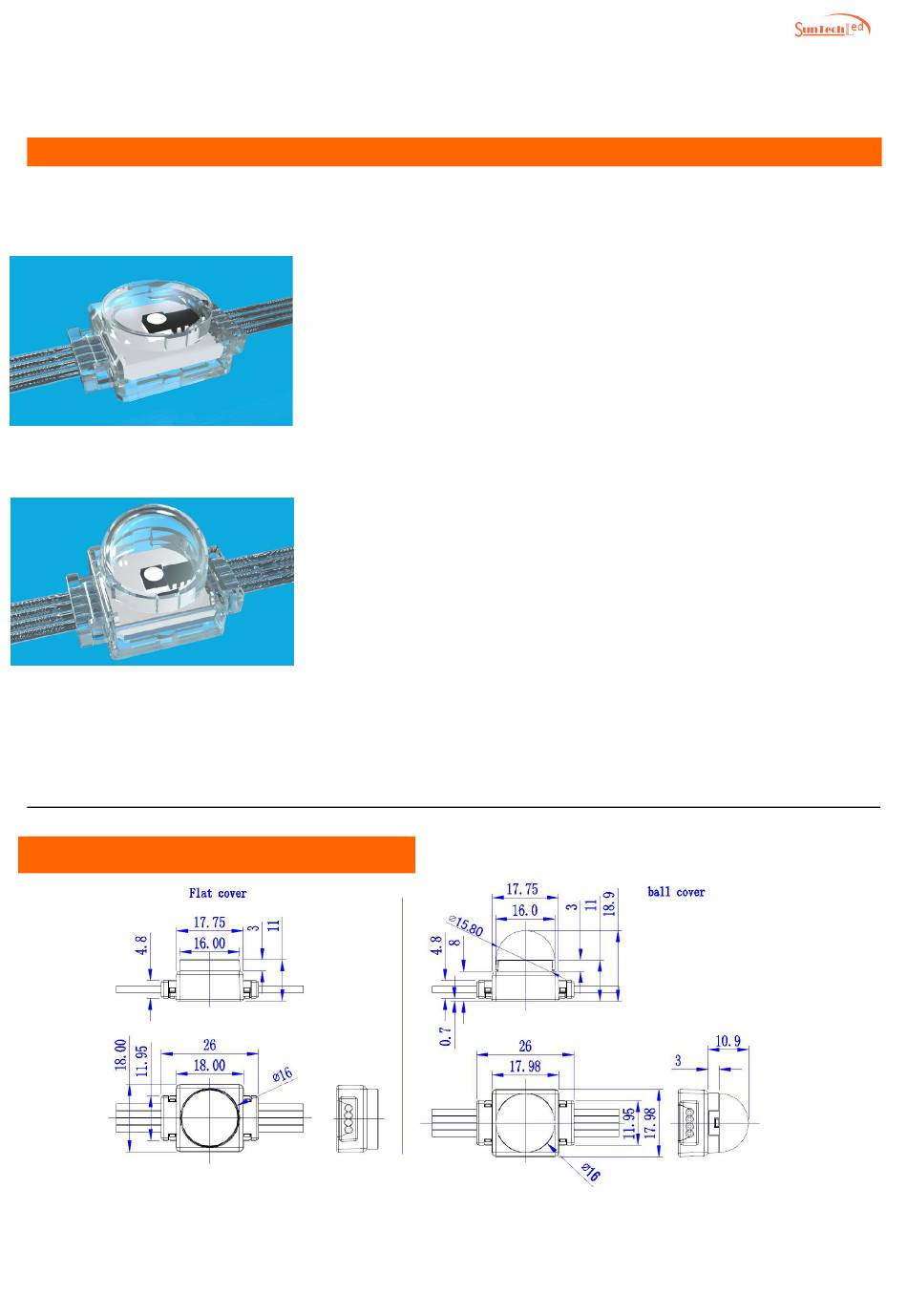

Measurement (Unit:mm)
Flat cover measurement
wwww.suntechleds.com
SPB018 Pixel light
The SPB018 pixel light is a low power LED string product designed for
outdoor landscape lighting. It adopts engineering grade flame-retardant
plastic PC shell, which is sealed and waterproof by high thermal conductivity
and weather-resistant PU glue; the lamp point is small in size and exquisite
in appearance; the light string is connected by the national standard flexible
cable, which can be bent and deformed at will, and supports the installation
of special-shaped façade; The product spacing and color can be
customized; it is suitable for large-area display or lighting of building
facades, bridges and skylights.
Features:
★
A new generation of TTL serial technology design
★
Standard DMX512 Control Protocol
★
Industry-leading wireless button-type anti-smash connection design
★
High thermal conductivity glue full potting waterproof design
★
Outdoor lightning protection and Electrostatic (ESD) special protection design
★
Flexible, flexible application, multiple mounting methods
★
Grid installation, strip installation transmittance of up to 94%
★
Innovative high voltage work, support longer power supply distance
★
Support RGB/W current separately adjustable (low light and high gray)
Ball cover measurement
sales@suntechleds.com
Advertisement
Related Manuals for SunTech SPB018 Pixel light
Summary of Contents for SunTech SPB018 Pixel light
- Page 1 Focus on customized architectural lighting SPB018 Pixel light Description The SPB018 pixel light is a low power LED string product designed for outdoor landscape lighting. It adopts engineering grade flame-retardant plastic PC shell, which is sealed and waterproof by high thermal conductivity and weather-resistant PU glue;...
-
Page 2: Technical Parameters
Focus on customized architectural lighting Technical Parameters: Basic parameters Color/gray RGB/W each 4096 grayscale； RGB/W each 256 grayscale Light source 3535 / 5050 / 2835 LED quantities 1pcs Material Flame retardant PC Cover material Flame retardant PC Lifespan 50,000h Weight Optical parameters Operating Maximum... - Page 3 Focus on customized architectural lighting Mounting parts dimensions Supports a single mounting piece to be fixed by screws and wire, and supports a single mounting piece to be fixed by wire. The grid mounting piece is fixed by wire and supports profile mounting. PC single mounting base size drawing (unit: mm) PC strip mount dimension drawing (unit: mm) PC grid mount dimension drawing (unit: mm)
- Page 4 Focus on customized architectural lighting PC single base installation method 1: ③installation is completed: ①PC installation base installation: ②pixel light installation: Use a suitable self-tapping screw to Schematic diagram after After the PC mounting base is secure the PC mounting base to the installation is complete.
- Page 5 Focus on customized architectural lighting PC strip mounting method: ②pixel light installation: ③adjust the point spacing and ①wire fixing and strip mounting: flatness: After strip-shaped Fixing both ends of the wire on the After the installation is completed, mounting module is fixed, strip mounting module...
- Page 6 Focus on customized architectural lighting Frame installation method: ①installation carrier drilling: ②installation rubber plug: Use a suitable rubber plug and hammer the Drill a hole in the position where the carrier is required to be drilled by selecting a rubber plug into the hole drilled by the suitable drill bit;...
-
Page 7: System Connection
Focus on customized architectural lighting System connection 1、 The main controller is equipped with sub-controller and signal adaptor. The main control and sub-control working voltage is AC220V. The working voltage of the signal adaptor is the same as the working voltage of the pixel light. - Page 8 Focus on customized architectural lighting Notes: Please read the installation manual carefully before using the product. The product is handled gently and gently to avoid damage to the product. Installation, maintenance and maintenance must be handled by professionals; The external power supply must be cut off during wiring to prevent people from getting an electric shock or amaging the lamp;...
