Summary of Contents for IWILL N1021

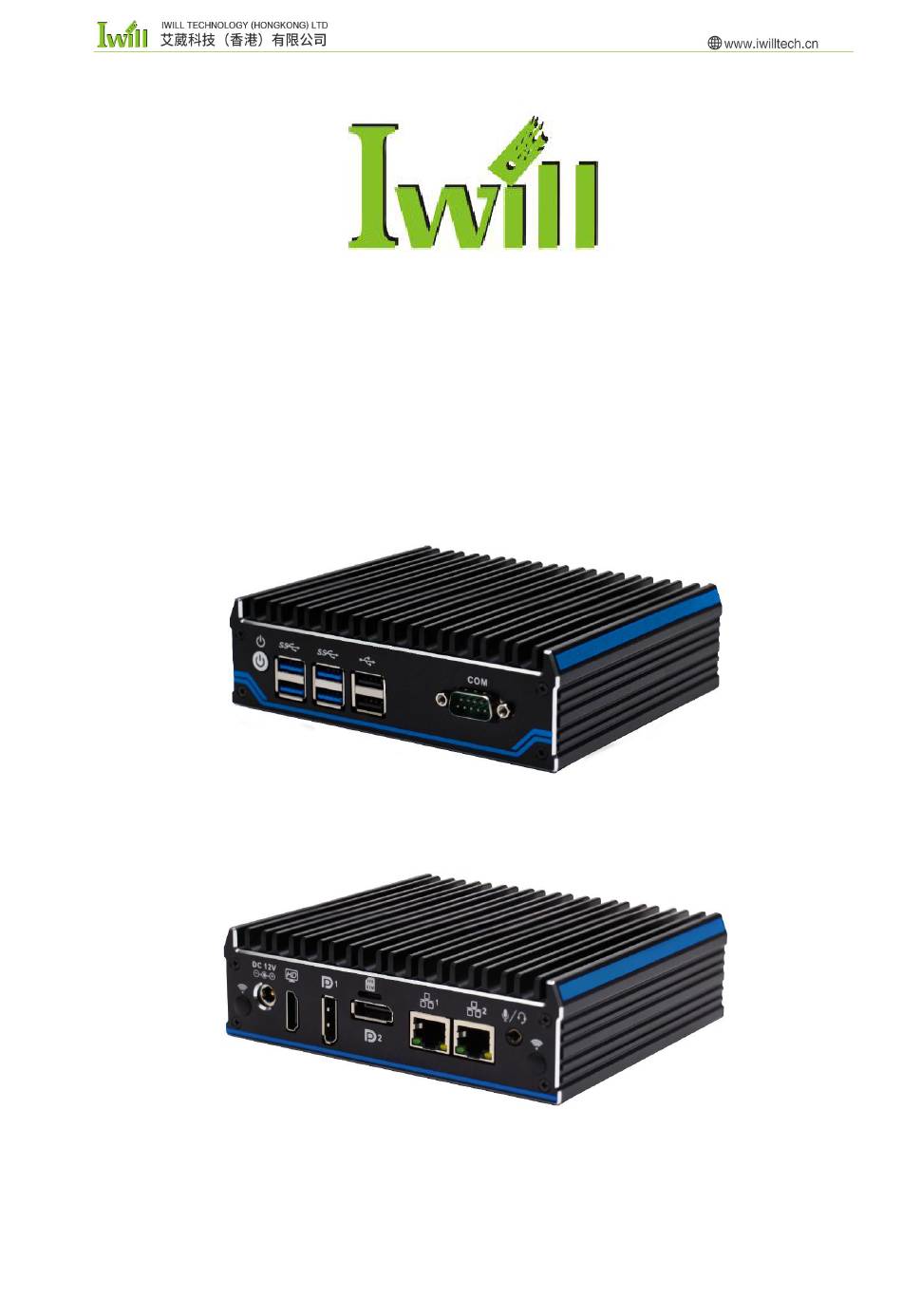

- Page 1 N1021 User Manual...
- Page 2 Yanling industrial PC products are only allowed to be used for the specified conditions of the catalogue and related technical documents. If you want to use other company's products and components, you must get the recommendation and permission from Iwill Technology (HongKong) LTD. Proper transportation, storage, assembly, installation, commissioning, operation and maintenance are the premise of product safety and normal operation.
- Page 3 Disclaimer Iwill Technology (HongKong) LTD reserves the right to change this manual and the products are subject to change without prior notice. We are not responsible for any direct, indirect, intentional or accidental damage or hidden dangers caused by improper installation or use.
-
Page 4: Table Of Contents
Catalogue 1. Product Introduction............................5 1.1 Product overview ..........................5 1.2 product specification (Main parameter)..................5 2. Application Planning............................7 2.1 Transportation..........................7 2.2 Storage............................7 2.3 Open and inspection of delivered equipment................8 2.4 Installation............................. 8 3. Device Connection..............................8 3.1 Precautions before device connection..................8 3.2 Connect the device to the power supply..................8 4. -
Page 5: Product Introduction
Product Introduction 1.1 Product overview Nano N1021 is low power fanless mini pc，It is with Intel Celeron J4125 quad core processor，support Windows 10、Linux etc. OS，support 1*M.2 and 1*2.5” SATA HDD，very convenient to use. The whole machine adopts aluminum alloy mold forming, simple structure, with good dustproof, heat dissipation, anti-vibration and EMC performance, high reliability, strong environmental applicability. -
Page 6: Application Planning
2. Application Planning 2.1 Transportation Well packaged products can by any means of transport, to any place, in the long-distance transportation shall not be installed in the open cabin and carriages, midway transshipment shall not be stored in open-air warehouse, not allowed to be transported with inflammable, explosive, corrosive goods together. And products are not allowed to get wet by rain, snow or liquid substances and mechanical damage. -
Page 7: Installation
●It is recommended that you do not discard the original packaging materials. Please keep the original packaging materials for use in the transportation of equipment again. ●Please store the document in a safe place, for initial debugging of the equipment need to use it. ●Inspect the delivered equipment to see whether there is any significant damage in transit. -
Page 8: Connect The Device To The Power Supply
Warning This device can only be operated on the grounding power network. It is forbidden to operate on the ungrounded or impedance grounded power network. Warning The rated voltage of the equipment used must conform to the power supply characteristics of the product. -
Page 9: Application Specification
Application specification 4.1 Product Photos 4.2 Product size drawing... -
Page 10: I/O Port

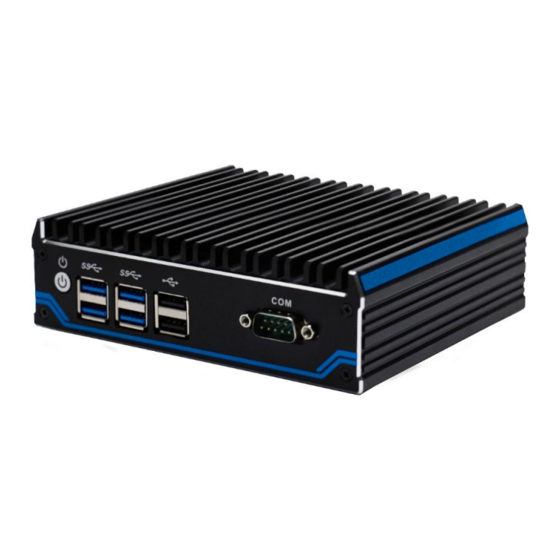

4.3 I/O Port Back Plate Port Name Power Switch 4*USB3.0 2*USB2.0 1*COM... -
Page 11: Internal Expansion Port
Front Plate Port Name 1 and 9 Antenna hole DC 12V HDMI 2*1000M LAN Audio Remark：1、HDMI Max Resolution：4096x2160@30Hz； 2、DP1 Max Resolution：4096x2160@60Hz； 3、DP2 Max Resolution：4096x2160@60Hz；（Can’t support Audio and Can’st support hot plug in or hot plug off） 4.4 Internal expansion port Internal expansion port... -
Page 12: Status Indicator Led
4.5 Status indicator LED Name Description Meaning Not Light Power off or no electricity POWER PC boot up Light Running 4.6 Install the internal parts Remove four M2.5*6 screws from the bottom plate (see below), remove the bottom plate ， then... - Page 13 After finish installing the internal parts（see below）, then install the bottom plate，then install the four M2.5*6 screws. Warning This operation is only suitable for customers who purchase N1021 barebone PC. Customers who have installed internal accessories should not disassemble the machine at will.
-
Page 14: Mainboard
4.7 Mainboard... -
Page 15: Definition Of Pins
4.8 Definition of Pins Symbol Specification Remark CMOS Clean up COMS Default no jump cap HDD_LED+ PWR_LED+ HDD_LED- PWR_LED- RST_GND PW_ON PWON_GND Empty RS232 Built-in RS23 pin LFRAME RESET NO USE LAD3 LAD2 KAD1 LAD0 NO USE NO USE NO USE SERIRQ NO USE NO USE... -
Page 16: Bios Setting
Warning The internal wiring of the PC has been installed, and the wire plug and screw have been fixed with glue. Please do not disassemble and install the motherboard, jumpers and other operations at will to avoid damage to the motherboard. 5. - Page 17 Setting the function of auto power on when there is electricity Boot up the pc, then press “DELETE” to enter the BOIS setting ， choose“Advanced”→“System power Management” → “Restore On AC Power Loss”→“Power On”，See picture as below； Setting of closing the LOGO when PC booting up Boot up the pc, then press “DEL”...
-
Page 18: Daily Maintenance
6. Daily maintenance When the PC is in normal use, please ensure that the PC is working in a non-vibration environment to avoid damaging the hard disk and internal accessories. When using the PC, please pay attention that the environmental temperature should between -10℃... - Page 19 fault phenomenon analysis of causes repair method The power Suggest to plug tighten the power The PC doesn’t boot adapter is work or cord or change the socket; Change the power adapter； up after press the power switch Motherboard Return back for repair； damage Check whether the PC starts up Maybe the signal...
