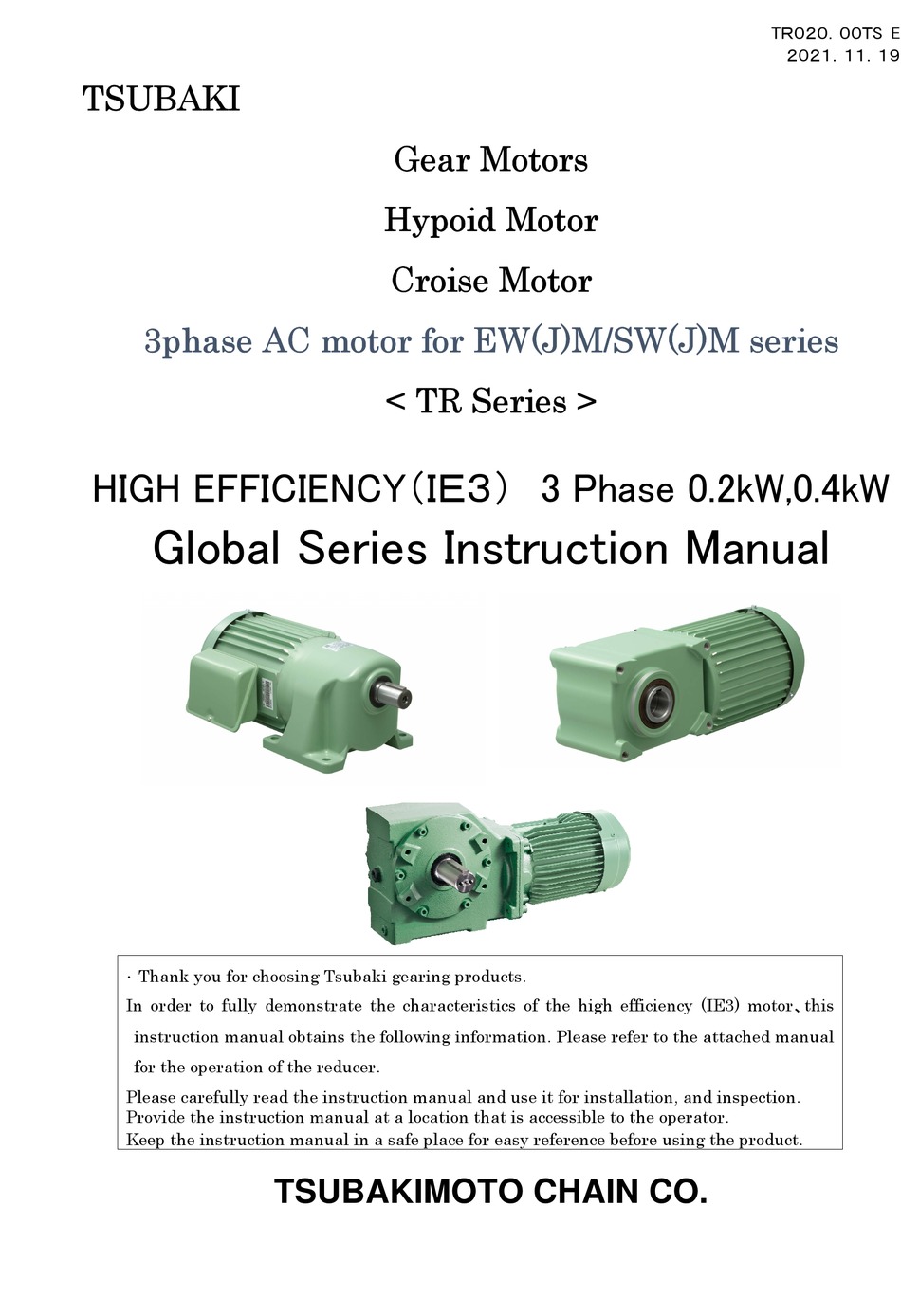

TSUBAKI
3phase AC motor for EW(J)M/SW(J)M series
HIGH EFFICIENCY（ＩＥ３） 3 Phase 0.2kW,0.4kW
Global Series Instruction Manual
Thank you for choosing Tsubaki gearing products.
In order to fully demonstrate the characteristics of the high efficiency (IE3) motor、this
instruction manual obtains the following information. Please refer to the attached manual
for the operation of the reducer.
Please carefully read the instruction manual and use it for installation, and inspection.
Provide the instruction manual at a location that is accessible to the operator.
Keep the instruction manual in a safe place for easy reference before using the product.
Gear Motors
Hypoid Motor
Croise Motor
< TR Series >
TSUBAKIMOTO CHAIN CO.
TＲ０２０．００ＴS E
２０２１．１１．１９
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tsubaki TR Series
Summary of Contents for Tsubaki TR Series
- Page 1 HIGH EFFICIENCY（ＩＥ３） 3 Phase 0.2kW,0.4kW Global Series Instruction Manual Thank you for choosing Tsubaki gearing products. In order to fully demonstrate the characteristics of the high efficiency (IE3) motor、this instruction manual obtains the following information. Please refer to the attached manual for the operation of the reducer.
-
Page 2: Table Of Contents
Table of Contents 【１】 Checking the contents ................................................1-1. Notice ........................................3 1-2. Notice for adoption to the premium efficiency motor(IE3) ....................... 3 【２】 Model number designation ............................................... 2-1. Model number designation for High Efficiency Motor (IE3) ......................4 2-2. CE Marking Motor ..................................... 4 2-3. -
Page 3: １】 Checking The Contents
【１】 Checking the Contents 1-1. Notice In the instruction manual, only the differences between 0.2kW and 0.4kW high efficiency motors are recorded. Please use it together with the following standard manual. SERIES MANUALS NUMBER GMTR、HMTR、CSMR、HCMR TA01.00TS-* (Gear motor Instruction Manual) EW(J)MR、SW(J)MR EW00.00TS-* (warm reducer Instruction Manual) + B5FTA．00TS-*(flange motor Instruction Manual) -
Page 4: ２】 Model Number Designation
【２】 Nomenclature 2-1. Model Number GMTR 020 – □□ □ □□ □ □□□ □□ HMTR 020 – □□ □ □□ □ □ □□□ □□ CSMR 020 – □□ □ □ □□ □ □ □□□ □□ EW(J)MR □□□ □ □□ □ 020 □ SW(J)MR □□□... -
Page 5: ３】 Wiring
【３】 Wiring 3-1. Connection Supply power as specified on the nameplate. Please refer to a standard instruction manual for the 200V class. 3-2. Wiring a 3-phass motor with brake（400V class） Purpose 0.2kW 0.4kW ･For general purpose ･Standard specification for shipment ･To shorten the stopping time ･To install phase advance condenser... -
Page 6: Dimentions Of Terminal Box Unit
3-3. Dimensions of terminal box ●Terminal box specifications Output Classification Dimensions 1. Material: Aluminum diecast 2. Terminal screw size: M4 Tightening torque: 1．8N・m｛Ref 0．18kgf・m｝ 3. Compatible crimp-on terminal Naked round type（R type） … 1. 25－4 2－4 Round type with insulating coating …... -
Page 7: Variable Frequency Operation
【4】Operation 4-1. Inverter driving (1) Standard motor driven by inverter (V/F control) continuously (Based on 60Hz) Output frequency (Hz) Output torque (%) Max torque when run ontinuously 98.4 98.4 96.8 96.8 95.2 95.2 93.8 93.8 92.3 92.3 90.9 90.9 89.6 89.6 88.2 88.2... - Page 8 (2) Standard motor driven by inverter (V/F control) continuously (Based on 50Hz) 周 波 数 ２ ０ ０ W ４ ０ ０ W O utput frequency (H z) O utput torque (%) O utput torque (%) M ax torque w hen run ontinuou sly 0.2k W 0.4k W 100.0...
-
Page 9: Wiring A 3-Phase Motor With Brake During Variable Frequency Operation
4-2. Wiring foe 3 Phase brake type driven by inverter (1)200V Class Purpose 0.2kW 0.4kW ･ General inverter drive Note: Use auxiliary relays (MCa) of contact rating ※1 Set the supply voltage to the brake, over and AC200V7A AC200V－AC220V. (resistance load). ・... - Page 10 (1) 400V class 0.2ｋＷ to 0.4ｋＷ Purpose ･ General inverter drive Use auxiliary relays (MCa) of contact voltage AC400v to AC440v and inductive load 1A and more. ・ In case an elevator and stopping accuracy is required Use auxiliary relays (MCa) of contact voltage AC400v to AC440v and inductive load 1A and more.
-
Page 11: Specifications Of Slb Brake
【5】 SLB brake (0.2kW to 0.4kW with brake) specification 5-1. SLB Brake Specification Brake Engaged when de-energized, DC electromagnetic brake Motor Capacity 0.2kW 0.4kW Voltage 200V 400V 200V 400V Brake model number SLB02 SLB02V 180V SLB04E SLB04E 180V DC module voltage DM200D DM400D DM200D...
