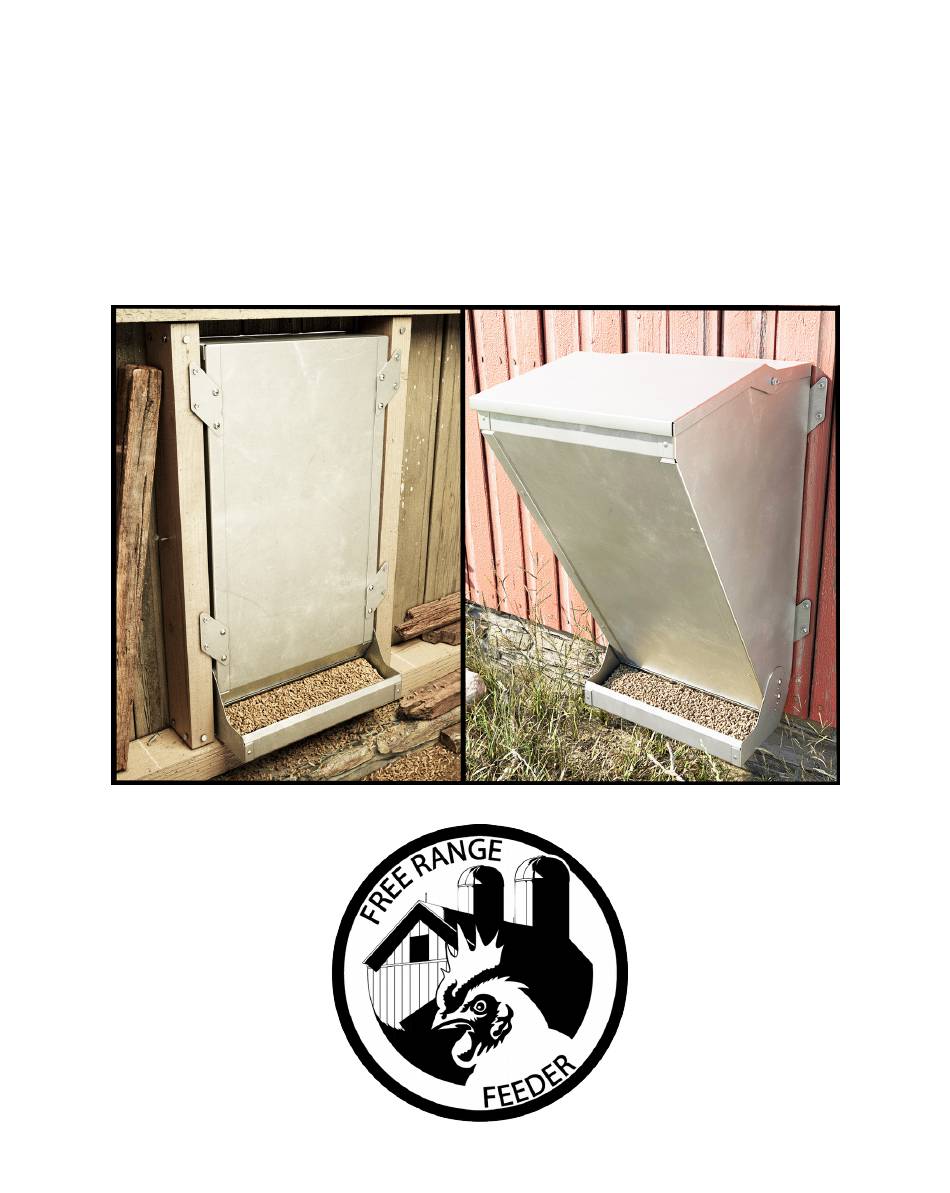

- Page 1 Assembly and Installation Manual Free Range Feeder CF-0314 Version 4 - Issued November 2019 - Original Publication in English...
-
Page 2: Table Of Contents
Table of Contents Product Description....................1 Tools Required......................1 Parts Included......................2 Assembly........................3 Installation – Surface Mount..................8 Installation – Through Wall with Reverse Tray.............10 Designed and Manufactured in Wrightsville, Pennsylvania USA... -
Page 3: Product Description
Page 1 Product Description The Free Range Feeder design was developed to satisfy the needs of the hobbyist and the homesteader. The convertible design allows for several mounting methods. See the installation sections of the manual to decide which will work best for you. -
Page 4: Parts Included
Page 2 Parts Included Designed and Manufactured in Wrightsville, Pennsylvania USA... -
Page 5: Assembly
Page 3 Assembly Watch the video at https://freerangefeeder.com/video/cf-assembly.html Work on a smooth, non-marring surface to avoid scratching the panels during assembly. Refer to the parts list for part identity. 1. Lay the left panel (3) on your assembly surface. 2. Slide the back panel (2) and left panel (3) together, as shown. 3. - Page 6 Page 4 4. Turn the feeder to where the front is facing you and place the front panel (1) into position and attach with 3 screws. 5. Place the right side panel (4) on the assembly with the top edge slightly below the other panels as shown.
- Page 7 Page 5 7. Attach the right side panel to the front panel with 3 screws. 8. Turn the feeder to where the back is facing you and use 2 screws to loosely secure the back panel and the right side together. Do not tighten at this time.
- Page 8 Page 6 10. Insert the two shoulder bolts through both sides of the lid, ensuring they are securing all three layers together (the lid, back and right panels). 11. Install the nuts onto the shoulder bolts with your Allen key and wrench. The shoulder bolts are properly tightened if 3 threads are exposed past the nut.
- Page 9 Page 7 14. Gently tighten each of the rear panel screws. These will be loosened again during installation. 15. Orient the feeder on its top. 16. Install the tray facing forward or rearward facing depending on your installation requirement. Use the pair of holes that will provide the appropriate gap for feed to flow into the tray.
-
Page 10: Installation - Surface Mount
Page 8 Installation – Surface Mount For a quality installation, mount the feeder onto studs or other solid surface capable of bearing the weight of the feeder when it is full. 1. Remove the back panel screws that are not securing the mount plates. - Page 11 Page 9 3. Orient the feeder on the surface to which you wish to mount it. The height of the bottom of the feed tray is approximately 7 inches for average chickens. Adjust this height as necessary for your livestock. 4.
-
Page 12: Installation - Through Wall With Reverse Tray
Page 10 Installation – Through Wall with Reverse Tray Watch the video at https://freerangefeeder.com/video/cf-installation.html This installation method permits the feeder to be installed through the wall of your coop. This allows the food to be dispensed inside while the feeder can still be filled from outside. - Page 13 Page 11 2. Place the feeder through the hole from the outside. 3. From the inside, remove the back panel screws that are not securing the mount plates. Designed and Manufactured in Wrightsville, Pennsylvania USA...
- Page 14 Page 12 4. Loosen the mounting plate screws, rotate the plates into position as shown and re- install and tighten all 8 back panel screws. 5. Push the feeder to the top of the hole and secure the mount plates to the wall with appropriate fasteners.
