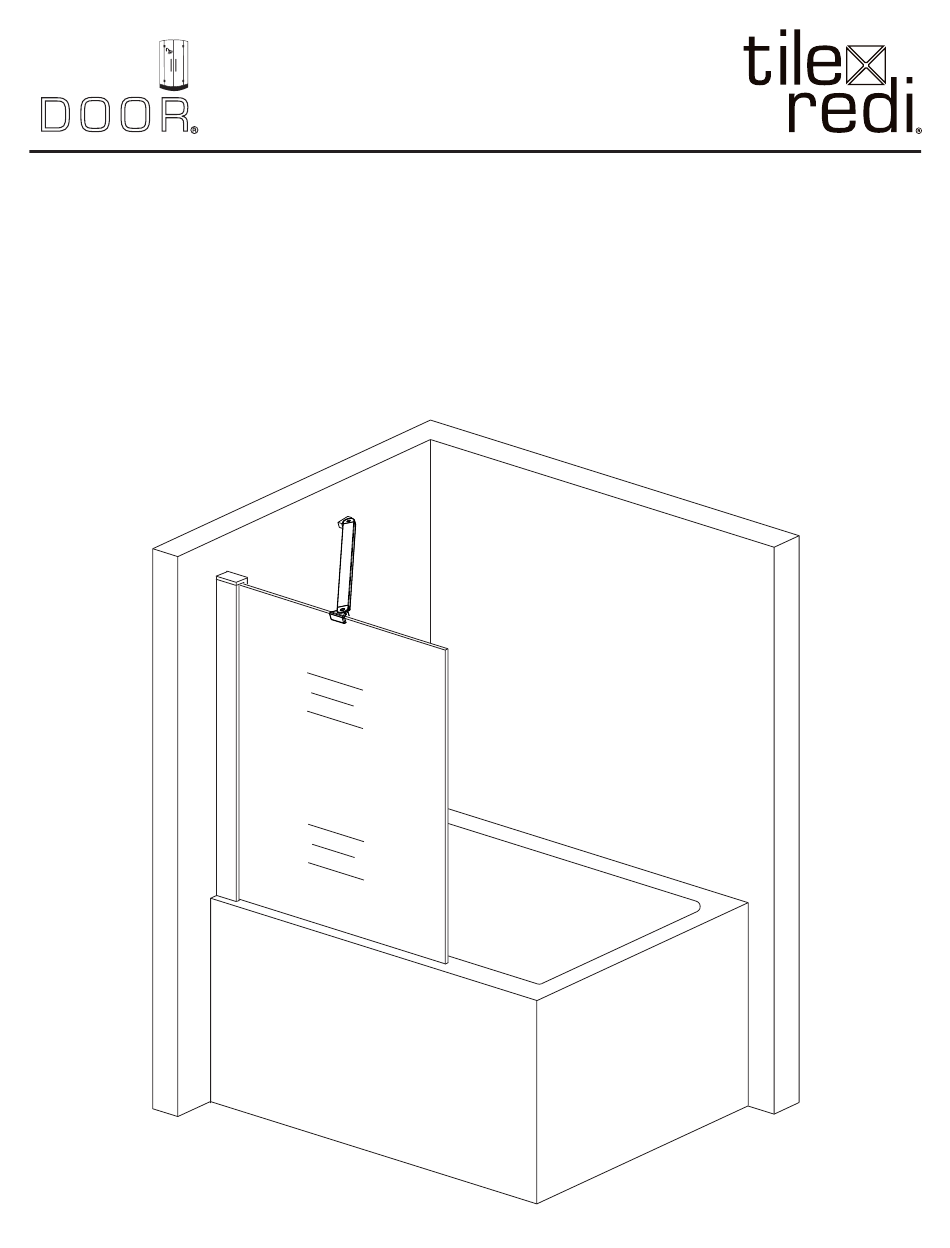

- Page 1 redi D O O R INSTALLATION MANUAL ® SERIES: 5400 CONFIGURATION: Panel RDQCI5400T-01042021...
- Page 2 RDQCI5400T-01042021...
- Page 3 DRILL BIT (Ø 1/8”, Ø 1/4”) Side Rail Top Rail Cap Panel Side Strip Anchors Screws Support Bar RDQCI5400T-01042021...
- Page 4 RDQCI5400T-01042021...
- Page 5 60” Cut your side rail (A) to 60” . ¼” Place your side rail (A) against your desired wall. After confirming your position with a level, mark your wall through the frames pre-drilled holes. Your side rail should be placed a minimum of 1/2” from the edge of your bathtub.
- Page 6 Now place your side rail (A) back into your shower enclosure and screw your frame into place using the provided screws (E). To protect the glass please make sure to leave the corner protectors until after the item has been in- stalled.
- Page 7 ¼” To install, find the Support Bar (F) loosen the Support Bar Screws and dry fit the Support Bar assembly as shown. Take the Wall Mount side and make it flush against the wall. Mark the locations of the Panel Mount and the Wall Mount, and then remove the Support Bar assembly. Using the Wall Mount, mark the location of the pre-drilled holes on your support wall.
- Page 8 Proceed to install the Top Rail Cap (B) as illustrated. Apply some silicone to the outside edge of the shower enclosure (between the wall profiles and wall, and between the frame and the shower pan) to ensure a waterproof seal. After installation, allow 24 hours for silicone to cure before being used.
- Page 9 4450 NW 126 Avenue, Suite 101, Coral Springs, FL 33065 800-648-9212 | sales@tileredi.com www.tileredi.com Tile Redi® and Redi Door® trademarks and logos are owned by and the Intellectual Property of Tile Redi, LLC. ©2021 Tile Redi, LLC. All Rights Reserved. RDQCI5400T-01042021...
