Step 1

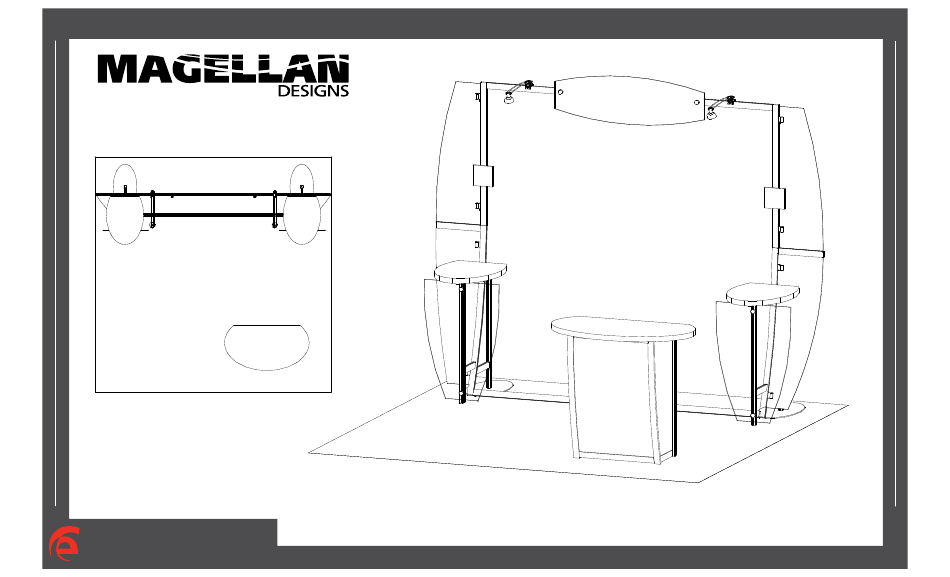

Order #XXXXX - VK-1240 - General Layout
866.652.2100
10'
Plan View
10'
Perspective View
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2015
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 5

Advertisement

loading

Related Manuals for Magellan VK-1240

Summary of Contents for Magellan VK-1240

  • Page 1 Step 1 Order #XXXXX - VK-1240 - General Layout 866.652.2100 10’ Plan View 10’ Perspective View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2015 w w w . c l a s s i c e x h i b i t s . c o m...
  • Page 2 Typical Connection Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Magellan displays are created specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
  • Page 3 Step 1 Order #XXXXX - VK-1240 - Backwall Assembly 866.652.2100 Item Qty. Description Item Qty. Description Oval Base Plate 49.55” Curved Vertical Extrusion 35” Vertical Backwall Support 42” Vertical Extrusion 3/3a 11.396” Horizontal Extrusion 44” Horizontal Extrusion 4/4a 4.318” Horizontal Extrusion 44”...
  • Page 4 Step 2 Order #XXXXX - VK-1240 - Backwall Assembly Cont’d 866.652.2100 Item Qty. Description 13/13A 37.5”h Vertical Extrusion Counter Flange 14/14A 15.7689”w Horizontal Extrusion 15/15A 9.3552”w Horizontal Extrusion Steps: 1) Connect horizontals [14 & 15] to vertical [13]. 2) Connect horizontals [14A & 15A] to vertical [13A].
  • Page 5 Step 3 Order #XXXXX - VK-1240 - Backwall Counters 866.652.2100 Item Qty. Description Counter Tops Counter Façade Monitor Mounts Steps: 1) Attach Monitor Mounts to backwall vertical extrusions. Monitor Mount Attachment detail. 2) Connect Counter Façade Graphics to backwall counter verticals.
  • Page 6 Step 4 Order #XXXXX - VK-1240 - Backwall Attachments 866.652.2100 Light Connection Attach lights to Item Qty. Description backwall where 13.875”w Horizontal Extusion desired and Graphic Wings tighten in place. Steps: 1) Attach wings and wing dividers [16] to verticals using A10 Clamps.
  • Page 7 Step 5 Order #XXXXX - VK-1240 - Pedestal Assembly 866.652.2100 Item Qty. Description Steps: 38” Vertical Extrusion w/ Door Hinges 1) Attach lower horizontals between verticals, 38” Vertical Extrusion w/ Door Stopper inserting infills as shhown. 38.4565” Curved Extrusion w/ S10 2) Attach door to vertical [17].
  • Page 8 Order #XXXXX - VK-1240 - Case Packing 1 of 2 866.652.2100 Top View of Each Level Wings Counter Top Counter Top Workstation Infills Base Plate Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 9 Order #XXXXX - VK-1240 - Case Packing 2 of 2 866.652.2100 Top View of Each Level Assembled Assembled Side Side Infills Assembled Counter Top Door Shelf 20 18 23 21 Level 1 Level 2 Level 3 Level 4 Level 5...
