Summary of Contents for Wildcat 5000

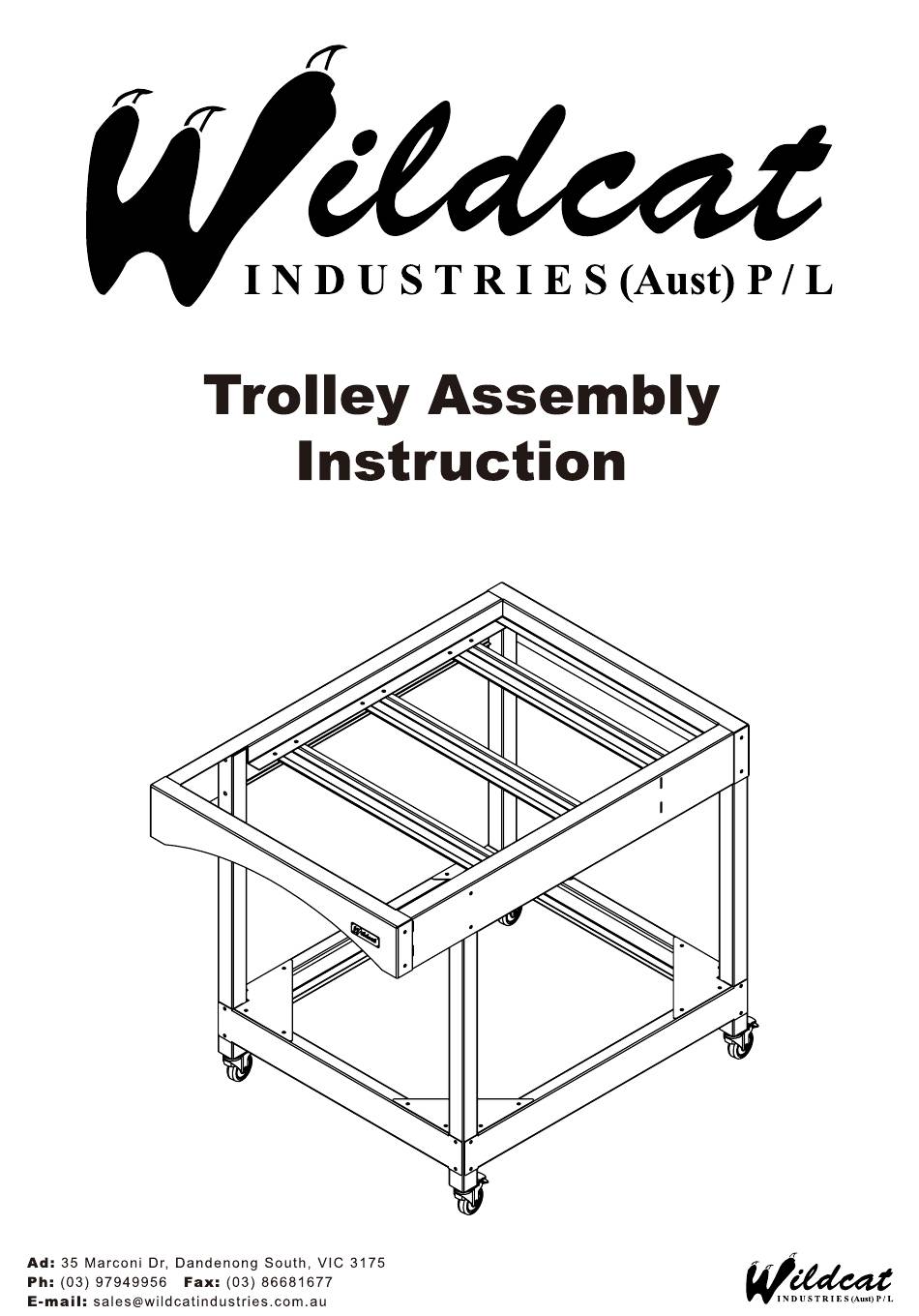

  • Page 1 Wildcat 5000 Pizza Oven...
  • Page 3 2 x Side bottom braces 2 x Front/Rear bottom braces 3 x Cross Braces...
  • Page 5 Step (2) - Now attach both Front Bottom brace and Bottom Rear brace. Remember to keep all 6mm black pan head screws fingertight.
  • Page 6 Step (3) - Attach the RHS + LHS Top panels to the legs. Simply sit the panels on the legs and align the holes on the sides. Screw the holes for both sides (fingertight).
  • Page 7 Step (4) - Now attach the Front Top panel (with the WILDCAT badge). Just simply align the holes for side panels. Use the 6mm black pan head screws and continue to keep the only fingertight.
  • Page 8 Step (5) - Now it’s time to attach the Top Rear panel. Sit the panel on the legs and align the holes. Use the 6mm black pan head screws and continue to keep the only fingertight.
  • Page 10 Step (7) - Place the 3x Cross Braces through the middle of the trolley and with 12x 6mm black pan head screws. You can now tighten all the way. Step (8) - Using a cordless drill go around and tighten every (60) 6mm black head screws. Ensuring all are now tight.
  • Page 14 5000...
