Summary of Contents for Aero TF-513

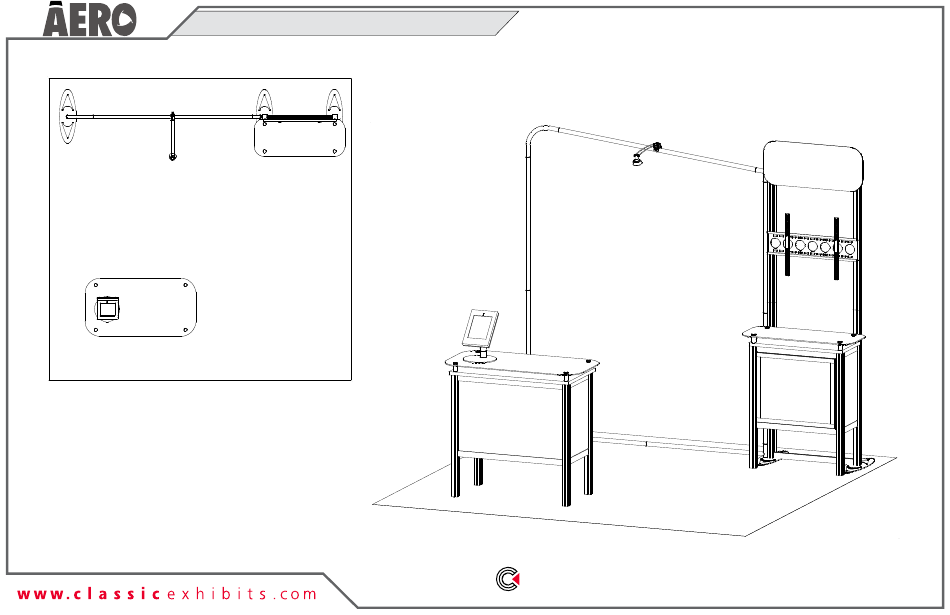

- Page 1 © 2022 Order #XXXXX TF-513 with MOD-1371 iPad Stand 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Grid View
© 2022 Order #XXXXX Grid View = 1 sq foot... -
Page 3: General Setup Instructions
© 2022 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2022 Order #XXXXX Case Packing Top View of Each Level 11A,12A Base Plates Literature Tray Wood Counter Plex Counter Graphics Shelf 11 12 Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 1 of 3...
- Page 5 © 2022 Order #XXXXX Case Packing Top View of Each Level 13,16 13A,16A Light Header (2) Infills Door Mount Plate Setup Hardware 17,17A,17A,17 9,10 Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 2 of 3...
- Page 6 © 2022 Order #XXXXX Case Packing Top View of Each Level Plex Counter Counter Top Floor Infills Door 6,6,6A,6A 1 2 3 4 5,5,5A,5A Level 1 (Bottom Level) Level 2 Level 3 Level 4 Level 5 Level 6 Case 3 of 3...
- Page 7 Aero Frame Assembly Using Your Setup Instructions The Aero Setup Instructions are created specifically for your configuration. The instructions include an exploded view of the frame which is sequentially labeled. We encourage you to review the instructions before attempting to assemble your exhibit.
-
Page 8: Back View
2) Attach base plate [1] to vertical [11] and [1A] to vertical [12], using bolt. 3) Connect horizontals [13] and [13A] between vertical assemblies [11/11A] and [12/12A]. 4) Connect assembled Aero frame to key hole on vertical [11A] and rest on nylon insert of [1A]. Item Qty. - Page 9 © 2022 Order #XXXXX Backwall Workstation Assembly Steps: 1) Attach horizontals [16] & [16A] between verticals [14] & [15]. NOTE: Install [16] at the base of door stop. Install [16A] at to top of door stop. Mount Plate Attachment 2) Attach horizontals [17] between verticals [14] & [15] Item Qty.
- Page 10 © 2022 Order #XXXXX Backwall Attachments Steps: 1) Attach lights at desired location, on top assembled. Aero frame. See Light Attachment detail. 2) Attach monitor mount to mount plate. Monitor Mount Attachment detail. Connect light to horizontal where desired and tighten in place.
-
Page 11: Completed Assembly
© 2022 Order #XXXXX MOD-1371 iPad Mount Rotate clamshell to turn iPad from portrait to landscape orientation. Steps: 1) Attach mount plate to post, using set screw. NOTE: Mount Plate must rotate to left and right before installing clamshell. 2) Attach base to post assembly, using bolt. 3) Attach clamshell to mount plate, using acorn nuts. - Page 12 © 2022 Order #XXXXX MOD-1552 with MOD-1371 Counter Steps: Item Qty. Description 1) Attach horizontals [6] between verticals [1] [2] and [3] [4]. 37.25” Vertical Extrusion w/ Door Hinges 2) Attach horizontals [5] between verticals [1] [4] and [2] [3]. 37.25”...
