OWNER'S
MANUAL

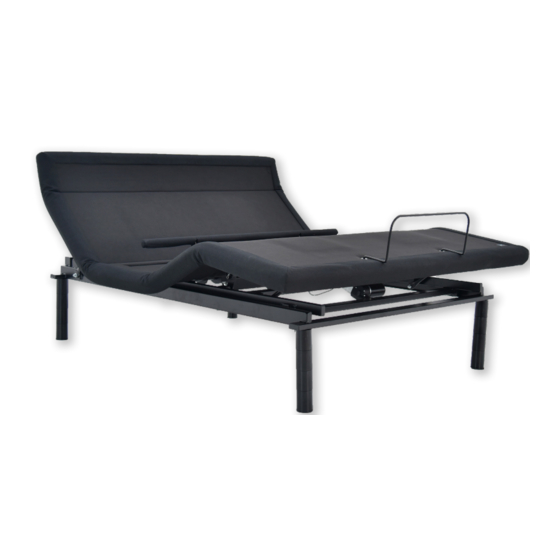

ADJUSTABLE BASE | OWNER'S MANUAL
Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.
Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the quest 4.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergomotion quest 4.0

Summary of Contents for Ergomotion quest 4.0

  • Page 1 OWNER’S MANUAL ADJUSTABLE BASE | OWNER'S MANUAL Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual. Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.

  • Page 2: Table Of Contents

    table of contents Safety Precautions and Usage Statements ............... 1-3 Parts List .

  • Page 3: Safety Precautions And Usage Statements

    safety precautions and usage statements Attention: Important Safety Disclaimers Read the following information before using this product. Failure to use a surge protection device could compromise safety or cause product malfunction and could void the electrical portion of your warranty. TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY: and foot to relieve pressure and allow for release.
  • Page 4 All Ergomotion adjustable foundations, depending on make and model, are designed and manufactured to perform and function within designated quality control parameters. Bases are subject to meticulous and rigorous inspections during weight on the base, this contact noise may be audible as the wheels make operate within these standards during normal operating use.
  • Page 5 safety precautions and usage statements providing adequate ventilation of the product and the environment. motors are not designed to operate continuously for more than 30 minutes at a time. Please allow the massaging system to rest for 30 BREAK IN PERIOD: minutes after automatic massage shut off before restarting.

  • Page 6: Parts List

    parts list Before discarding the packing materials - ensure all the parts are accounted for. All electronics and components that need to be installed are located in boxes under the base or attached to the frame. Wireless Remote Control (1) Mattress Retainer Bar (1)* Legs (6) Power Cord (1)

  • Page 7: Base And Remote Overview

    base and remote overview Massage Lumbar Massage Head Head Tilt Motor Motor Motor Motor Motor Flat Preset Position USB Ports USB Ports Zero-G® Preset Position Lifts & lowers the Lifts & lowers the head portion of the base. foot portion of the base. Memory Preset Positions Head Tilt Adjustment Lumbar Motor Adjustment...

  • Page 8: Quick Reference Guide

    quick reference guide Not to scale. For illustration purposes only. Read all instructions before beginning installation. ELECTRONICS OVERVIEW Remote Emergency Battery Backup Strap Power Cord Underbed Lighting Power Supply USB Ports USB Charger Head Motor Extension Offline Cord Voice Input Cable Head Control Massage...

  • Page 9: Installation Guide

    Do not over tighten. • Insert the Power Cord into the Power Supply. • Plug the Power Cord into a power outlet. A surge protector is recommended. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...
  • Page 10 Offline Voice Control Puck with Wireless Charger device and start controlling your base with voice commands. • Quickly test remote functions to verify proper setup and return the base to a flat position before placing the mattress on top. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 11: Offline Voice Control Puck With Wireless Charger

    offline voice control puck with wireless charger Setup the puck to enable offline voice control of your adjustable base. OVERVIEW ATTENTION: Your adjustable base can pose an entrapment hazard which is increased in households with small children and or pets. Using voice controls further increases this entrapment hazard due to the potential of Puck Cable unintentionally triggering a command vocally.
  • Page 12 offline voice control puck with wireless charger Follow the installation steps below to setup The Puck device. Step 5 Step 1 The Puck Voice Control will arrive in the Please take a minute to familiarize yourself with the voice commands Off position and you will need to activate listed on the next page.
  • Page 13 offline voice control puck voice commands Once the invocation phrase has been uttered, the microphone will be active for 8 seconds which is indicated by the blue light. While the microphone is active you can now use any of the command utterances listed below to control your adjustable base. VOICE COMMAND EXPLANATION VOICE COMMAND...

  • Page 14: Remote Control

    remote control REMOTE OVERVIEW ADJUST The HEAD arrows lift and lower the head section of the base. The FOOTarrows lift and lower the foot section of the base. One touch FLAT preset position. One touch ZERO-G® preset position. Zero-G® adjusts your legs to a higher level than your heart helping to relieve pressure off the lower back and promote circulation.
  • Page 15 remote control MOTOR FUNCTIONS MASSAGE FUNCTIONS / LIGHTING The HEAD TILTarrows will adjust The HEAD MASSAGE button will turn on the head the level of head support. massage. Cycle through 3 massage intensities. The FOOT MASSAGE button will turn on the foot massage. Cycle through 3 massage intensities.

  • Page 16: Remote Control Pairing

    Perform Step 2 within 10 seconds, adjustable base movements, please repeat the process again or call while the control box light is flashing. Ergomotion customer service: 1-888-550-3746 Power Supply Power Cord Press and hold down the Head Up and Foot Down buttons simultaneously.

  • Page 17: Connecting Strap

    connecting strap (not included) If a split setup is being installed, optional plastic connecting straps can be used to help secure the bases together. To purchase optional accessories, please call 1-888-550-3746. With the bases in their desired Re-tighten legs. Do not over tighten. Use the remaining strap and location, slightly loosen both legs repeat on other end of the base.

  • Page 18: Syncing Two Bases

    syncing two bases (optional) A Sync Cord is included with the base. Not available on Queen, Full or Full-Long size bases. The Sync Cord connects the two control boxes to a single remote for the synchronization of two bases. This process is most commonly used for syncing two connected TXL bases. Unplug bases from power source.

  • Page 19: Headboard Brackets

    headboard bracket installation guide (optional) Headboard Brackets are an optional accessory. A 9/16” (14 mm) & 1/2” (13 mm) socket and crescent wrench are necessary to complete installation. a.) Align the hole in the bracket to the brass sleeve into which the Attach the plastic spacer and T-Bracket.

  • Page 20: Emergency Battery Backup Strap

    battery backup strap (optional) For emergency use only, in case of a power outage. Batteries are not to be used for normal operation of the bed. Disconnect the Power Supply from the input power cord. Connect the end of the Battery Backup Strap to the input power cord that is attached to the control box.

  • Page 21: Troubleshooting

    Plug bed base into a different electrical outlet, or test current outlet with another working appliance (a grounded, electrical surge protector is recommended). If issue is not resolved by following the instructions above, locate serial number on warranty card or back of remote and call Ergomotion Customer Service: US 1-888-550-3746...
  • Page 22 Nationwide Customer Service ©2021 Ergomotion Inc V001_10/2021 Phone 1.844.534.3676 1.805.979.9399 Email info@ergomotion.com www.ergomotion.com Serial Number:...
