iGenix IG9600WIFI User Manual

Smart air purifier white

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

USER MANUAL

Smart Air Purifier White

IG9600WIFI

Please read these instructions carefully before use and retain for future reference

Before switching on your appliance,

always check for any damage which may have been caused in transit

Table of Contents

Need help?

Do you have a question about the IG9600WIFI and is the answer not in the manual?

Questions and answers

Summary of Contents for iGenix IG9600WIFI

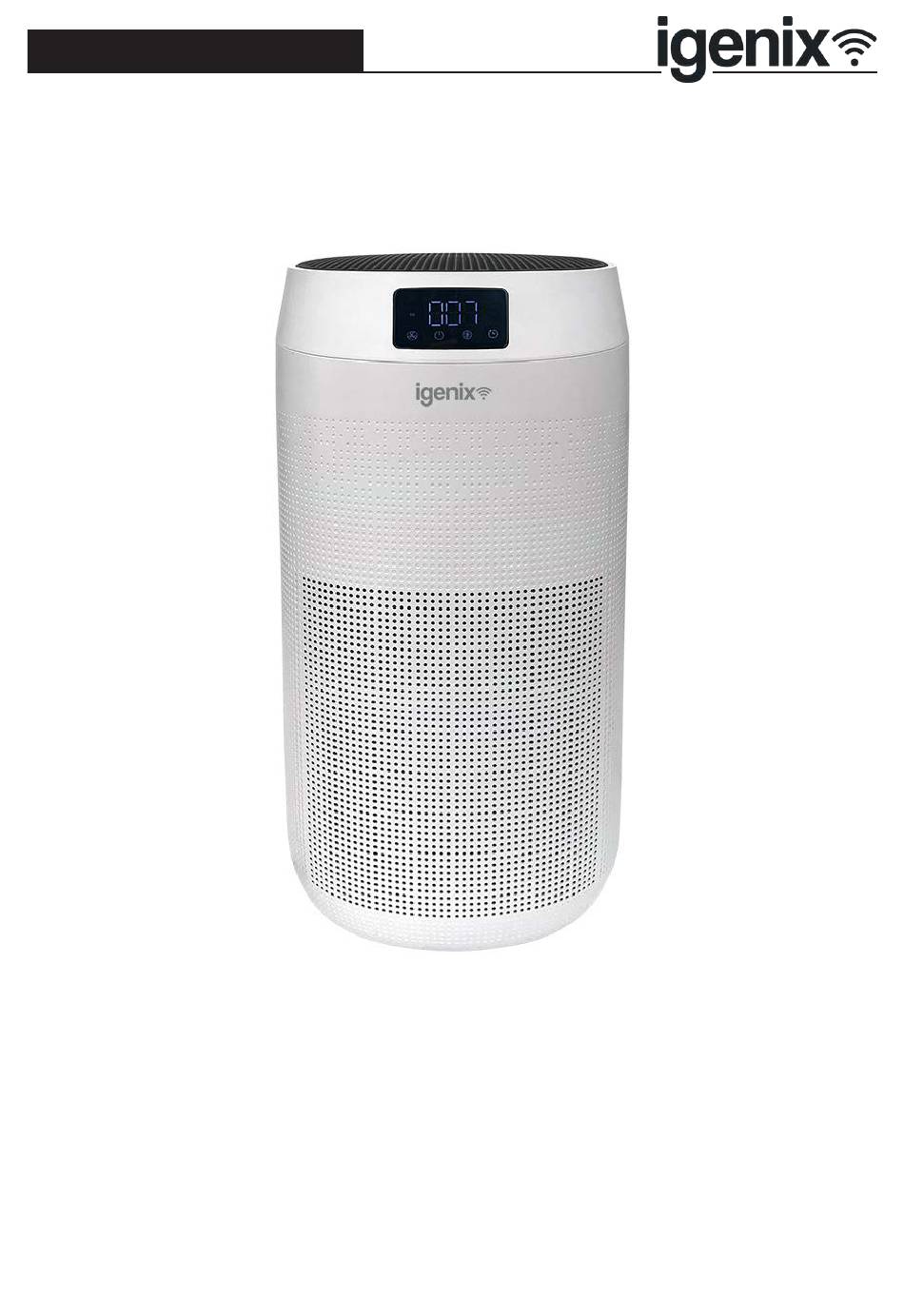

Page 1 USER MANUAL Smart Air Purifier White IG9600WIFI Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
Page 2: Table Of Contents
Appliance Overview ..............6 Filter Installation ................7 Operating Instructions ............8-9 Tips For Correct Use ..............9 Setting Up Wi-Fi Function ..........10-18 Cleaning and Maintenance ............. 19 Troubleshooting ................ 20 Fuse Replacement ..............21 Disposal Information ............... 21 Igenix Warranty Information ........... 22-23...
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Carefully read the instructions before operating the unit. Please retain this manual for future reference. Important: This product is intended for domestic and light office use ONLY and not for commercial, industrial or outdoor use. When using electrical appliances, basic safety precautions should always be followed: •...
Page 4 • Do not allow any liquid or any flammable detergent to get into the product. This is to avoid electric shocks and fire. • Do not clean the unit by spraying it or immersing in water. • Do not unplug the unit while it is working, as this could damage the electronic circuits.
Page 5: Technical Specifications
SPECIFICATION Model IG9600WIFI Voltage (V) 220 - 240 Frequency (Hz) 50 - 60 Power (W) Coverage Area (m CADR (m Air Flow (m Filter Type H13 HEPA Filtration 3 Stage (pre-filter - activated carbon filter - HEPA filter) Timer 2H / 4H / 8H...
Page 6: Appliance Overview
APPLIANCE OVERVIEW Air Outlet Top Shell Control Panel Handle Fans Component Light box Air Quality Sensor Back Shell Filter* Main Body *Replacement H13 HEPA filter available - search for code IGAP0001 on the Igenix website: www.igenix.co.uk...
Page 7: Filter Installation
FILTER INSTALLATION IMPORTANT: Before use, ensure all packaging on the filter is removed. Always ensure the machine is unplugged before removing or installing the filter. Open Close Close 1. Press and hold the release button to remove the back cover. 2.
Page 8: Operating Instructions
OPERATING INSTRUCTIONS CONTROL PANEL A. Wi-Fi E. Change Filter Indicator B. Delay Timer (2H / 4H / 8H) F. Anion/UV Function Indicator C. Sleep and High Mode G. PM2.5 Value (air quality rating) D. Auto Mode Light Indicator • Red light emitted – air quality is poor; the machine is operating in a high mode. •...
Page 9: Tips For Correct Use
Wind Speed Button Press the Wind Speed button to cycle through the different wind speed options (Auto – Sleep – High). Once the desired wind speed is selected the corresponding light will show on the digital display. Sleep Mode This function is intended for night time use as it gradually reduces operation of the appliance before turning off.
Page 10: Setting Up Wi-Fi Function
SETTING UP WI-FI FUNCTION 1. Setting up the Igenix app • Download the Igenix app from Apple Store for IOS or from Google Play for android and install the app on your device. • Register your new Igenix account and sign in to the app.
Page 11 Wi-Fi Troubleshooting Description Analysis of cause Appliance can’t be Check the mobile connected WLAN router SSID and configured successfully password is correct Check whether there are additional settings of WLAN router as shown below: a) Firewall by router itself or by PC b) MAC address filtering c) Hidden SSID d) DHCP server...
Page 12 SYNCING DEVICE WITH AMAZON ALEXA 1. Set up Amazon Echo and enable Igenix app • Search the “Amazon Alexa” app on the Apple Store for IOS, or on Google Play for Android, and install the app to your device.
Page 13 1a. Set up Echo with Alexa app Note: You will need to purchase an Amazon Echo device to utilise this functionality. If you already have an Echo device that is set up you can skip this step. • Plug your Echo device (Echo, Echo Tap or Echo Dot) into a power socket and turn it on. •...
Page 14 • Select your Echo device (fig.6), choose the appropriate language (fig.7), and then tap “CONNECT TO WI-FI” (fig.8) fig.6 fig.7 fig.8 • Hold down the dot button on the top of your Echo device until the orange light shows up (fig.9), and then tap “CONTINUE”.
Page 15 • Select a Wi-Fi network to let Echo access the Internet (fig.12). Type in the Wi-Fi password and then tap “CONNECT” (fig.13). Echo may take several minutes to connect to the network (fig.14). fig.12 fig.13 fig.14 • Tap “CONTINUE” when Echo is connected to the network (fig.15). After an introduction video, tap “NEXT”...
Page 16 • You will be redirected to the account link page. • Type in your Igenix account and password and then tap “Link Now” to link your Igenix account (fig.19) Note: The country, the account and the password must match the exact content in step 2.
Page 17 • Alternatively, you can select in the “Menu” option “Smart Home” (fig.20) and then tap “DISCOVER” to discover the smart devices (fig.21). Discovered devices will be shown in the list (fig.22). Note: Every time you change the device’s name in the Igenix app, Echo must rediscover before you can control them. fig.20 fig.21...
Page 18 CONTROL YOUR AIR PURIFIER BY VOICE COMMANDS Now you can control your Igenix device through Echo. You can use the following commands to control your Air Purifier: To Turn on Power: “Alexa, turn on AIR PURIFIER.” “Alexa, turn off AIR PURIFIER.”...
Page 19: Cleaning And Maintenance
• NOTE: Ensure that you are using the specially designed H13 HEPA filter supplied by Igenix. These filters are available by searching for code IGAP0001 on the igenix website (www.igenix.co.uk) • Once the new filter has been correctly installed into the unit, press and hold the Wind Speed...
Page 20: Troubleshooting
TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services: Problem Solution • It isn’t plugged into a power socket • There is a power outage Appliance isn’t working • The home leakage switch or fuse is cut off •...
Page 21: Fuse Replacement
MAINS PLUG FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class I) This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place.
Page 22: Igenix Warranty Information
Igenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product.
Page 23 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
Page 24 EU: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice.
