CONTROL UNIT
CONTROL ONE 24V
230
M
Vac
230Vac
230Vac
Product code
TVPLS916CTS1
24Vdc
24Vdc
Limit-switch and working time self-learning
230
Vac
24Vdc
TVPLS916CTS1
TELECO AUTOMATION SRL -
++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com
TELEPHONE:
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
M
M
M
230Vac
230Vac
230
/
M
M
Vac
230Vac
230Vac
/
M
M
24Vdc
24Vdc
24Vdc
M
24Vdc
M
M
24Vdc
24Vdc
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
WITH
MOTOR FOR ADJUSTABLE SLATS
M
230Vac
M
RADIO
RECEIVER
Inputs for rain and wind sensors
Manual push-button inputs
(hold-to-run mode)
T691.02
DOC.:
TO
03/10/16
DATE:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teleco TVPLS916CTS1
Summary of Contents for Teleco TVPLS916CTS1

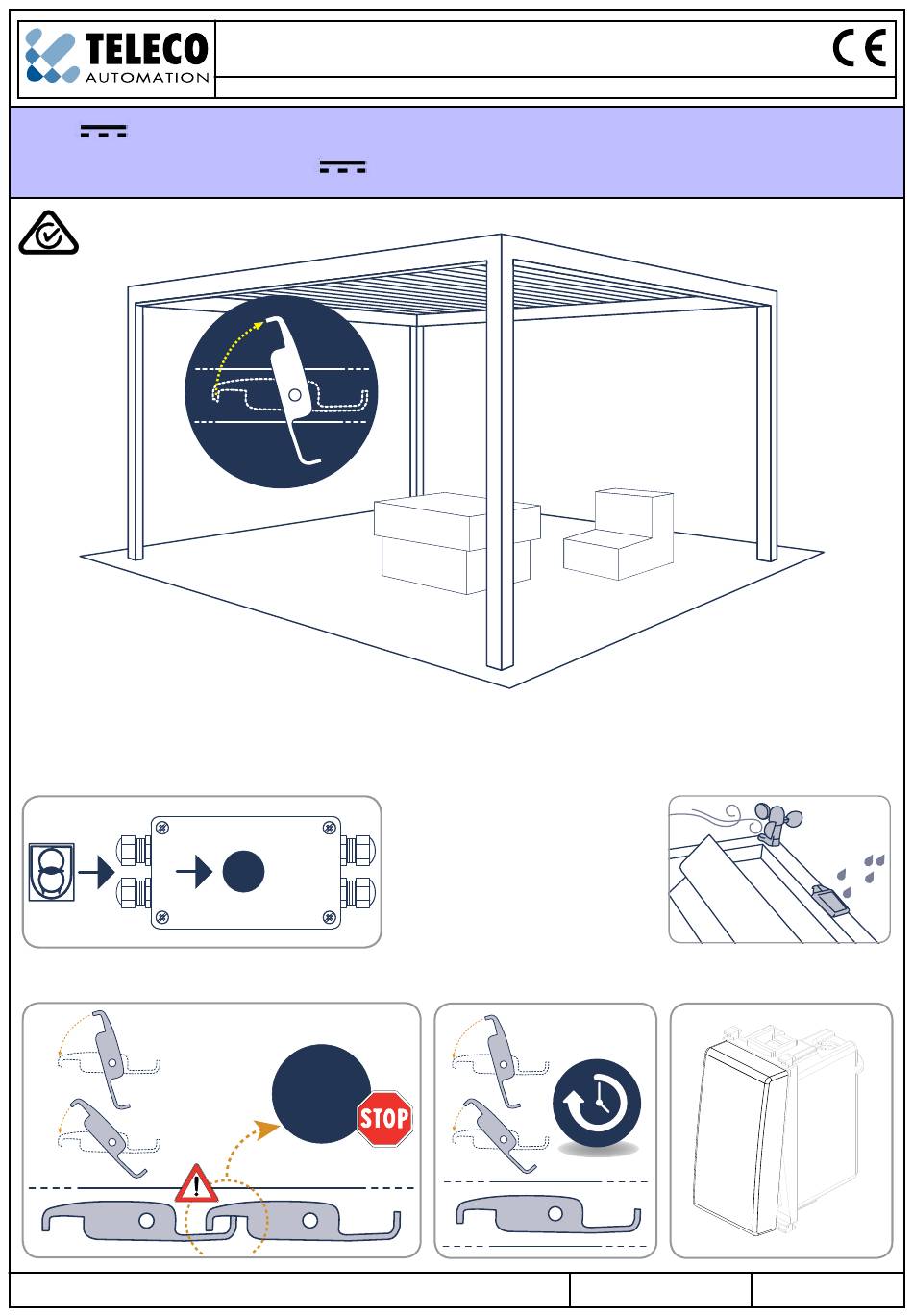

- Page 1 TELECO AUTOMATION SRL - Via dell’Artigianato, 16 - 31014 Colle Umberto (TV) ITALY ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com TELEPHONE: This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights CONTROL UNIT WITH RADIO RECEIVER...
- Page 2 3. SENSORS p. 6 Hereby Teleco automation s.r.l. declares that the product complies with the essential requirements and other relevant provisions, 3.1 WIND sensor established by the Directive 1999/5/EC. The declaration of conformity can be consulted on the web site: www.telecoautomation.com/ce.
- Page 3 TRANSMITTERS ONE SINGLE BUTTON FROM AUTOMATIC COMMANDS TRANSMITTER RESERVED FOR ANY TRANSMITTER TYPE (2 or 3 BUTTONS) PERGOLA CONTROL Open (STOP) 0 % (Closed) Close (STOP) 50 % OPEN/STOP/CLOSE 70 % Open (STOP) Close (STOP) 100 % (Open) CLOSE Open (hold-to-run) Open STOP STOP...
- Page 4 Radio codes memorization continuous TYPE OF MEMORIZATION sound keep it pressed Press the button of the transmitter 1 BUTTON: relative to the code to memorize. OPEN STOP CLOSE AUTOMATIC COMMANDS Press the button of the transmitter (2 or 3 BUTTONS) relative to the code to memorize.
- Page 5 Radio codes deletion TYPE OF DELETION keep it pressed Press the button of the transmitter continuous SINGLE RADIO CODE relative to the code to delete sound Press 5 times the button P1 and keep it pressed. The buzzer emits an intermittent sound. Press the button of the transmitter relative to the code to be deleted within 10 seconds.
- Page 6 Factory setting Alarm priority WIND sensor L2 flashes ACTIVATED HIGH The anemometer (ANEM4) detects wind speed, which the control unit compares with the threshold set through DIP4 (see table). The control unit is only compatible with anemometers generating 4 pulses per rev. DIP4 Km/h ACTIVE ALARM when Once ACTIVE ALARM...
- Page 7 Technical specifications Power supply 85 mm Max. output power 4,5A Working time 90 s Operating temperature range -20° / +50°C Reception frequency 916 MHz Radio memory capability (transmitters) Product fastening holes Rain sensor power supply (max.100mA) Anemometer 4 pulses/rotation (ANEM4) Protection rating IP54 Material of the box and its cover...
- Page 8 Teleco Automation France Teleco Automation S.r.l. Teleco Automation GmbH Teleco Automation Oceania Pty Ltd Italy France Germany Australia Tel. +39.0438.388511 Tel. +33.(0)472.145080 Tel. +49.(0)8122.9563024 Tel. +61.(07)5502.7801 Fax +39.0438.388536 Fax +33.(0)472.140503 Fax +49.(0)8122.9563026 info@telecoautomation.com info@telecofrance.com info.de@telecoautomation.com info@telecoautomation.com.au www.telecoautomation.com...
