Summary of Contents for Heat Surge Power Panel

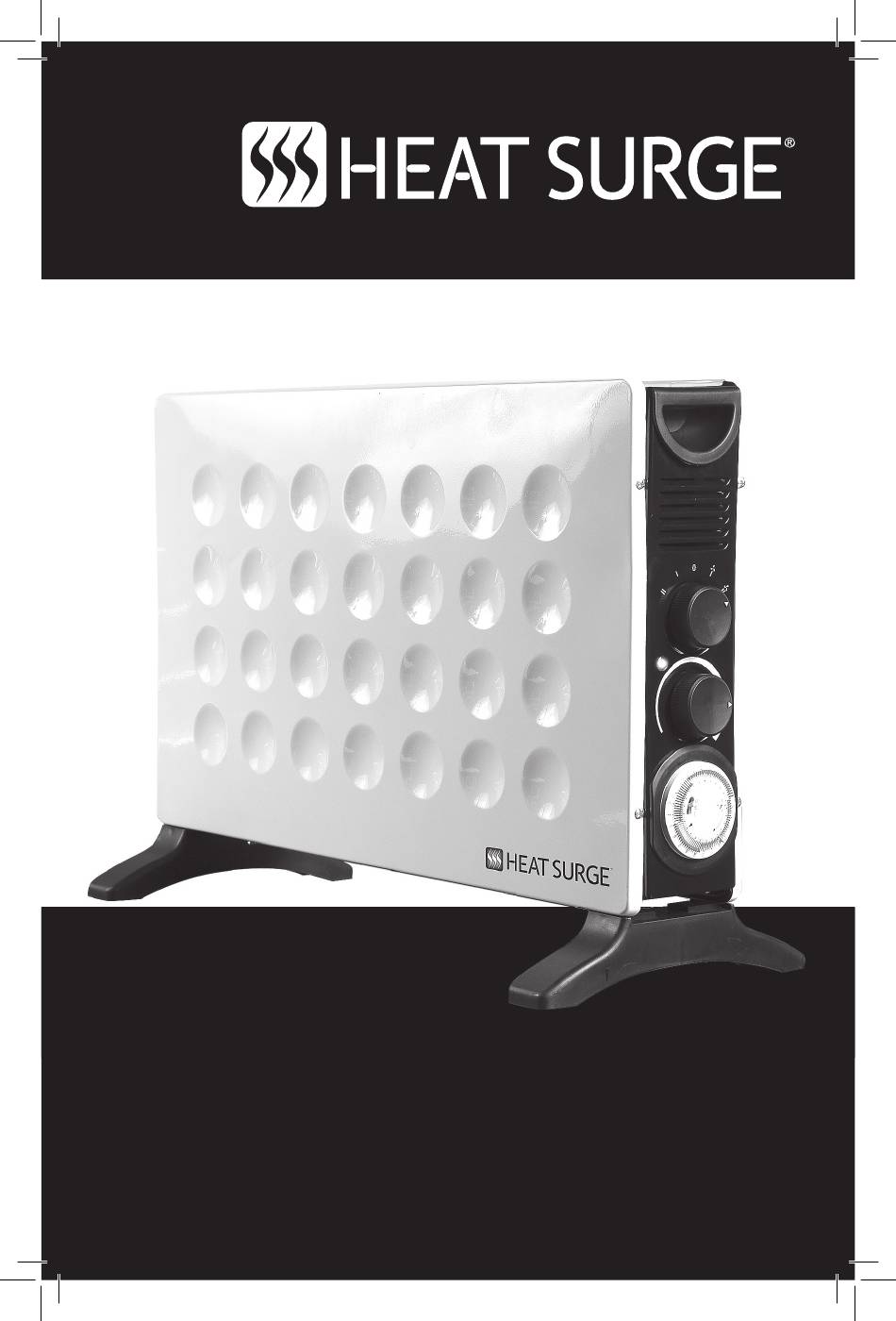

- Page 1 HEATER MANUAL Genuine Heat Surge Power Panel...
- Page 2 Run) or in Position "Clock" for 24 Hour Multiple Timer Function. If the 24 Hour Multiple Timer is in Position "0" the entire Power Panel is turned off and will not heat. Be sure the 24 Hour Multiple Timer Large Red Switch is in Position "1"...
- Page 3 2. Set It and Forget It Temperature Control: Once the desired temperature is reached, turn the thermostat counterclockwise until it reaches the thermostat set point and the Power Panel goes into Standby Heat Mode indicated by an audible "click" and the Active Heat Status Light going out.

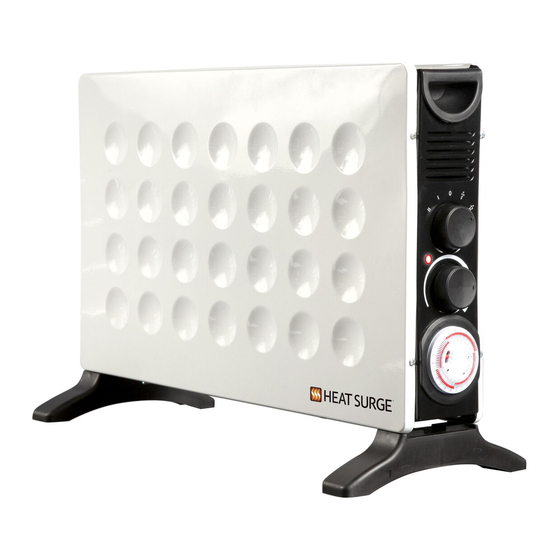

- Page 4 Turbo Blower Selector Active Heat Status Light Temperature Control 24 Hour Feet Multiple Timer Before using your new Heat Surge Power Panel, you must mount the feet : Simply secure the feet to the bottom with a Phillips head screwdriver.
- Page 5 Time of Day Triangle Arrow. Your 24 Hour Multiple Timer is now ready to set times to turn ON the Power Panel, and times to turn OFF the Power Panel. Multiple ON and Off times can be selected during the day.
- Page 6 6. Safety: The Power Panel is not designed for use in bathrooms, washrooms or other damp areas. WARNING: The upper air outlet area and grilles of the unit must not be covered or near curtains or blankets. Keep a clear space of at least 1 foot around the Power Panel at all times.
- Page 7 This warranty applies only to the original purchaser of this product from the original date of purchase. At its option, Heat Surge will repair or replace this product if it is found to be defective in material or workmanship. While within the warranty period, defective product may be returned to Heat Surge.
- Page 8 AMISH-INSPIRED AMERICA’S GREATEST F I R E P L A C E P.O. Box 9902 Canton, OH 44711 www.HeatSurge.com customerservice@heatsurge.com ©2021 HS M4636 BR22388R-1...
