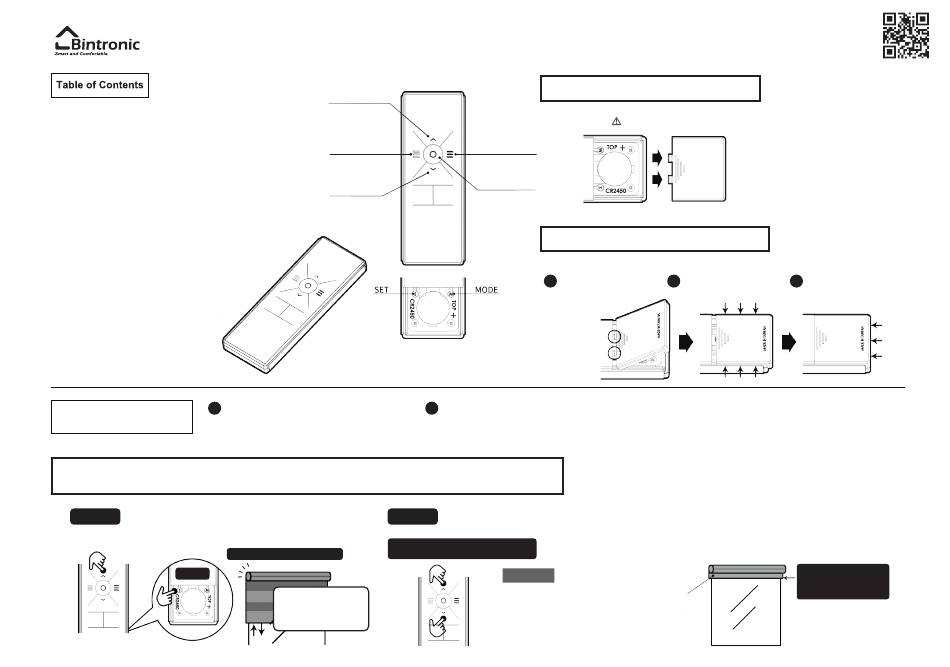

Bintronic Smart Zebra Instruction Manual

Motorized/Smart Zebra Shades
Instruction Manual

1-1 Setting or modifying position of Upper-Limit

1-2 Setting Or Modifying Position Of Lower-Limit
1-3 Setting Of Light Filtering Position
1-4 Setting Of Auto Light Filtering
2-1 Adding Another Remote Control Unit
3-1 Alter Direction Of Zebra Shade Movement
4-1 Clear Off Password
5-1 Externally Connected Manual Switch Box
6-1 Battery Replacement
6-2 Product Specifications
6-3 Quick Setting Index
6-4 Instructions For Using Remote Control Holder
1
When setting Upper-/Lower-Limit points,
Key check-points prior to
set Upper-Limit first, then the Lower-Limit.
making settings
1-1 Setting or modifying position of Upper-Limit
Press [SET] + [UP] keys until the Motor
STEP-1
STEP-1
makes a twitch, indicating the setting mode
of Upper-Limit is activated.
back
UP
UPWARD
LIGHT FILTERING
DOWN
STEP-2
STEP-1
Tap to fine tune. Press for 2 seconds,
the Motor will make a twitch and it will move continuously.
When the Motor makes a
twitch, the Zebra Shade will
move upwards and
downwards at the same time
as a response.
Copyright © 2022 Bintronic Enterprise
BINTRONIC ENTERPRISE CO., LTD
No.62, Bengong 5th Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan (R.O.C.)
Email: sales@bintronic.com
This instruction manual version is v1.0.
How to open Battery Compartment Cover
RIGHTWARD
LIGHT FILTERING
STOP
How to replace Battery Compartment Cover
1
Insert latches into
corresponding slots
Insert latches
2
First, make sure if the direction of movement is correct. Verify if the Zebra Shade moves upwards
by pressing [UP] and downwards by pressing [DOWN]. After that, carry out setting or modification
of Upper-/Lower-Limit points. In case the Zebra Shade moves in the opposite direction, refer to
the Steps of Item 3-1 in Table of Contents to correct the direction.
Press [UP] or [DOWN] key to move the Zebra Shade to a pre-determined position,
to be set as the Upper-Limit.
CAUTION
While the Shade is getting close to reaching
the Upper-Limit, please press [STOP] to stop
the movement to avoid damage to the motor.
Then, tap to fine tune to the place where you
would like it to be set up as the Upper-Limit.
All Rights Reserved.
Push the cover out
Place Battery
2 3
Compartment Cover
to engage it with Slides
press [STOP] and tap
to fine tune to the
Upper-Limit
Push the cover in
P1
