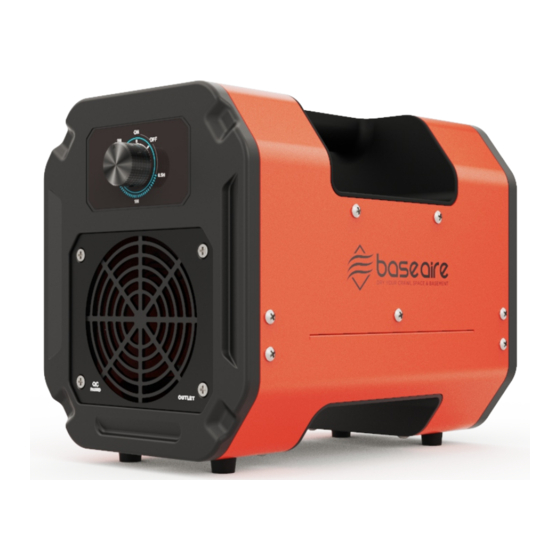

- Page 1 UVC2 Pro Ozone Generator Installation & Operations Manual Tel: 1-888-641-8862 Web: www.baseaire.com E-mail: sales@baseaire.com...
-
Page 2: Table Of Contents
Table Of Contents ............Device Description ............Operation ............Mistakes and shortcomings ............Maintenance ............Transportation And Storage ............Technical Annex ............Electrical wiring diagram ............Limited Warranty... -
Page 3: Device Description
Device Description The UVC2 Pro ozone generator of the Baseaire series uses oxygen in the surrounding air as a molecular compound. The ozone generator sucks in the surrounding air and performs a discharge procedure. After that, energy breaks the diatomic oxygen molecule into two single oxygen atoms in the form of free radicals. -
Page 4: Operation
Set the timer to the required run time. Then turn on the device. The display panel will light up. The cleaning cycle will begin immediately. Once the preset time has passed, the UVC2 Pro Ozone Generator will automatically shut down. - Page 5 Warning The risk of ozone causing harm to the human body! During use, if you smell ozone outside the working area, the machine must stop working immediately. Ventilate the room thoroughly. The following values are used as a general reference for determining the processing time: The treatment time is in min Type Of Smell Room size<...
-
Page 6: Mistakes And Shortcomings
Mistakes and shortcomings The equipment has been checked for normal function several times during the production process. If the fault still occurs, please check the equipment according to the following list. Warning Electric shock is life-threatening! Before performing any operation on the device, please unplug the power plug from the socket. -
Page 7: Maintenance
Maintenance Electric Shock Is Life-threatening! Before performing any operation on the device, please unplug the power plug from the socket. Do not bypass any electrical safety devices! Inhalation Of Ozone Can Cause Injury! After the equipment stops running, please wait for a while to ensure that the ozone concentration is lower than the specified value, and then perform maintenance and cleaning. -
Page 8: Transportation And Storage
When the device is not in use, please observe the following storage conditions: Store the Baseaire UVC2 Pro ozone generator in a dry place to avoid the influence of bad weather, and cover it to protect it from invasive dust. -
Page 9: Technical Annex
Technical Annex Parameter Value Power 110V / 60HZ Environmental Humidity Requirements < 55% Airflow 130CFM / 220CMH 7,000 mg/h Ozone Output Operating Temperature 14℉ ~ 95℉ < 65db Sound Pressure Level Service Life 20.000 h 1000+ square feet Size For Dimensions (l×w×h) 10.2 x 7.1 x 8.7 in Minimum Distance From Walls And... -
Page 10: Electrical Wiring Diagram
Electrical wiring diagram... -
Page 11: Limited Warranty
Limited Warranty All warranty benefits apply to the original owner only. Warranty cannot be transferred or assigned. Warranty Period Warranty becomes effective since the date of original purchase and will last for two (2) years. Who’s covered? This limited warranty is only effective for the original purchaser. It is NOT transferable. Who’s Not covered? This limited warranty is only effective for the original purchaser. - Page 12 Limited Warranty Exclusions EXCLUSIONS: DAMAGE DUE TO THE FOLLOWING IS NOT COVERED UNDER WARRANTY ACTS OF NATURE- INCLUDING BUT NOT LIMITED TO: Flooding Fire Water Damage Hurricane Storm Damage IMPROPER USAGE-INCLUDING BUT NOT LIMITED TO: Pool/spa/tub Applications Misuse, Abuse Or Tampering Whether Intentional Or Accidental Improper Installation Or Design Mproper Voltage Lack Of Normal Care...
