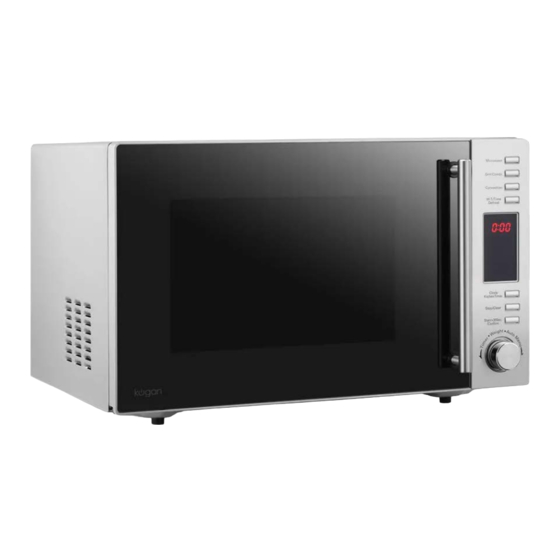

Kogan KAMWO28CSSB User Manual

28l stainless steel convection
Hide thumbs Also See for KAMWO28CSSB:

Advertisement

Quick Links

Download this manual
28L STAINLESS STEEL
CONVECTION
MICROWAVE OVEN
KAMWO28CSSB

Advertisement

loading
Need help?

Need help?

Do you have a question about the KAMWO28CSSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan KAMWO28CSSB

Summary of Contents for Kogan KAMWO28CSSB

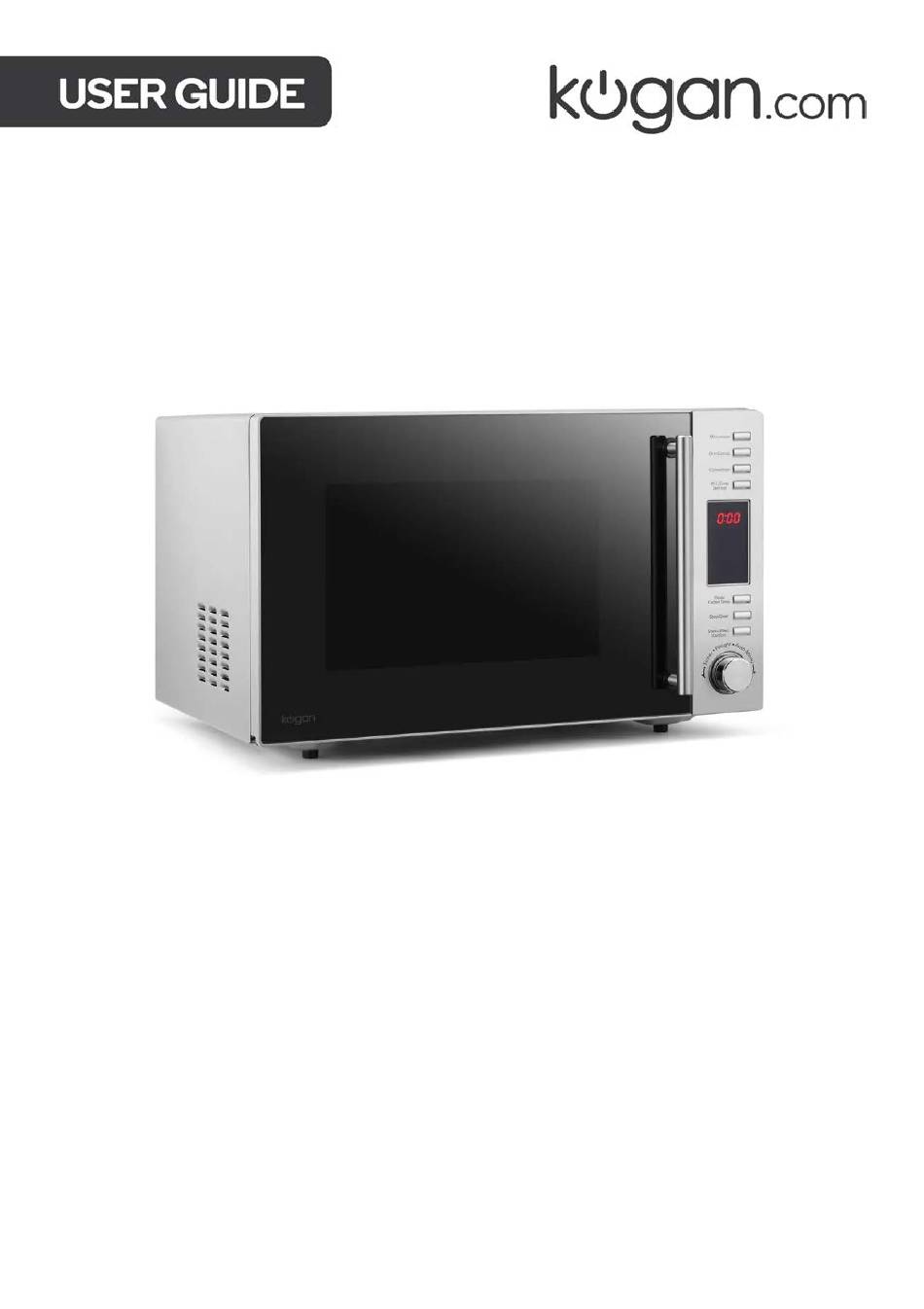

  • Page 1 28L STAINLESS STEEL CONVECTION MICROWAVE OVEN KAMWO28CSSB...

  • Page 2: Table Of Contents

    Safety & Warnings Overview Utensils Operation Cleaning & Care Troubleshooting Specifications Notes...

  • Page 3: Safety & Warnings

    • Liquids and other foods must NOT be heated in sealed containers as they are liable to explode. • It is hazardous for anyone other than a Kogan technician to carry out repairs that involve the removal of the cover, which gives protection against microwave energy.
  • Page 4 • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • Do not store or use this appliance outdoors.
  • Page 5 Cleaning • Be sure to unplug the unit from the power supply before cleaning. • The door frame, door seal and neighbouring parts should be cleaned carefully with a damp cloth when dirty. • For easier cleaning, place half a lemon in a bowl, add 300ml of water and heat on 100% microwave power for 10 minutes.

  • Page 6: Overview

    OVERVIEW Remove the oven and all materials from the carton and oven cavity. Ensure the oven comes with the following accessories: • 1 x Glass tray • 1 x Turntable ring assembly • 1 x User guide Control panel Observation window Turntable shaft Door assembly Turntable ring assembly...
  • Page 7 • Both glass tray and turntable ring assembly must be used during cooking. • All food and containers of food should be placed on the glass tray for cooking. • If the glass tray or turntable ring assembly cracks or breaks, contact the help.Kogan.com.
  • Page 8 INSTALLATION Countertop installation Remove all packing material and accessories. Examine the oven for any damage such as dents or a broken door. Do not install the oven if it appears to be damaged. Remove any protective film found on the microwave oven surface. Note: Do NOT remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

  • Page 9: Utensils

    UTENSILS See the list below of "Materials you can use in a microwave oven" and "Materials to be avoid in a microwave oven". There may be certain non-metallic utensils that are not safe for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test Fill a microwave-safe container with 1 cup of cold water (250ml), along with the utensil in question.
  • Page 10 Use to cover food for reheating and absorbing fat. Do not Paper towels leave oven unattended while cooking. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Ensure the utensil is marked "microwave safe".

  • Page 11: Operation

    OPERATION Clock Setting When the microwave oven is powered on, the oven will display "0:00" and the buzzer will ring once. Press "CLOCK/KITCHEN TIMER" once. "00:00" displays. Turn " " to adjust the hour figures, the input time should be within 0--23 (24- hour).
  • Page 12 Microwave Cooking Press " Microwave" once, the screen will display "P100". Press "Microwave" repeatedly to choose the power you want and "P100", "P 80", "P 50", "P 30" or "P 10" will display for each added press. Then press "START/+30SEC./CONFIRM" to confirm and turn " "...
  • Page 13 Example: If you want to use grill power to cook for 10 minutes, you can operate the oven as the following steps. Press "Grill/Combi." once, the screen displays "G-1". Press "Start/+30Sec./Confirm" to confirm. Turn " " to adjust the cooking time until the oven displays "10:00". Press "Start/+30Sec./Confirm"...
  • Page 14 Put the food into the oven and close the door. Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.) Press the "START/+30SEC./CONFIRM" key to start cooking. Note: • Cooking time cannot be entered until the preheating temperature is reached. If the temperature arrives, door must be opened to input the cooking time.
  • Page 15 Speedy Cooking In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes. During microwave, grill, convection and combination states, cooking time can be increased by pressing "START/+30SEC./CONFIRM".
  • Page 16 A5 Vegetable 100% 1 cup (about 240g) A6 Beverage/Coffee 2 cups (about 480g) 100% 3 cups (about 720g) 50(with water 450ml) 100(with water A7 Pasta 800ml) 150(with water 1200ml) A8 Popcorn 100% Preheat at 160 A9 Cake degrees A10 Chicken 1000 1000 2000...
  • Page 17 Note: When you choose A9 cake, please do not put the cake into the oven at the beginning. The oven needs to be preheated to 160 degree first. After several minutes, the buzzer sounds twice to remind you to put the cake into the oven. After putting the cake in the oven, please press start again.
  • Page 18 Specifications The buzzer will sound once when turning the knob at the beginning. "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is opened during cooking. Once the cooking programmer has been set, "START/+30 SEC./CONFIRM" is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.

  • Page 19: Cleaning & Care

    CLEANING & CARE • Turn off the microwave and remove the power plug from the wall socket before cleaning. • Keep the inside of the microwave clean. When food splatters or spilled liquids adhere to microwave walls, wipe with a damp cloth. Mild detergent may be used if the microwave gets very dirty.

  • Page 20: Troubleshooting

    Running a microwave with no food inside it is extremely Oven started dangerous. Kogan suggest you either employ the child lock accidentally with no function or leave a glass of water inside the microwave when food in it.

  • Page 21: Specifications

    SPECIFICATIONS Rated Voltage 230-240 V - 50Hz Rated Input Power (Microwave) 1450W Rated Output Power (Microwave) 900W Rated Input (Grill) 1100W Rated Input (Convection) 2300W Oven Capacity Turntable Diameter 315mm External Dimensions (L x W x H) 520 x 500 x 326mm Net Weight Approx.

  • Page 22: Notes

    NOTES...
  • Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
