Summary of Contents for Mercedes-Benz HiLine

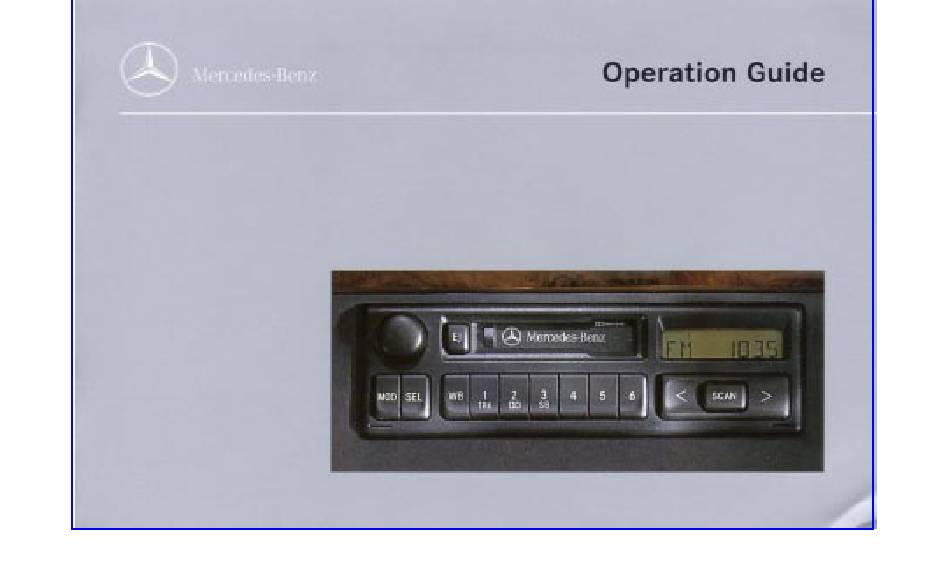

- Page 2 This Operation Guide is designed to give you both a quick reference of basic functions and a detailed description of the sound systems’s entire range of operation. Risk of accident! Always pay full attention to traffic conditions first before operating sound system controls while driving.
-
Page 3: Table Of Contents
Table of Contents Overview of “HiLine” Model Radio Manual Tuning Overview of “Premium” Model Radio Radio Models “HiLine” and “Premium” Storing Station Presets in Memory Storing Station on Preset Button Anti-theft Protection - Recoding Sequence Recalling a Station from a Preset Button... - Page 4 Compact Disc (CD) Operation Preparing the CD Changer for Operation Ejecting the CD Magazine/Changing CD’s Playing CD’s Selecting CD’s Selecting Tracks Fast Forward/Reverse General Notes on CD Operation Cellular Telephone Operation Special Features of “Premium” Model Radio Scan Function in Radio, CC and CD Modes User Memory for Audio Controls FM2 for Further Level of FM Station Presets Cassette Operation with Music Track Search and...
-
Page 5: Overview Of "Hiline" Model Radio
Overview of “HiLine” Model Radio References to page numbers on next page provide detailed description of operation. P82.60-0243-28... - Page 6 1. On/Off Switch, Volume Control Knob (Page 10) 7. In Radio Mode: “Station Preset 2” (Page 13) In Cassette Mode: Dolby Noise 2. Opening for release keys needed for radio Reduction (Page 17) removal (left and right) In CD Mode: Selection of “CD No. 2” (Page 18) 3.
-
Page 7: Overview Of "Premium" Model Radio
Overview of “Premium” Model Radio References to page numbers on next page provide detailed description of operation. P82.60-0242-28... - Page 8 1. On/Off Switch, Volume Control Knob (Page 10) 7. In Radio Mode: “Station Preset 2” (Page 13) In Cassette Mode: Dolby Noise 2. Opening for release keys needed for radio removal Reduction (Page 17) (left and right) In CD Mode: Selection of “CD No. 2” (Page 18) 3.
-
Page 9: Radio Models "Hiline" And "Premium
Radio Models “HiLine” and “Premium” Depending on the equipment level of your vehicle, one of two versions of the radio is installed. The “HiLine” model radio is installed as standard equipment and is equipped with an integrated 4-channel amplifier. The “Premium”... -
Page 10: Anti-Theft Protection - Recoding Sequence
Anti-theft Protection If the voltage supply to the radio unit is disconnected, the word “CODE” will appear on the radio’s display after the radio is switched on. In this mode, the radio is rendered inoperable. Radio function can only be restored by entering a five digit code retrieved from a radio code card (supplied with the vehicle) using the radio preset buttons. -
Page 11: Operation
Operation Switching On/Off, Adjusting Volume Switching on/off: press volume control knob . The radio is switched off by turning the ignition key to steering lock position 0 or by removing the ignition key. The radio is switched on again by turning the ignition key to steering lock positions 1 or 2. -
Page 12: Fader
Fader Press button until “FAD” appears on display. Turn volume control knob to right - sound is directed to front speakers. Turn volume control knob to left - sound is directed to rear speakers. Bass Press button until “BASS” appears on display. Turn volume control knob to right - bass level increases. -
Page 13: Resetting Audio Controls For All Modes
Resetting Audio Controls for all Modes All audio controls (FADER-BASS-TREBLE-BALANCE) are set to their center or flat positions and the volume is set to a predetermined level. “RESET” appears on the display. With any of the audio controls displayed, press audio select button again for longer than 2 seconds. -
Page 14: Manual Tuning
Manual Tuning Press and hold button for longer than 2 seconds. A beep will be heard and the frequency appears on the display. Step-by-step tuning of the frequency in ascending or descending order occurs as long as “--” appears in front of the frequency indicated on the display. -
Page 15: Recalling A Station From A Preset Button
Recalling a Station from a Preset Button Press desired station preset button. If the stored station cannot be received, then “- - - - - - - -” will appear on the display after pressing the preset button. The radio will then return to the station last being listened to. Automatically Storing Stations in Memory (“Autostore”) The “Autostore”... -
Page 16: Weather Band (Wb)
Weather Band (WB) Press button. The frequency last tuned to broadcasts weather informa- tion. If reception of that frequency is not possible, the radio automatically seeks the next weather band frequency available. Cassette (CC) Operation Playing Cassettes Insert cassette into its port until the unit pulls the cassette in. The radio auto- matically switches to cassette operation. -
Page 17: Ejecting Cassette
Ejecting Cassette Press eject button . The cassette is ejected. The unit automatically switches to radio mode and the station last tuned to. Note: The cassette is not ejected when switching the radio off. Selecting Track To select the track (switch sides), press the button. -
Page 18: Dolby B Noise Reduction System
Compact Disc (CD) Operation Preparing the CD Changer for Operation If the Mercedes-Benz integrated CD changer is installed, the CD changer can be operated as soon as the magazine containing the CD’s is loaded (see illustration). Take care in inserting the discs into the magazine properly and the magazine correctly into the CD changer port. -
Page 19: Playing Cd's
Playing CD’s Press button repeatedly until the “CD” mode appears on the display. The CD last listened to will resume play at the point where it left off . Selecting CD’s By pressing station preset buttons 1 to 6, the desired CD may be selected, at which point “LOAD”... -
Page 20: Fast Forward/Reverse
Fast Forward/Reverse Press button and hold for longer than 2 seconds while a track is playing. A beep tone will sound and the track will rapidly fast forward/reverse with reduced volume. As long as fast forward/reverse is active, the display will indicate the elapsed time of the respective track in seconds. -
Page 21: Cellular Telephone Operation
Cellular Telephone Operation The following functions are only available in conjunction with the installation of a special Mercedes-Benz cellular telephone: Incoming and outgoing calls interrupt the radio operating modes and allow the conversation to be heard using the sound system’s speakers. Even if the radio was not switched on prior to receiving or placing a phone call, the telephone signal “wakes”... -
Page 22: User Memory For Audio Controls
User Memory for Audio Controls Audio control settings for two users can be stored using the station preset buttons. The settings are available for all operation modes. While balance and fader settings are the same for all modes, bass and treble settings can be stored separately for each operation mode. -
Page 23: Cassette Operation With Music Track Search And Skip-Blank
- 6 FM Stations via the station preset buttons *) as well as - an additional audio control setting for the FM2 mode in user memory **) Please see remarks on page 13. **) Please see remarks on page 10. Cassette Operation with Music Track Search and Skip-Blank Forward/Reverse Music Track Search (Tape Program Search) Press and hold...
