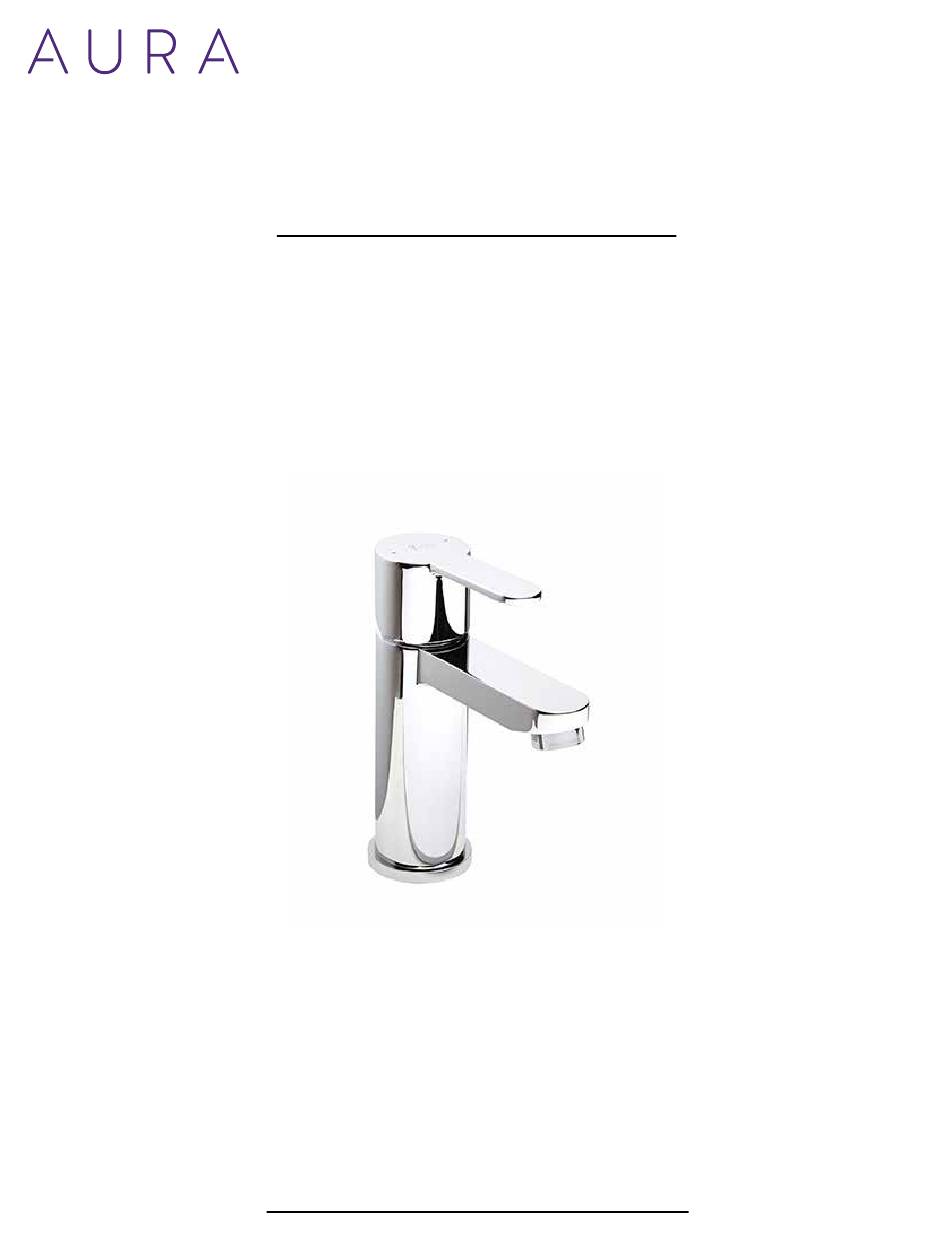

Installation Manual
Model: AFADI01R-CH
Faucet
Aura Single Hole Lavatory Faucet
Installation Manual
Please read notices on following page
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Dimensions of fixtures are approximate and may vary ± 6mm (1/4"). Structure measurements must be verified against the unit to ensure proper fit.
Advertisement
Table of Contents
Summary of Contents for Aura AFADI01R-CH Series
- Page 1 Installation Manual Model: AFADI01R-CH Faucet Aura Single Hole Lavatory Faucet Installation Manual Please read notices on following page PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
- Page 2 • Keep receipts (proof of purchase and place of purchase) for this product. The receipt is required should it be necessary to request warranty parts. MAINTENANCE & CARE FOR YOUR AURA PRODUCTS • To clean your faucet or accessory, when necessary, wash with a nonabrasive wet soapy cloth. Then wipe dry with a soft towel or cloth.
- Page 3 Installation Manual AFADI01R-CH *** Faucet Parts List ITEM DESCRIPTION ITEM DESCRIPTION Handle Set Screw Cartridge Cover Retaining Nut Washer Cartridge Aerator (1.5GPM) Mixer Body Base O’Ring Thread Pipe Plastic Nut Flexible Hose Drain with Overflow Product images and specifications are for illustrative purposes only, product design may vary. Dimensions of fixtures are approximate and may vary ±...
- Page 4 Installation Manual AFADI01R-CH *** Faucet Faucet Installation ATT E N T IO N! TIGHTEN HOSES BY HAND ONLY Mounting Kit Faucet Flex Hoses Remove the mounting kit below the Faucet (1) If Not already attached, attach both flex hoses to the faucet (hand tighten only).
- Page 5 Installation Manual AFADI01R-CH *** Faucet Cartridge Repacement Shut off the water supply lines and then pull Handle (1) to turn the water on so it drains the Faucet (6). To replace the Cartridge (5) remove the Cap (8) that covers the Set Screw (7) and loosen the Set Screw (7).
