Smart Wireless Video Doorbell

Quick Start Guide

Table of Contents

Need help?

Do you have a question about the Bell 1S and is the answer not in the manual?

Questions and answers

Summary of Contents for Mobi Technologies Bell 1S

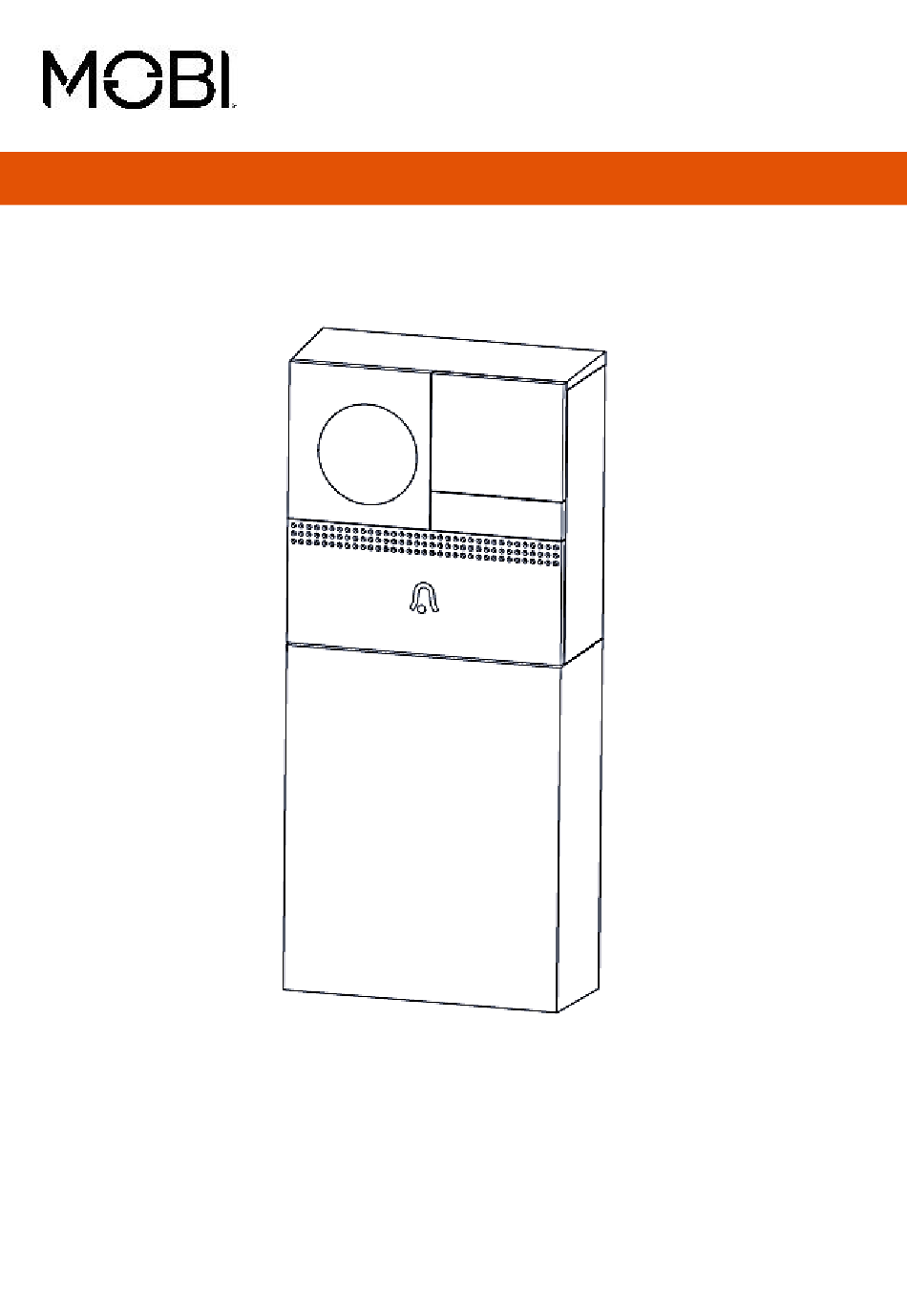

Page 1 REV. 210504-01TY Smart Wireless Video Doorbell Quick Start Guide...
Page 2 Welcome to the MOBI Family Thank you for Purchasing our MOBI Doorbell! You are now part of a growing Family of Smart Homes. Your New MOBI Smart wireless Video Doorbell, is part of our Smart Home Collection, which allows you to pair to our Smart Home HD Camera and many More Smart home products like our sensors and smart lights.
Page 3 Product Warning: MOBI VIDEO DOORBELL FCC Warning: Any Change or Modification not expressly approved by the party responsible for the compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. Operations is subject to the following two conditions: 1) this device may not cause harmful interface, and 2) this device must accept any interface received , including interface that may cause undesired operations.
Page 4: Before Getting Started
BEFORE GETTING STARTED 1. Make sure you have access to your E-mail to verify your MOBI Smart Account (You can also register with your mobile number). 2. Have your 2.4GHz Wi-Fi Network Name and Password ready. Network passwords are case, space, and number sensitive. 3.
Page 5: Parts And Components
Parts & Components Rechargeable Doorbell Camera USB cable Battery Pack B x4 A x 4h C x2 Hard wiring connection screwa Reset Pin Wall Screws (3 kinds) Adhesive table Mechanical Manual Double-sided tape Chime Adaptor Power Adaptor...
Page 6 Doorbell Camera Section HD Camera Night Vision Lens LEDs Microphone Statuslight Doorbell button Speaker microSD Reset 1 memory cardslot External powerport Back of doorbell Power Port AC12~24V – for connection to existing wired doorbell Doorbell button Press the button to activate the doorbell Statuslight Solid Red light = camera is turning on or malfunctioning Slow Blinking Red light = awaiting Wi-Fi connection...
Page 7 Rechargeable Battery Pack Reset 2 Charging indicator MiniUSB Bayonet lock Mini USB DC 5V±10%, USB Charging Port Charging indicator Solid red light = battery is charging Solid blue light = a Fully Charged Device Press and hold for 5 seconds with pin to reset Reset#2 the doorbell Bayonet lock...
Page 8 Installation Options Double-sided Adhesive Note: The Smart Doorbell wall mount can be attached to a wall using either the double-sided adhesive, or by drilling and installing the mount onto the wall using the provided screws. Step 1: Attach the double-sided adhesive tape to both sides of the bracket Step 2: Make sure you are attaching Adhesive tape to a flat clean surface.
Page 9 Installation Options Wall Screws Note: The Smart Doorbell wall mount can be attached to a wall using either the double-sided adhesive, or by drilling and installing the mount onto the wall using the provided screws. Step 1: Place the bracket against the designated wall space, and using a pencil, mark where the screws will be drilled into.
Page 10 Installation - Battery Mode Rechargeable Battery Power Mode Step 2: Mount bracket on the wall Step 1: Slide out mounting bracket using the included screws or from camera section double-sided tape, then slide Camera section into the bracket Bracket NOTE: Before proceeding to attach the Battery Pack section, please insert your optional micorSD memory card if you plan on using the recording and playback features on your MOBI Smart App.
Page 11 Optional: Mechanical Chime Adaptor Installation For added flexibility and safety the MOBI Mechanical Chime Adaptor Kit allows you to utilize an existing mechanical type doorbell for additional notification sounds within the house without use of your phone. First, turn off the power breaker on the fuse box for your existing doorbell and mechanical chime.
Page 12 Mechanical Chime Kit Installation Slightly unscrew both screw terminals to make space for the Mechanical Chime Kit setup. Connect one of the Mechanical Chime Adaptor Kit's prongs to the transformer terminal inside your existing chime (usually labeled TRANS, T, AC, or 0). Connect the other prong to the chime's front terminal (usually labeled FRONT, F, 1, or C1).
Page 13 Mechanical Chime Installation Using the included double-sided tape, attach the Mechanical Chime Adaptor Kit to your chime-box, wherever there may be space, or outside of the chime box if there is not enough room on the inside. Ensure that the wires DO NOT interfere with the mechanical parts.
Page 14 Installation - Hardwiring Mode Wired Connection Mode (Continuous Power from Existing Doorbell) Step 1: Slide out mounting bracket Step 2: Attach wires from your from camera section existing doorbell wiring to your camera unit. (powered connection) 12~24V AC Step 3: Mount bracket on the wall using the included screws or double- sided tape, then slide Camera section into the bracket...
Page 15: Add Device
REGISTER 1. Open MOBI Smart App to register. 2. Agree to the privacy policy. Enter your email address, then tap “Get Verification Code”. 3. Check your E-mail for the verification code. 4. Confirm the verification code and then create your password.
Page 16: Reset Device
RESET DEVICE Plug in your MOBI Doorbell to the battery and reset your device, You will see instructions in the app. Tap “Next Step” once the reset is completed. ENTER WI-FI Enter your 2.4GHz Wi-Fi name and password. Your Wi-Fi name and password are case, space, and number sensitive.
Page 17: Scan Qr Code
SCAN QR CODE The app will show a brief “how to Scan QR Code” tutorial. Click “Continue” to access the QR code to scan. You will hear confirmation beep once QR Code is recognized. CONNECTING You will be taken to a progress display screen.
Page 18: Live Viewing
SUCCESS You have now successfully connected your MOBI Smart Video Doorbells. Your device should display-in-app. Here you can rename your device if desired by taping the edit button and entering a friendly name for easy identification of notifications. Tap “Done” to begin viewing your device’s live feed.
Page 19 Removing Rechargeable Battery Pack Step 1: Click top right "..." to access menu, enter the "Settings" page and select "Basic Feature Settings". Step 2: Select "Unlock Battery" please allow 5-10 seconds for camera to unlock itself. You may hear the release motor unlocking. While holding Camera section firmly, pull to separate the battery pack from the camera section to charge.
Page 20: Key Features And Benefits
Key Features and Benefits: Answer from anywhere • Flexible installation options - Long lasting rechargeable • battery or existing wiring for continuous power Use Indoors or Outdoors • Clear HD Video Day or Night • Two-Way Audio • Instant Motion Alerts with Human Filtering •...
Page 21 Key Features and Benefits: Full-duplex audio When the visitor presses on the doorbell button, you will get an alert on your Cell phone where you can see and hear the vistor in your App from the doorbell if you answer. PIR Notification When the doorbell detects motion or person in its view, it can send an alarm message to your cell phone.
Page 22: Optional Accessories
Accessories Optional Accessories: 1. The chime is an item sold separately that allows you to hear your doorbell from the inside of your home. 2. This devices is connected to your account and your doorbell. 3. It can be placed anywhere around the house for your own convenience, with in range ***please view manuals guide for...
Page 23: Common Troubleshooting
COMMON TROUBLE SHOOTING Check your WiFi: MOBI’s Wireless Smart Doorbell connects only to a 2.4GHz Wi-Fi connection to allow for maximum distance form your router. Some modern routers offer both a 2.4G & 5G wireless frequency. During initial setup, ensure that your phone is connected to your 2.4GHZ/2G WiFi connection with a download speed of at least 20mbps.
Page 24 Q: Repeated failure when attempting to add device: A: It is recommended to reset and restart the device, then try to add again. Q: The device cannot be previewed properly? A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and attempt to add it again.
Page 25: Limited Product Warranty
LIMITED PRODUCT WARRANTY MOBI® warrants its products to be free from defects in material and workmanship for period of (90 days) from the date of purchase. Should the product prove to be defective at any time during the warranty period, we would either replace or repair the product at our option without charge.
