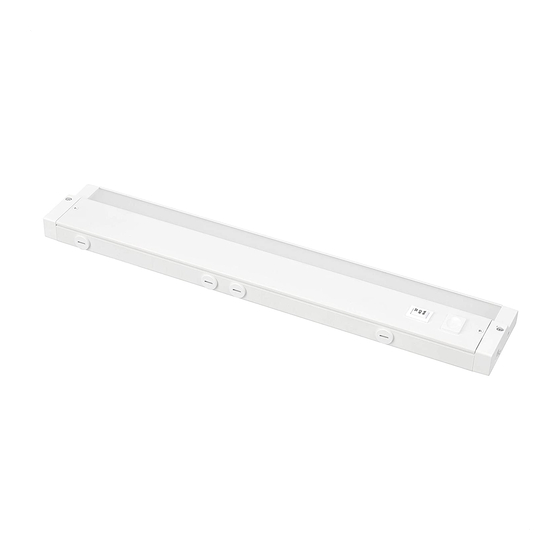

- Page 1 3-Color Temperature Level and 3-Section Dimming LED Cabinet Light Lampe de Placard à LED à 3 Températures de Couleur et Intensité Variable à 3 Niveaux Luz LED para Gabinetes con Atenuador de 3 Secciones y Nivel de Temperatura de 3 Colores B08441B3D3, B084411CGP, B084415L9D, B084417MQQ...
- Page 2 English 4 Français 24 Español 42...
- Page 3 5/8" A (x 1) B (x 1) C (x 1) Ø 1/4"...
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following: CAUTION... - Page 5 CAUTION Risk of electric shock! This product must be installed in accordance with the applicable installation codes by a person familiar with the construction and operation of the product and the hazards involved. Consult a qualified electrician to ensure correct branch circuit conductor.
- Page 6 • Contact the municipal building department to learn about applicable local codes, permits and/or inspections. • This product is intended for use in accordance with the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part I, in non-hazardous locations, and the Mexican Electrical Code [Instalaciones Eléctricas (utilización), NOM-001-SEDE].
-
Page 7: Product Description
CAUTION Risk of electric shock! DO NOT USE WHERE DIRECTLY EXPOSED TO WATER. • This product is not intended for use with emergency exits. • No liability will be accepted for damages resulting from improper use or non- compliance with these instructions. Product Description 100 % 50 %... -
Page 8: Before First Use
Jumper connector Brightness selection touch switch Color temperature selection switch Knockout plug Before First Use • Check the product for transport damages. • Remove all the packing materials. DANGER Risk of suffocation! Keep any packaging materials away from children – these materials are a potential source of danger, e.g. -
Page 9: Installation
Installation DANGER Risk of electric shock! Disconnect power before installation. NOTICE This product must be mounted onto a structurally sound surface that will support weight of the fixture. - Page 10 Step 1 Prise open the desired knockout plug (4) for the conduit connector (B). Step 2 Loosen the screws and open the cover.
- Page 11 Step 3 Install the conduit connector (B) and secure it with the nut.
- Page 12 Step 4 Attach the metal conduit (5/8") to the conduit connector (B) and secure it by tightening the screws.
- Page 13 Wiring WARNING WARNING Risk of electric shock! To prevent risk of electric shock, turn off the power at the main circuit breaker box before installation. WARNING Risk of electric shock! This product must be connected to a properly grounded electrical system. Never wire the product to a two-wire system that is not grounded.
- Page 14 Step 1 Insert wires* into the open hole of the push-in wire connector. If the product is not linked with another light(s), cut marked 3 wires and seal them with an insulating tape. Phase Neutral Ground 0.2" (5 mm) * Connector Wire Gauge: 14-18 AWG * Connector Wire Type: solid, stranded...
- Page 15 Step 2 Close the cover. Fix the product under the cabinet using the provided 2 screws. Step 3 (optional) To link multiple products together, connect the connecting cable (C) into the jumper connector (1) of each light.
-
Page 16: Operation
CAUTION Risk of fire! Total power of lights connected together: max. 270 W. Operation 1. Adjust the brightness (0/50/100 %) using the brightness selection touch switch (2). 2. Adjust the color temperature (3000/4000/5000 K) by the color temperature selection switch (3). Cleaning and Maintenance WARNING Risk of electric shock! To... -
Page 17: Fcc - Supplier's Declaration Of Conformity
Cleaning • To clean the product, wipe with a soft, slightly moist cloth. • Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product. FCC – Supplier’s Declaration of Conformity Unique Identifier B08441B3D3 - 3-Color Temperature Level and 3-Section Dimming LED Cabinet Light, Linkable, Direct Wire, White Finish, 12-Inch B084411CGP - 3-Color Temperature Level... - Page 18 Responsible Amazon.com Services LLC Party 410 Terry Ave N. U.S. Contact Seattle, WA Information 98109, United States Telephone (206) 266-1000 Number FCC Compliance Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference...
- Page 19 FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 20: Specifications
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. Specifications Rated voltage: 120 VAC, 60 Hz Color rendering index >... - Page 21 B08441B3D3 Model number: (ICA-AM1L400E1) Rated wattage: 6 W Rated luminous flux: 400 lm @ 5000 K Net weight: 1.06 lbs (0.5 kg) Dimensions 12 x 0.98 x 3.31" (W x H x D): (30.5 x 2.5 x 8.4 cm) B084411CGP Model number: (ICA-AM1L600E1) Rated wattage: 8 W...
- Page 22 B084415L9D Model number: (ICA-AM1L800E1) Rated wattage: 11 W Rated luminous flux: 800 lm @ 5000 K Net weight: 1.72 lbs (0.8 kg) Dimensions 24 x 0.98 x 3.31" (W x H x D): (61 x 2.5 x 8.4 cm) B084417MQQ Model number: (ICA-AM1L1100E1) Rated wattage:...
- Page 23 Feedback and Help Love it? Hate it? Let us know with a customer review. AmazonBasics is committed to delivering customer-driven products that live up to your high standards. We encourage you to write a review sharing your experiences with the product.
- Page 24 MADE IN CHINA FABRIQUÉ EN CHINE HECHO EN CHINA V01-05/20...
