Curtis TVD2000A Owner's Manual

Atsc tv/dvd combo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TVD2000A
ATSC TV/DVD COMBO
POWER
TV/AV
Q.VIEW
TV/DTV
1
2
5
6
9 9
0 0
SAP
CH+
VOL
MENU
_
OK
STOP
SETUP
REV
FWD .
D.MENU
PLAY/ENTER
ANGLE
AUDIO
PROGRAM
10+
EXIT
CH.LIST
FAV.LIST
Before operating the unit, please read this manual thoroughly.
TV/DVD OPEN/CLOSE
INFO
MUTE
3
4
7
8
-
CC
P.MODE
VOL
+
S.MODE
CH-
PAUSE/STEP
SUBTITLE
PREV
NEXT
A-B
REPEAT
SLOW
TITLE/PBC SEARCH
ZOOM
D.CALL
ARC
GUIDE
OWNER'S MANUAL
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVD2000A and is the answer not in the manual?

Questions and answers

Related Manuals for Curtis TVD2000A

Summary of Contents for Curtis TVD2000A

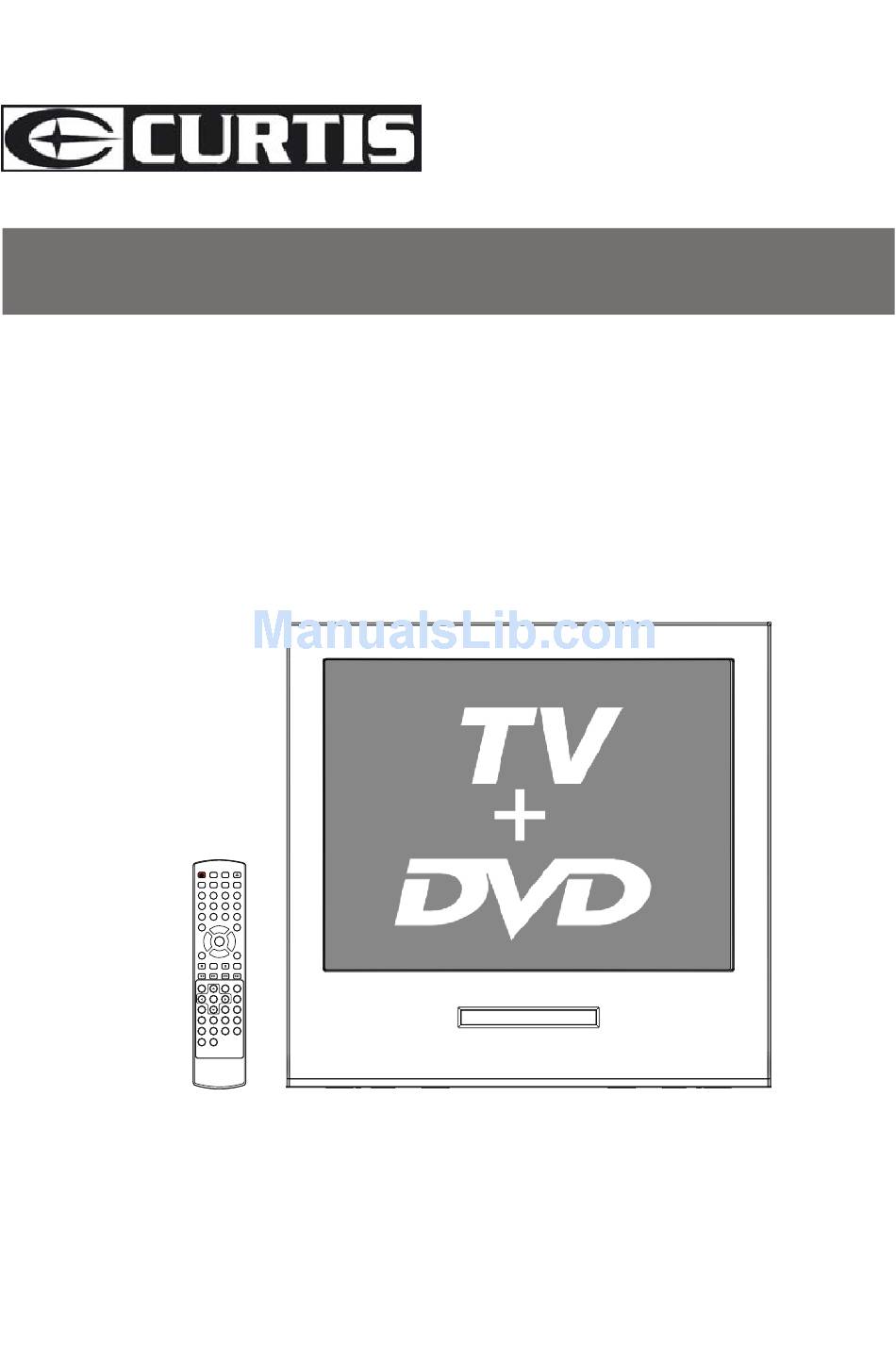

  • Page 1 TVD2000A ATSC TV/DVD COMBO POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU S.MODE STOP SETUP PAUSE/STEP SUBTITLE FWD . PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL GUIDE EXIT CH.LIST FAV.LIST Before operating the unit, please read this manual thoroughly.

  • Page 2: Table Of Contents

    PRECAUTIONS FCC WARNING-This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this e uipment if an unauthorized change or modification is made.

  • Page 3: Important Safeguards

    WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

  • Page 4: Important Safety Instructions

    Important safety Instructions 13. GROUNDING OR POLARIZATION Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
  • Page 5 22. DAMAGE REQUIRING SERVICE Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the unit. c.

  • Page 6: Installation

    Installation Antenna connection If the picture is not clear or is snowy, it is recommended that an External Aerial is used, this is usually mounted outside. twin-lead cable Antenna adapter (Not supplied) 75 coaxial cable Plug (Not supplied) Note: * It is recommended that a 75 ohm coaxial antenna is used to avoid interference.

  • Page 7: Front Panel Of The Tv Set

    Front panel the TV set Video TV/AV/DVD Audio Switching Earphone Video Audio VIDEO L/MONO-AUDIO/R EARPHONE POWER Power Indicator Signal Receiver The DVD Player Play Channel Position Menu the DVD up/down Open/close Volume up/ down the DVD TV/AV/DVD Remote Receiving Switching Window Power Indicator Signal Receiver Power Switch...

  • Page 8: Rear Panel Of The Tv Set

    Parts and functions Rear panel of the TV set Video Y input terminal COAXIAL OUTPUT Video output terminal Audio left channel output terminal Video 1 Remote Receiving Window PLAY/PAUSE STOP OPEN/CLOSE MENU VOL- VOL+ COMPONENT COAXIAL OUTPUT VIDEO1 AUDIO1 Power Button SKIP- SKIP+ Video Cb input terminal...

  • Page 9: Using The Remote Control

    POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE SETUP PAUSE/STEP SUBTITLE STOP PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL Using the Remote Control Buttons on the remote control Power Switch Open/close DVD Tray TV / AV Mode Selection...

  • Page 10: The Other Video And Audio Equipment

    The other video and audio equipment Connections You can connect the DVD,VCR and stereo system to the output to enjoy a higher quality of picture and sound effect. Amplifier To COAXIAL type digital audio input Coaxial cable ANT IN COAXIAL OUT...

  • Page 11: Antenna Connections

    If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV service (CABLE), see the Cable TV connections. Combination VHF/UHF antenna (Single 75 ohm cable or 300 ohm twin-lead wire) RF IN jack 75 ohm...

  • Page 12: Cable Tv Connections

    Cable TV connections This unit has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

  • Page 13: Connections To Other Equipment

    Using the audio/video inputs If you connect the TV to a camcorder or Video Game, you can select different modes by pressing Press TV/AV repeatedly to select the desired mode. "AV1", "AV2" ,"COMPONENT","DVD" or TV channel will display on the screen for 4 seconds, will be displayed on the screen when no signal input.

  • Page 14: Setting The Language And Blue Screen

    Setting the language and blue screen You can choose from three different languages (English, French and Spanish) for the on-screen displays. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE SETUP PAUSE/STEP SUBTITLE STOP PREV NEXT D.MENU REPEAT...

  • Page 15: Channel Menu

    Here describes the case for searching and memorizing channels for DTV/ATV. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE SETUP PAUSE/STEP SUBTITLE STOP PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL AUTO SCAN (DTV/ATV)
  • Page 16 Channel menu POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL SETTING SKIP After the programs are presetting, you can skip some programs so that to select your favorite channels only.

  • Page 17: Channel Selection

    You can select the channel by using either Channel number in each way is shown below. Using Using Same operation is available with of the main unit. POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV Press the Direct Channel selection buttons to select the channel. Antenna Mode Direct Channel Selection When the Antenna/Cable menu option is in the Antenna position, all channels can be instantly selected by using...

  • Page 18: Volume Adjustment

    Volume adjustment POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL This section describes how to adjust the volume when viewing TV.

  • Page 19: Screen Information

    You can display the currently selected channel number or other information such as the audio mode on the screen for checking. In the analog mode, the currently selected channel number and the audio mode are displayed. Display the channel number and the audio mode. The currently selected channel number and the audio mode are displayed at the top right of the screen.

  • Page 20: Video Menu

    Video menu POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL SETTING VIDEO Press MENU button. The main menu screen will appear. Press VOL+/- button to...

  • Page 21: Audio Menu

    SETTING AUDIO Press Press select then press to enter. POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV Press the desired option, then press P.MODE Volume MENU This will adjust the sound output level. SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT...

  • Page 22: Manual Time Setting

    Manual time setting You must set the time manually for ON/OFF Timer. POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL...

  • Page 23: Setting The On/Off Timer

    This feature allows you to have the TV automatically turn on/off at a predetermined time. If you program The ON/OFF TIMER, the TV will turn on/off at the time your predetermined. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST...

  • Page 24: Function Menu

    Function menu POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL SETTING THE NTSC CAPTION This allows you to configure the way you choose to view the captioning.
  • Page 25 An age limitation can be set to forbid children to see and hear violent scenes or pictures for adults, etc. The TV Corresponds to "TV RATING" and "MOVIE RATING". to use the parental control function, you must register a password. POWER TV/AV TV/DVD OPEN/CLOSE...
  • Page 26 Function menu POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL NOTES: If you forget the password, you cannot set the Parent Control.

  • Page 27: Parental Lock

    POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL Parent Control To use the TV after activated. When the program applied to the Parental Control, setting is received, enter the password.
  • Page 28 Function menu POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL TO SET THE MPAA RATING Enter the PARENT CONTROL menu. Press CH+/- button to...

  • Page 29: Closed Caption

    WHAT IS CLOSED CAPTIONING? This television has the capability to decode and display closed captioned television programs. Closed captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV...

  • Page 30: Dtv Setup Menu

    DTV setup menu POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE SETUP PAUSE/STEP SUBTITLE STOP PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL SETTING CLOSED CAPTION MODE In DTV mode Press MENU.
  • Page 31 SETTING THE CC USER SETTING Press Press POWER TV/AV TV/DVD OPEN/CLOSE select then press Q.VIEW INFO MUTE TV/DTV to enter the submenu. Press select P.MODE Press then press MENU to select SLEEP CH.LIST FAV.LIST GUIDE Press et " SETUP PAUSE/STEP SUBTITLE STOP "...
  • Page 32 DTV setup menu POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL SETTING THE DTV CAPTION STYLE(continue) Style Select this option to select the font style of caption display according to your own preference.

  • Page 33: Setting The Time Zone

    SETTING THE DAYLIGHT SAVING Daylight saving time is automatically set by specially broadcasted signals. This menu item allows you to disable the automatic setting of daylight saving time. This is useful if you live in an area or state where daylight saving is not applied, but you receive channels from other areas where daylight POWER TV/AV...
  • Page 34 DTV setup menu POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE STOP SETUP PAUSE/STEP SUBTITLE PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL SETTING ATSC PARENTAL LOCK Press MENU. The main menu screen will appear.

  • Page 35: Other Function

    GUIDE - This activates some, but not all, electronic program guides (EPG data) when it is used and transmitted by some DTV station providers. It is only supported when receiving DTV channels. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE 1.

  • Page 36: Picture Mode

    Other Functions POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU SLEEP CH.LIST FAV.LIST GUIDE SETUP PAUSE/STEP SUBTITLE STOP PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL QUICKLY VIEW This function enables quick swap to the last watched program. Suppose the channel number you used just now is 8 and the channel number you are using is 18 (as shown in the figure).

  • Page 37: Dvd Features

    DVD Features Basic Playback Preparations Preparations Press the DVD/TV button on the remote control or the TV to enter the DVD status. Basic playback Basic playback 1. Press OPEN/CLOSE to open the disc tray, place a disc in the disc tray. There are two different disc sizes.
  • Page 38 DVD Features(Continued) Advanced Playback Advanced Playback Advanced Playback IMPORTANT NOTE: All described functions are for DVD discs. If you play other format discs, the operation and on screen display will be different. SUBTITLE CAPTION Press "SUBTITLE ", the screen will display "SUBTI- TLE 01/XX XXXXX", "01"...

  • Page 39: Special Playback Functions

    Special Playback JPEG DISC PLAYBACK When a disc containing standard JPEG picture files is inserted into the player, a navigation menu will be displayed automatically. Use the UP and DOWN cursor buttons to select a file then press PLAY/ENTER. The slide show will commence. Press PREVIOUS or NEXT to move between pictures.

  • Page 40: Dvd System Setup

    DVD System Setup DVD System Setup General Setup Process 1.Press the SETUP button, the SETUP General Setup Page,Preference Page will be displayed in turn. 2.Press CH+/- b item, then press submenu. PLAY/ENTER 3.Press CH+/- bu to select then press PLAY/ENTER to confirm. 4.Press EXIT key or press SETUP repeatedly to exit the set-up menus.
  • Page 41 DVD System Setup(Continued) DVD System Setup General Setup Page ANGLE MARK: Users can select a particular camera angle when playing a DVD which offers multiple angles. This item allows you to set Angle Mark ON or OFF. On Screen Display (OSD) Language: Users can select on-screen display language.
  • Page 42 DVD System Setup(Continued) DVD System Setup SETUP PLAY/ENTER SETUP PLAY/ENTER NOTE:If you forget your password or a password is accidentally set enter 2881 as the password. This will enable you to regain control. Preference Page The Preference Page is only available when there is no disc in the player.
  • Page 43 DVD System Setup(Continued) DVD System Setup DEFAULT: SETUP (except password and parental lock status) for this DVD player back to the manufacturers original settings. Press ENTER to perform the reset. PLAY/ENTER Resets all settings Note: Some functions may not be available depending on the type of disc. ..Preference Page..

  • Page 44: Playable Discs

    Playable Discs The following discs can be played: You cannot play discs other than those listed above. You cannot play non-standardized discs, even if they may be labelled as above. The performance of CD-R or CD-RW disc depends on the way the disc was burned. In a few cases, their performance may not be consistant or may not even operate at all.

  • Page 45: Disc Protection And Dvd Characteristics

    Disc Protection and DVD Characteristics Compare DVD disc with other discs: Encode Digital/MPEG method Single- Double side -side Capacity single- single layer -layer 4.7G 8.5G Playing Time minutes minutes 12cm/8cm Disc diameter Horizontal More than 500 line resolution Picture Multiple kinds proportion Subtitle Language...

  • Page 46: Troubleshooting Guide

    Troubleshooting guide To assist in location possible faults use help guide below BREAKDOWN PHENOMENON PICTURE Picture with snow Double or Triple Image Disturb Normal No Picture No color Scramble Color Spot Note: 1.If the fault can not be corrected using the above guide consult with your local authorized service center.

  • Page 47: Specifications

    The specifications offered you here are for reference only. With product improvement there may be some differences between the description and the final product. 13 " 14 " 20 " Round 20 " pure Flat NOTE Design and specifications are subject to change without notice. Dimensions quoted in this manual are approximate.
