Summary of Contents for Toa EverAlert DYNAMIC View

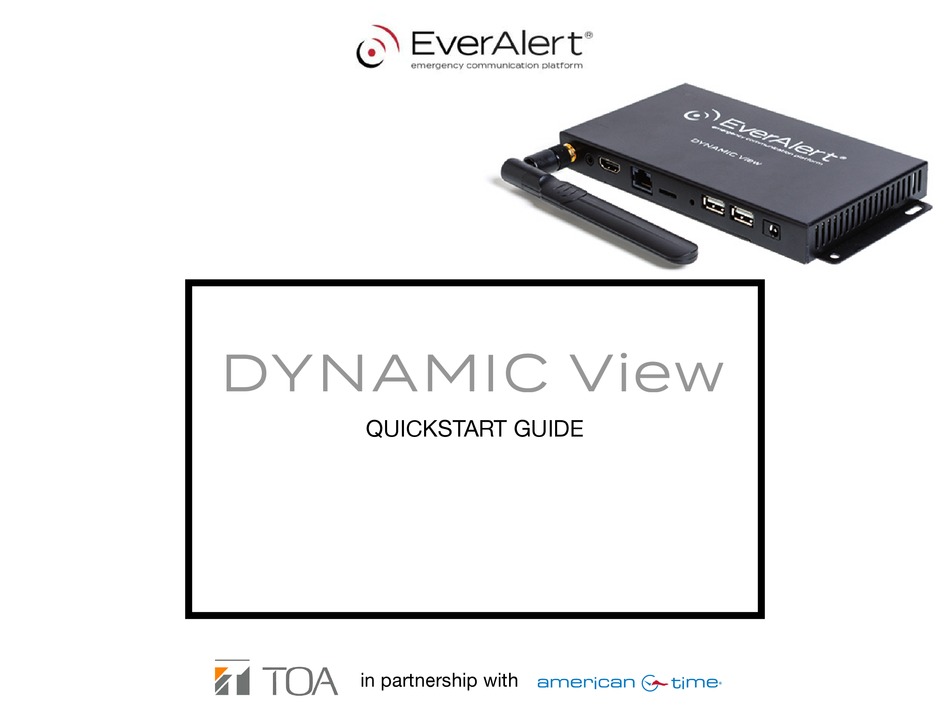

- Page 1 QUICKSTART GUIDE in partnership with...
-
Page 2: Pre-Installation
1. Verify with your IT Staff: • Dynamic Host Con guration Protocol (DHCP) is enabled. Note: Currently, EverAlert Dynamic View does not support static IP address con guration on the Portal. This would need to be manually done though the OS or using DHCP reservations. - Page 3 1. Remove the components from the box. • Save the packing materials in case you need them later. 2. Check the contents • EverAlert Dynamic View Box i. EverAlert Dynamic View ii. 12vdc Power Supply Brick with North American AC power cord iii.
- Page 4 MOUNTING „ 1. Attach the Wi-Fi antenna and hand tighten to desired angle before mounting. QUICKSTART INSTRUCTIONS...
- Page 5 MOUNTING „ Locate the Dynamic View near the TV that will be used to display the content. Most installation applications will mount the Dynamic View directly to the wall, hidden behind the TV. The Dynamic View can also be placed on a shelf or stand if desired. QUICKSTART INSTRUCTIONS...
- Page 6 MOUNTING „ 2. If wall mounting, use a minimum of 2 screws to securely mount the Dynamic View to the wall. Note: Make sure that the HDMI & USB ports are in a position that can be easily accessible for con guration later. 3.
- Page 7 PROVISIONING „ Assigning an EverAlert Dynamic View to the TOAlert Management Portal • There are two simple ways to provision Dynamic View to connect to the TOAlert management portal. i. Option 1 uses a wired LAN cable on a DHCP enabled network with internet access.
- Page 8 PROVISIONING „ 2. If you have more than one Site established, select the Site where you would like to install the Dynamic View by clicking on its name in the list. QUICKSTART INSTRUCTIONS...
- Page 9 PROVISIONING „ 3. Click on Default Con g under Admin > EverAlert Con gs. QUICKSTART INSTRUCTIONS...
- Page 10 PROVISIONING „ 4. Under Network Con guration select the CONNECTION TYPE (Wi-Fi or Ethernet) and make sure the correct wireless credentials have been entered. If they have not been entered yet and the intention is to use Wi-Fi network, enter them now. QUICKSTART INSTRUCTIONS...
- Page 11 PROVISIONING „ 5. Scroll down, and click “Save Only”. Note: If Wi-Fi is preferred, it is OK to use a wired LAN option for initial con guration. A wired LAN will override Wi-Fi if connected to a Dynamic View. QUICKSTART INSTRUCTIONS...
-
Page 12: Con Guration
PROVISIONING „ 6. Con guration OPTION 1 - Con guration using wired LAN on a DHCP Network All Dynamic Views have been precon gured to a speci c Site using their MAC address. i. Make sure the Ethernet cable is plugged into the Dynamic View. Go to Step 7 OPTION 2 - Con guration using USB Key •... - Page 13 PROVISIONING „ 7. Power up the Dynamic View by plugging into an AC wall receptacle. 8. Apply power to the TV and ensure that the correct HDMI port (input/source) is con gured in the TV menu settings. 9. While the device is loading, the Dynamic View software will check its version and automatically download a new version if required.
- Page 14 USB ports on the side of the Dynamic View. Once the key is read, the screen will show “Security Key Found” and update the Wi-Fi credentials on the EverAlert Dynamic View and connect to the Portal. QUICKSTART INSTRUCTIONS...
- Page 15 PROVISIONING „ 13. After the device has established a connection, “Setup Complete”, “Your clock app will restart in a moment.” will appear on screen. 14. The Dynamic View will now load its prede ned default Clock Layout and is ready for use. NOTE: If any image or text appears to be cutoff, the picture size or aspect ratio settings on the tv should be set to auto.
