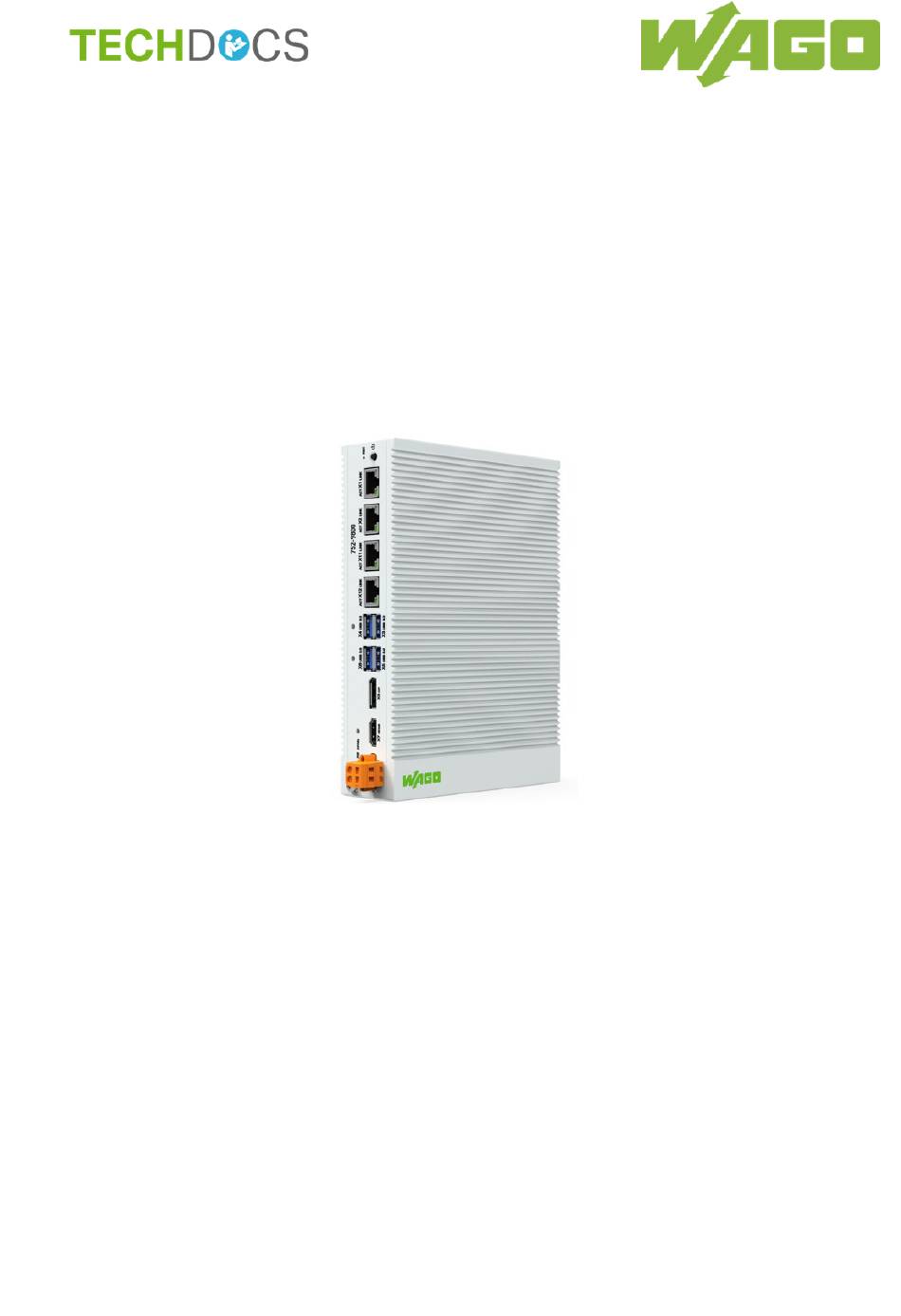

- Page 1 Manual WAGO Edge Computer 752-9800 Version 1.0.0...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Manual Version 1.0.0...
-
Page 3: Table Of Contents
WAGO Edge Computer Table of Contents 752-9800 Table of Contents Regulations ....................5 Validity of this Documentation ..............5 Document portfolio ................... 5 Copyright....................5 Property rights..................6 Symbols ....................8 Number Notation ..................10 Font Conventions ................... 10 Legal Bases ................... 11 1.8.1... - Page 4 10.1 mPCIe Card ................... 41 10.2 2.5” SSD / HDD ..................41 License Agreement .................. 42 11.1 WAGO SOFTWARE LICENSE AGREEMENT ........43 Disposal ..................... 46 12.1 Electrical and electronic equipment ............46 12.2 Packaging ....................46 Appendix ....................48 13.1...
-
Page 5: Regulations
WAGO Edge Computer Regulations 752-9800 Regulations The WAGO product shall only be installed and operated according to the instructions in this documentation. Always retain this documentation! This documentation is part of the product. Therefore, retain the documentation during the entire service life of the product. Pass on the documentation to any subsequent user. -
Page 6: Property Rights
Regulations WAGO Edge Computer 752-9800 Property rights Third-party trademarks are used in this documentation. This section contains the trademarks used. The “®” and “TM” symbols are omitted hereinafter. • Adobe and Acrobat are registered trademarks of Adobe Systems Inc. ®... - Page 7 WAGO Edge Computer Regulations 752-9800 • PROFIBUS is a registered trademark of the PROFIBUS ® Nutzerorganisation e.V. (PNO). • PROFINET is a registered trademark of the PROFIBUS ® Nutzerorganisation e.V. (PNO). • QR Code is a registered trademark of DENSO WAVE INCORPORATED.
-
Page 8: Symbols
Regulations WAGO Edge Computer 752-9800 Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. - Page 9 WAGO Edge Computer Regulations 752-9800 Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Manual Version 1.0.0...
-
Page 10: Number Notation
Regulations WAGO Edge Computer 752-9800 Number Notation Table 1: Number Notation Number Code Example Note Decimal Normal notation Hexadecimal 0x64 C notation Binary '100' In quotation marks, nibble separated '0110.0100' with dots (.) Font Conventions Table 2: Font Conventions Font Type Indicates italic Names of paths and data files are marked in italic-type. -
Page 11: Legal Bases
1.8.3 Intended Use The Edge computer is suitable for use in the area of control and automation. Its use extends industrial areas. Technical data must be observed for all types of applications. The product is an open system and is designed for installation in an additional enclosure. -
Page 12: Obligations Of Installers/Operators
Regulations WAGO Edge Computer 752-9800 WAGO Software License Contract applies to software products and products with integrated software. Both are available at www.wago.com. In particular, the warranty is void if: • The product is improperly used. • The deficiency (hardware and software configurations) is due to special instructions. -
Page 13: Safety Information
WAGO Edge Computer Safety Information 752-9800 Safety Information Safety Advice (Precautions) This section includes an overall summary of the most important safety requirements and notes that are mentioned in each individual section. To protect your health and prevent damage to devices as well, it is imperative to read and carefully follow the safety guidelines. - Page 14 Safety Information WAGO Edge Computer 752-9800 Protect the components against materials having seeping and insulating properties! The components are not resistant to materials having seeping and insulating properties such as: aerosols, silicones and triglycerides (found in some hand creams). If you cannot exclude that such materials will appear in the component environment, then install the components in an enclosure being resistant to the above-mentioned materials.
-
Page 15: Special Use Conditions
• Do not connect control components and control networks to an open network such as the Internet or an office network. WAGO recommends putting control components and control networks behind a firewall. • In the control components (e.g., for CODESYS) close all ports and services not required by your application to minimize the risk of cyber attacks and to enhance cyber security. -
Page 16: Overview
WAGO Edge Computer 752-9800 Overview The Edge Computer is a wireless and fanless automation computer that can handle control, monitoring and communication tasks. The product is suitable for DIN-rail mounting and is characterized by its various interfaces. The product can be used for applications in mechanical and systems engineering, in the processing industry and in building technology. -
Page 17: Properties

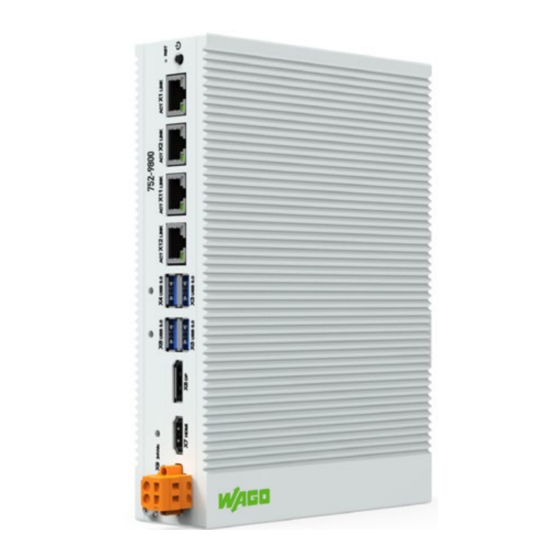

WAGO Edge Computer Properties 752-9800 Properties View Figure 1: Front view The connectors are located on the front. For details, see section “Properties” > “Connectors.” Manual Version 1.0.0... -
Page 18: Labeling
Properties WAGO Edge Computer 752-9800 Labeling The type plate is attached on the bottom side. Table 3: Type Plate Field Example Article number 752-9800 Supply voltage 10 … 36 VDC, 4 A MAC address X1: 00:30:DE:46:F6:A1 X2: 00:30:DE:46:F6:A2 X3: 00:30:DE:46:F6:A3... -
Page 19: Connectors
WAGO Edge Computer Properties 752-9800 Connectors 4.3.1 Connectors on the front Table 4: Connectors on the front Connector Function X1, X2, X11, X12 ETHERNET Interface with LED X3, X4, X5, X6 USB 3.0 Interface HDMI 1.4 Interface DisplayPort 1.2 Interface POWER. -
Page 20: X7" - Hdmi 1.4 Interface Type A
Properties WAGO Edge Computer 752-9800 Table 5: Pin Assignment“ USB 3.0 Interface Description Assignment VBUS Power D– USB 2.0 differential pair USB 2.0 differential pair Ground for power return StdA_SSRX– Super Speed receiver differential pair StdA_SSRX+ Super Speed receiver differential... -
Page 21: X8" Dp 1.2 Interface
Properties 752-9800 4.3.5 “X8” DP 1.2 Interface The DisplayPort interface of the Edge Computer is used to connect a monitor. The maximum resolution is 2560 × 1440 pixels at 60 Hz. Table 1: Pin Assignment DP 1.2 Interface Description ML_Lane 0 (p) -
Page 22: Rtc Battery
Properties WAGO Edge Computer 752-9800 RTC Battery The RTC battery (RTC = Real Time Clock) type BR2032, 3 VDC, is installed internally and not accessible. The RTC battery ensures that the system clock and BIOS settings are retained even after power interruptions. -
Page 23: Display Elements
WAGO Edge Computer Properties 752-9800 Display Elements There are three LEDs at the bottom right on the front of the product. 4.5.1 PWR LED The PWR LED indicates whether the supply voltage is present and whether the product has booted. -
Page 24: Operating Elements
Properties WAGO Edge Computer 752-9800 Operating Elements 4.6.1 ON/OFF Button The ON/OFF button can be used to switch the product on and off. The button can be configured in the BIOS or using a DIP switch SW1 on the motherboard so that the product is automatically switched on when power is available (AT mode). -
Page 25: Schematic Diagram
WAGO Edge Computer Properties 752-9800 Schematic Diagram Figure 2: Circuit Diagram – CPU/Memory side Table 11: Circuit Diagram – CPU/Memory side Legend Position Meaning Internal RTC Battery Connector CN10 Internal GPIO Connector DIMM1 DDR4 Non-ECC SO-DIMM Socket PWR1 Power Button LAN1 …... -
Page 26: Figure 3: Circuit Diagram - Sata/Mpcie Side
Properties WAGO Edge Computer 752-9800 Figure 3: Circuit Diagram – SATA/mPCIe side Table 12: Circuit Diagram – SATA/mPCIe side Legend Position Bedeutung SATA1/SATA2 SATA Connectors CN15 Internal USB 2.0 Connector Clear CMOS: Pin 1 = normal, Pin 3 = clear... -
Page 27: Technical Data
WAGO Edge Computer Properties 752-9800 Technical Data 4.8.1 Device Table 13: Technical Data ‒ Device Housing material Aluminium Dimensions 45 × 200 × 140 mm (width × height × depth) Type of mounting DIN-rail TS35 Weight 1810 g IP degree of protection... -
Page 28: Hardware
Properties WAGO Edge Computer 752-9800 4.8.4 Hardware Table 16: Technical Data ‒ Hardware Processor Intel i7-7600U 2,8 GHz ® (max. 3.90 GHz) External memory extension Full-size mPCIe slot, drive mount for a 2.5” SSD HDD (height: 9.5 mm) Main memory (RAM) 16 GB;... -
Page 29: Connectors
WAGO Edge Computer Properties 752-9800 4.8.8 Connectors Table 20: Technical Data ‒ Connections Hardware Voltage supply Female connector 231-302/107-000, 2 × CAGE CLAMP ® connection cable, max. 3 m to power supply, conductor cross section: 0,08 … 2,5 mm / AWG 28 …... -
Page 30: Approvals
Properties WAGO Edge Computer 752-9800 Approvals The following approvals have been granted to the products: Conformity Marking Ordinary UL62368 Locations Verification per FCC 15 Detailed information regarding approvals Detailed information regarding approvals can be found at: https://www.wago.com <item no.> 4.10... -
Page 31: Functions
WAGO Edge Computer Functions 752-9800 Functions Network Security 5.1.1 Users and Passwords There are several user groups that can be used for different services. A default password is set for all users. We strongly recommend changing these passwords on startup! -
Page 32: Web Protocols For Wbm Access
® After launching putty.exe, “login as:” appears. Enter “root” and press [Enter]. You are prompted to enter the password. Enter “wago” as the default password. You are prompted to assign a “New password:”. Enter a unique password that meets the required level of security and press [Enter]. You are prompted to “Retype password:”. -
Page 33: Mounting
WAGO Edge Computer Mounting 752-9800 Mounting Avoid electrostatic discharge! The devices are equipped with electronic components that may be destroyed by electrostatic discharge when touched. Please observe the safety precautions against electrostatic discharge per IEC 61340-5-1/-3. When handling the devices, please ensure that environmental factors (personnel, work space and packaging) are properly grounded. - Page 34 Mounting WAGO Edge Computer 752-9800 This product is intended for installation in control cabinets or housings complying with UL type 1, type 12 or type 4X. To ensure adequate cooling and a suitable cable route, a free space of 100 mm (3.94 in.) must be available on all sides.
-
Page 35: Connecting
WAGO Edge Computer Connecting 752-9800 Connecting Grounding Grounding is through the grounding screw on the front side. Connecting the Supply Voltage Connect the power supply to connector X9, pin 1(+) and 2(-). Use the included connector (female connector 231-302/107-000). Manual... -
Page 36: Commissioning
Commissioning WAGO Edge Computer 752-9800 Commissioning Press the ON/OFF button on the front. The device boots with the pre-installed operating system. The Interface X1 is set with the default IP 192.168.1.17. The interfaces X2, X11 and X12 are preset to DHCP. -
Page 37: Configuration
3. Enter “https://" in the address line of your Web browser, followed by the IP address of the Edge computer and port number “9090”, e.g., “https://192.168.2.17:9090”. Note that the PC and the Edge computer must be on the same subnet. Manual Version 1.0.0... -
Page 38: Configure Locally With Gui
Commissioning WAGO Edge Computer 752-9800 Figure 6: Cockpit Login Screen You can call up the pages for viewing or editing, depending on your access rights. Access to the pages is as follows: Table 25: Access Rights for the Cockpit Pages... - Page 39 “y”. The graphical user interface for Debian Linux is installed. 4. Reboot the Edge computer with the command “reboot”. The product boots with the graphical user interface. Perform a local configuration ex works in the GUI and with the “edge” user! The system does not allow logging in with the “root”...
-
Page 40: Removal
Removal WAGO Edge Computer 752-9800 Removal Removal from the Rail To remove, pull down the latch. Use a screwdriver or an operating tool for this. Slide the product out at the lower edge of the rail. Figure 7: Removal from the Din-35 rail Manual Version 1.0.0... -
Page 41: System Expansion
WAGO Edge Computer System Expansion 752-9800 System Expansion 10.1 mPCIe Card To install a suitable mPCIe expansion card, e.g., 4G modem, open the housing by loosening the two screws on the left side of the housing. Remove the side panel and insert the expansion card into the open mPCIe slot. Use the included screw for this. -
Page 42: License Agreement
License Agreement WAGO Edge Computer 752-9800 License Agreement The pre-installed Debian operating system and the Cockpit web-based visualization interface are subject to the “GNU General Public License”. For information on the GNU license, see: http://www.gnu.de/documents/gpl-2.0.de.html https://www.gnu.org/licenses/old-licenses/gpl-2.0.html Note the license terms of the individual components, which you can find at: /usr/share/doc/*/copyright. -
Page 43: Wago Software License Agreement
1.1 WAGO grants the User a non-exclusive and - unless otherwise agreed - non transferrable right to use the software provided. 1.2 In the event that WAGO submits a License Key to the User, which unlocks the Software (hereinafter referred to as "License Key"), this License Key must also be installed. - Page 44 WAGO. Price indications are not valid prices, but only calculation aids. The respectively valid prices can be obtained from WAGO upon request. 2.4 The warranty period for the WAGO Software is 1 (one) year, beginning with the date of delivery the WAGO software.
- Page 45 User`s licensed computer. 4.6 Upon request the User will allow WAGO to verify the proper use of the Software, in particular to determine whether the User uses the Software in the context of his acquired licenses.
-
Page 46: Disposal
Disposal WAGO Edge Computer 752-9800 Disposal 12.1 Electrical and electronic equipment Electrical and electronic equipment may not be disposed of with household waste. This also applies to products without this symbol. Electrical and electronic equipment contain materials and substances that can be harmful to the environment and health. - Page 47 WAGO Edge Computer Disposal 752-9800 • Observe national and local regulations for the disposal of packaging. • Dispose of packaging of all types that allows a high level of recovery, reuse and recycling. Improper disposal of packaging can be harmful to the environment and wastes valuable resources.
-
Page 48: Appendix
Appendix WAGO Edge Computer 752-9800 Appendix 13.1 mPCIe Port Table 26: mPCIe Port – Connection Description Explanation WAKE# Open drain active low signal. This signal is used to request that the system return from a sleep/suspended state to service a function-initiated wake event. - Page 49 WAGO Edge Computer Appendix 752-9800 PERp0 PCI Express differential receive pair +1.5 V SMB_CLK PETn0 SMB_DATA SMBus data signal compliant to SMBus 2.0 specification PETp0 USB_D– USB_D+ USB serial data interface compliant to the USB 2.0 specification +3.3 V aux +3.3 V aux...
-
Page 50: List Of Figures
List of Figures WAGO Edge Computer 752-9800 List of Figures Figure 1: Front view ..................... 17 Figure 2: Circuit Diagram – CPU/Memory side ............ 25 Figure 3: Circuit Diagram – SATA/mPCIe side ............ 26 Figure 4: Example for Linux Password .............. 32 ®... -
Page 51: List Of Tables
WAGO Edge Computer List of Tables 752-9800 List of Tables Table 1: Number Notation ..................10 Table 2: Font Conventions ................... 10 Table 3: Type Plate ....................18 Table 4: Connectors on the front ................. 19 Table 5: Pin Assignment“ USB 3.0 Interface ............20 Table 6: Pin Assignment HDMI 1.4 Interface ............ - Page 52 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D - 32385 Minden Hansastraße 27 • D - 32423 Minden Phone: +49 571 887 – 0 Fax: +49 571 887 – 844169 E-Mail: info@wago.com Internet: www.wago.com...
