Summary of Contents for Nexvoo CC520

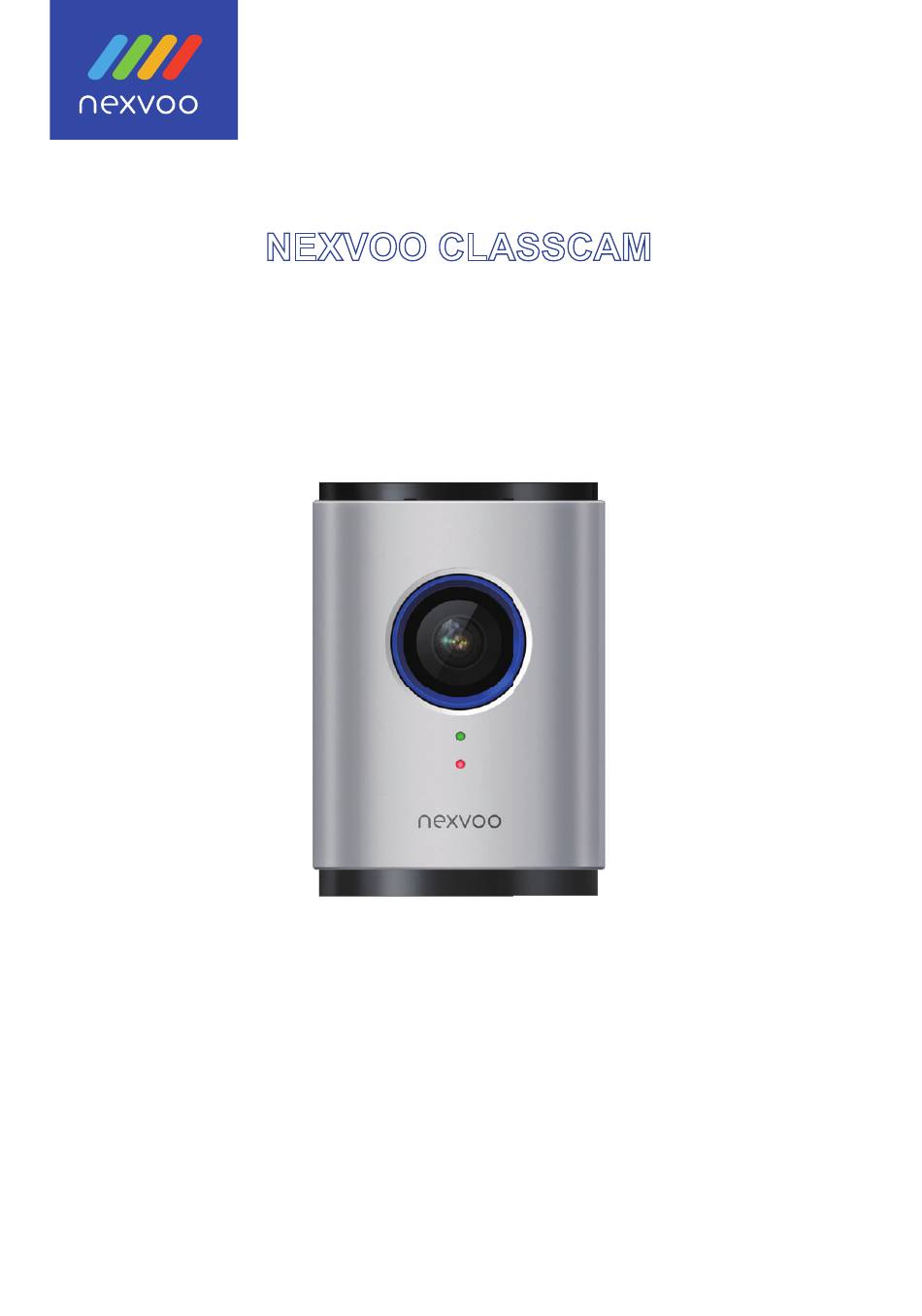

- Page 1 NEXVOO CLASSCAM 4K AI USB Class Camera User Manual (Model: CC520) Version: 1.1...
- Page 2 (12V/1A) 5.9-ft(1.8m) USB cable (Type-C to Type-A) 9.8-ft(3m) NEXVOO ClASSCAM 4K AI USB Class Camera User Manual (Model: CC520) Version: 1.1 Wall mount kit User Manual...
- Page 3 1. The CLASSCAM is equipped with a 4K telephoto camera, giving your virtual learners to see the teacher and a clear whiteboard writing of the classroom, so they will not miss any action. 2. 6mm lens focal length. 3. 4K 30fps Ultra HD video, 4.
- Page 4 8. Mute 9. Preset 2 10. Preset 1 11. Pan and Tit 12. Rotate lens 13. Zoom in 14. Volume up 15. Zoom out 16. Volume down 17. Bluetooth 18. AI Switch Note: Only after AI is turned off, you can adjust the lens angle through the remote control.
- Page 5 Mounting ceiling...
- Page 6 Press the Power button for 1 sec to turn on the device. Or connect the CLASSCAM to the PC/Mac via the supplied USB cable, the device will automatically turn on.
- Page 7 PC/Mac volume ClASSCAM will automatically search remote control’s Bluetooth after power-on. If the remote control is found, CIASSCAM can pair and connect automatically with remote control. If the remote control is not found within 3 minutes, please press any key to make the remote control enter pairing mode again.
- Page 8 The CLASSCAM offers Auto-Tracking Camera which can automatically follow each teacher when recording videos and remained zoom into the whiteboard spaces where they are teaching. Once installed, your teachers will be able to launch their Learning software (Zoom, Teams, Meet, etc.) and let our advanced AI technology do the rest. Give your classrooms a virtual PTZ(Pan, Tilt, Zoom) experience on a budget.
- Page 9 Press and hold the power button for 1 second to turn on the device used external power supply. Always on Plug in the USB cable to automatically turn on the device. The device is searching for the remote control (Blink for Blink slowly 1 minute).
-
Page 10: Web Management
Note: Web management only supports Windows system. Network configuration 1. After ClassCam CC520 is connected to the power supply, it will automatically turn on. The device turns on the AP mode, The SSID of the device’s WIFI is: Nexvoo ClassCam. -
Page 11: View Device Information
View device information You can view the basic information for your ClassCam CC520 USB device through Web Management platform. Procedure 1. Login to the web management platform through a browser. 2. In the Dashboard section, view the basic information for your ClassCam CC520 USB device. - Page 12 Button Name Description The default setting is Off. After Rotate the video is turned on, Rotate the video the video will be rotated 180° vertically. The default setting is Off. After Mirror the video is turned on, Mirror the video the video will be rotated 180°...
-
Page 13: Change Your Password
Update the ClassCam CC520 USB Device You can update the firmware of the ClassCam CC520 USB device through Web Management platform. Procedure 1. Login to the web management platform through a browser. 2. Go to System Settings – System Update. - Page 14 Procedure 1. Open the login interface of the Web management platform. 2. Click Restore Default Settings. 3. Enter the correct SN number of the device. 4. Click OK to restore default settings. Waste packaging, old electronic products, please classify properly...
- Page 15 AI Teaching Technology 109 x 75 x 75 mm (Hx W x D) • Preset zone setting 4.3 x 2.95 x 2.95 inches (H x W x D) • Auto framing for Preset zone • Out of the Preset zone detection •...
