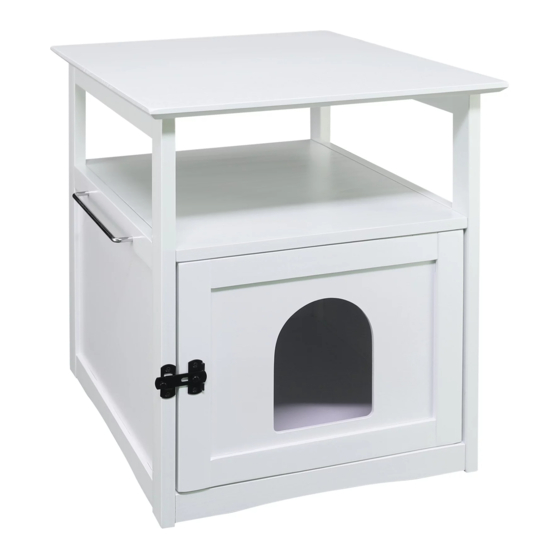

Aristo Wooden Pet House End Table

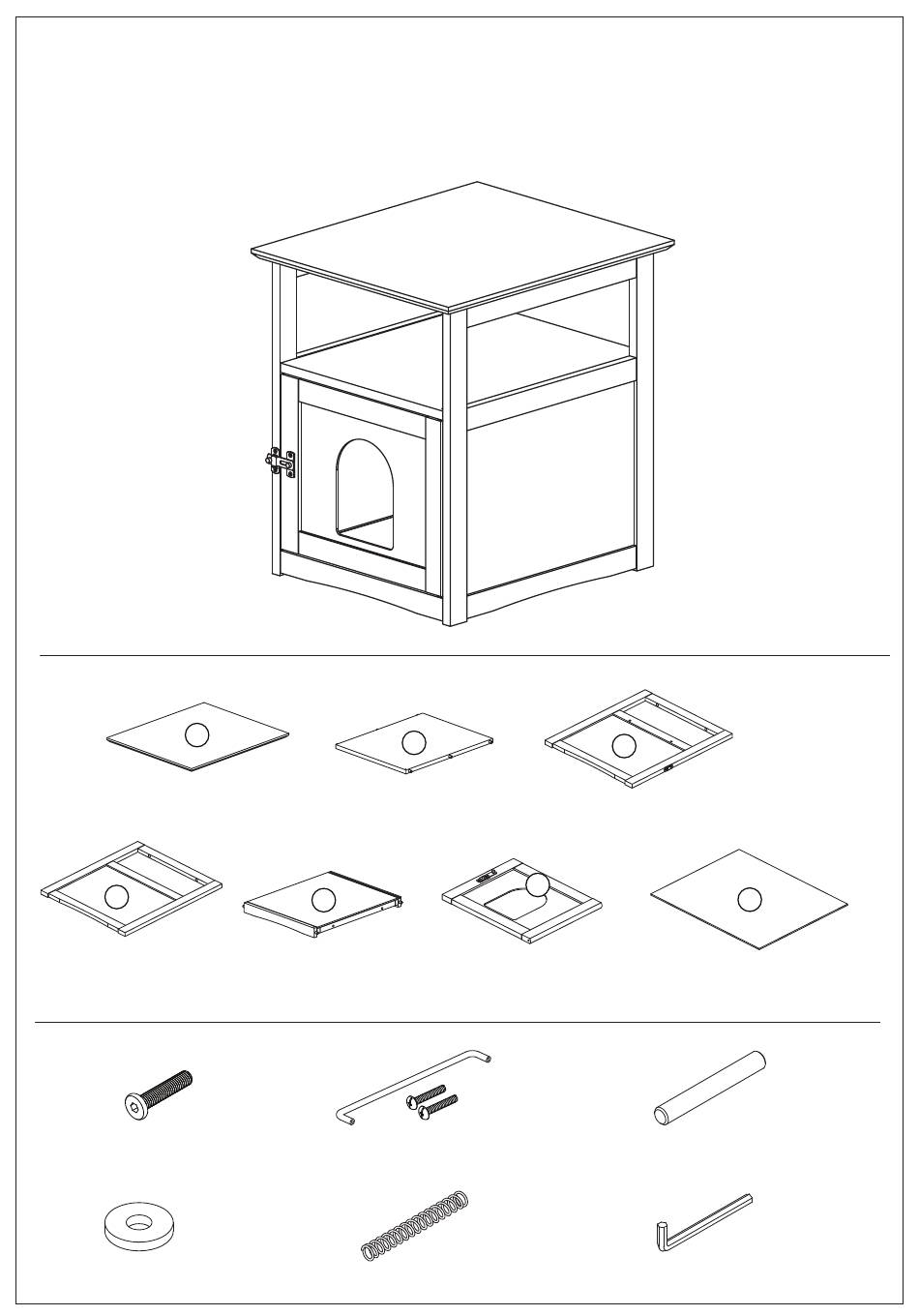

LIST OF WOODEN PARTS
A
A
Top
D
x 1
D
Right Panel
Hardware
x 8
RF10052
Screw JCB M6 x 30
x 2
RF44013
Washer
Assembly Instruction
Item# 608-4X
x 1
B
Shelf
E
x 1
E
Bottom
Metal Handle
RF40002
Spring
B
x 1
F
x 1
F
Door
x 1
RF40258
x 2
C
x 1
C
Left Panel
G
G
Back Panel
x 2
RF40009
Metal Pin
x 1
RF40103
Allen Key
1/4
x 1
Advertisement
Summary of Contents for Aristo 608-4X
- Page 1 Assembly Instruction Item# 608-4X Aristo Wooden Pet House End Table LIST OF WOODEN PARTS Shelf Left Panel Bottom Door Right Panel Back Panel Hardware RF10052 RF40258 RF40009 Screw JCB M6 x 30 Metal Handle Metal Pin RF44013 RF40002 RF40103 Washer...
- Page 2 RF10052 Diagram1. Step 1. Attach Bottom (E) to Right Panel (D) by using Screws (RF10052) as per diagram 1. Diagram2. Step 2. Place the shelf (B) and Back Panel (G) to the unit as per diagram 2.
- Page 3 RF40258 RF10052 Diagram3. Step 3. - Attach the Handle (RF40258) to the Left Panel (C). - Attach Left Panel (C) to the unit by using Screws (RF10052) as per diagram 3. RF10052 Diagram4. Step 4. Upright the unit. Attach Top (A) by using Screws (RF10052) as per diagram 4.
- Page 4 Tip: Carefully hold the pins to prevent it from bouncing Diagram5. RF40002 RF40009 RF44054 Step 5. Place Spring (RF40002), Door Pin (RF40009), and Washer (RF44054) to pre-drilled holes on Door (F) as per diagram. (Tip: Carefully hold the pins to prevent it from bouncing o ). Insert the pin on top of Door (F) to the hole on Shelf (B) rst, then place the pin on bottom of Door (F) to Panel (E).
